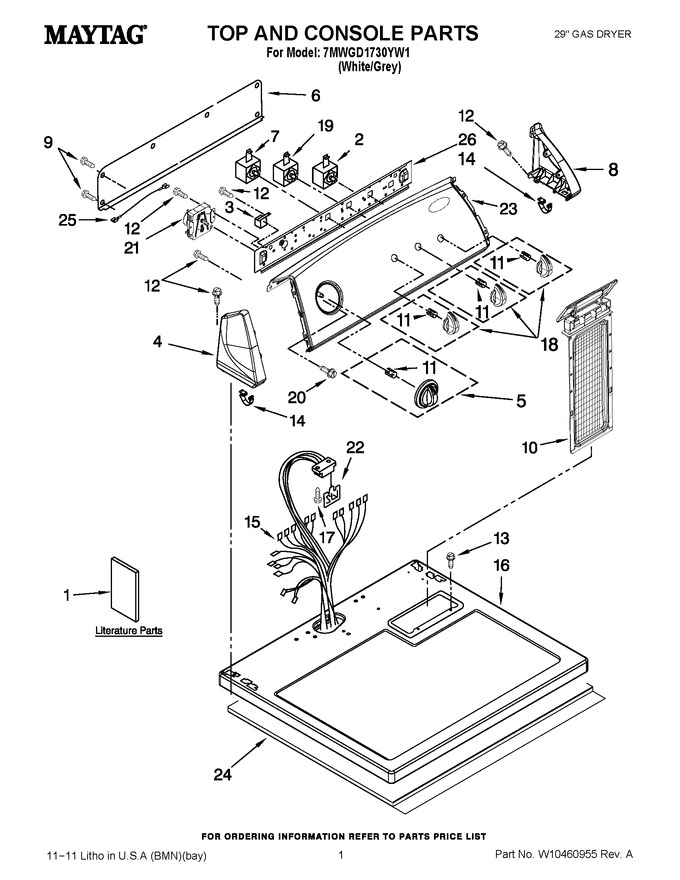

SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10368973 | Use & Care Guide |
|
- | |||||
| 1 | W10118081 | Wiring Diagram |
|
- | |||||
| 1 | W10329763 | Instructions, Installation |
|
- | |||||
| 2 | WPW10117655 | Switch, Push-to-start (Replaces: W10117655) |
|
Immediately | $ 85.60 | ||||
| 3 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 127.67 | |||||
| 4 | WP8565957 | Cap, End (l.h.) (Replaces: 8566035) |
|
$ 61.68 | |||||
| 5 | W10034750 | Knob, Timer Assembly |
|
$ 28.27 | |||||
| 6 | W10103406 | Panel, Rear Console |
|
$ 128.87 | |||||
| 7 | 8530169 | Switch, Temperature |
|
$ 140.06 | |||||
| 8 | WP8565954 | Cap, End (r.h.) (Replaces: 8566032) |
|
$ 62.70 | |||||
| 9 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 10 | W11778253 | Screen, Lint (Replaces: 8557857) |
|
Immediately | $ 52.03 | ||||
| 11 | WP8536939 | Clip Spring (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 12 | WP90767 | Screw, 8-18 X 5/16 (Replaces: 3348629) |
|
Immediately | $ 7.82 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 14 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 15 | 8576542 | Harness, Wiring |
|
- | |||||
| 16 | WP8563663 | Top (Replaces: 8559800) |
|
Immediately | $ 332.62 | ||||
| 17 | W11693756 | Screw, 8-18 X 1/2 (Replaces: 359625) |
|
Immediately | $ 14.06 | ||||
| 18 | W10034380 | Knob, Control (3) |
|
$ 25.06 | |||||
| 19 | WP3405156 | Switch Rotary (twist Mount) (Replaces: 3405156) |
|
$ 145.51 | |||||
| 20 | W10915367 | Screw, Grounding (Replaces: 3400808) |
|
- | |||||
| 21 | WP8566184 | Timer Assembly 60 Hz. (Replaces: 8566184) |
|
Immediately | $ 277.09 | ||||
| 22 | WPW10476828 | Control, Electronic (Replaces: 8558178) |
|
Immediately | $ 314.22 | ||||
| 23 | W10354023 | Panel & Console Assembly |
|
- | |||||
| 24 | W10123956 | Panel, Dampening |
|
- | |||||
| 25 | W10113080 | Jumper, Buzzer |
|
- | |||||
| 26 | 8566052 | Bracket,control |
|
- |
