SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)

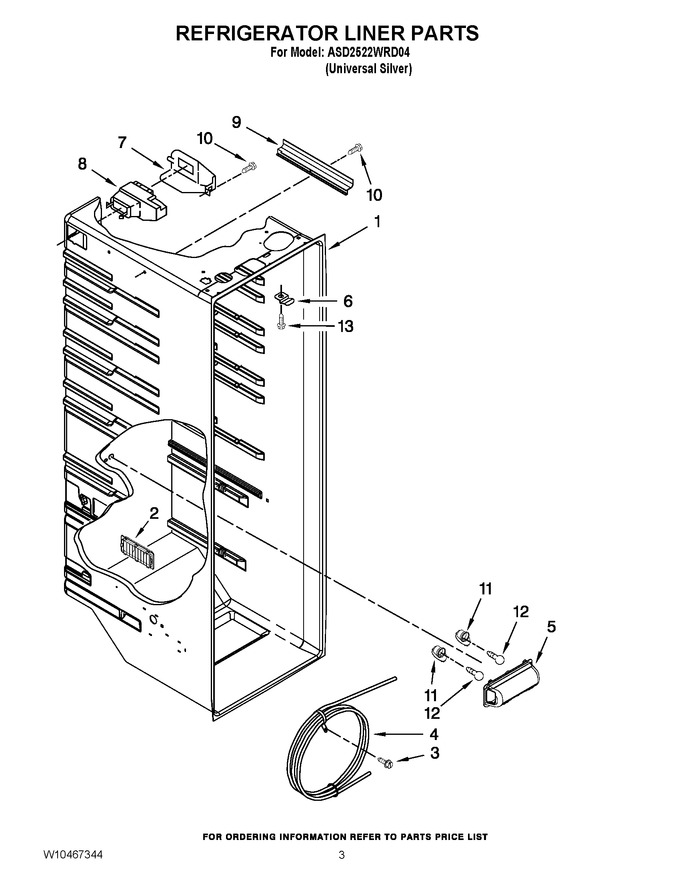

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not Serviced)		Appelez-nous	-
2	2257741		Louver		Appelez-nous	-
3	W10141518		Screw 8-15 X 3/4				$ 8.59
4	WPW10276792		Reservoir Tubing   (Replaces: W10276792)				$ 130.01
5	W11239891		Lens, Light   (Replaces: W10242623)				$ 91.37
6	2152019		Clip, Control Box				$ 81.30
7	WPW10151374		Air Diffuser Cover   (Replaces: W10151374)			Immediately	$ 94.29
8	2150331		Air Diffuser Assy				$ 23.06
9	W10759522		Cover, Conduit   (Replaces: W10004810)				$ 7.42
10	4387478		Screw 8-15 X 3/4   (Replaces: 2162085)			Immediately	$ 104.10
11	W11679940		Socket   (Replaces: W10311505)			Immediately	$ 10.17
12	2311612		Light Bulb		Appelez-nous	-
13	WP488488		Screw 8-18 X 1/2   (Replaces: 489290)				$ 7.67

    View Diagram in Separate Window       Print Part List
