01 - Cover Sheet

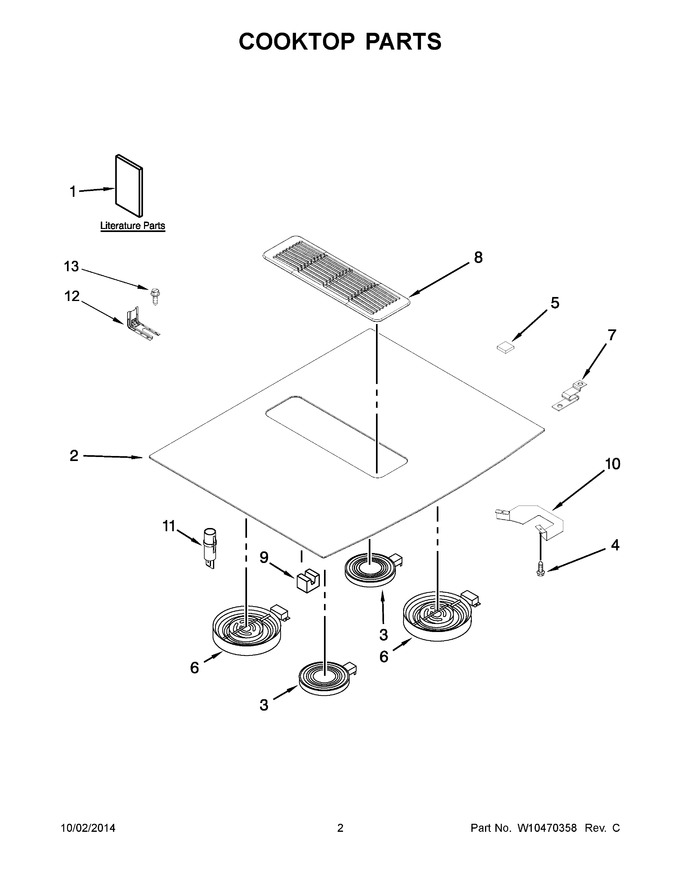

02 - Cooktop Parts


03 - Control Panel Parts


04 - Blower Assembly Parts


05 - Chassis Parts


06 - Internal Oven Parts


07 - Drawer Parts


08 - Door Parts


09 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10430955		Instructions, Intallation		Appelez-nous	-
2	W10239357		Cooktop (black)			Immediately	$ 930.91
3	W11171119		Element (1200w) (left Front & Right Rear)   (Replaces: 8273994)			Immediately	$ 182.23
4	WP7101P498-60		Screw   (Replaces: 7101P498-60)				$ 7.86
5	8010P152-60		Spacer, Rubber		Appelez-nous	-
6	WPW10275049		Element (2500/1200w) (left Rear & Right Front)   (Replaces: W10275049)			Immediately	$ 314.23
7	8004P093-60		Support, Element				$ 10.61
8	7772P050-60		Grill, Air (black)		Appelez-nous	-
9	8255P412-60		Block, Element Support				$ 31.52
10	W10270588		Insulator, Dual Element Bridge		Appelez-nous	-
11	7407P193-60		Light, Indicator				$ 77.76
12	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 6.11
13	WP7101P485-60		Screw, Anti-tip   (Replaces: 7101P485-60)				$ 30.72
1A	W10430926		Guide, Use & Care		Appelez-nous	-
1B	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1C	W10394693		Diagram, Wiring		Appelez-nous	-
2A	W10239360		Cooktop (frosted White)		Appelez-nous	-
8A	7772P040-60		Grill, Air (white)				$ 258.25
