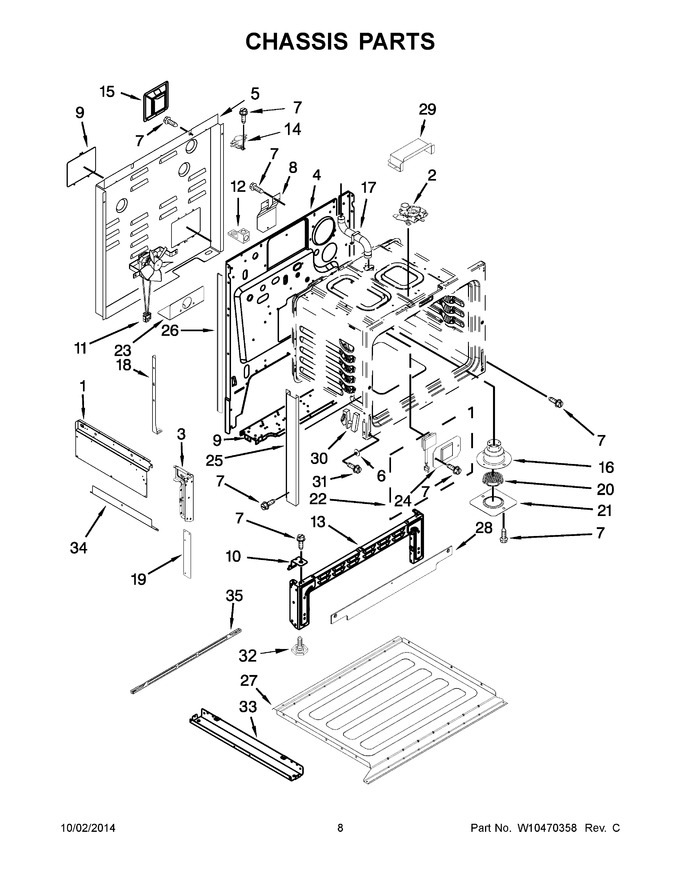

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2618F202-51		Panel, Shield (left)		Appelez-nous	-
2	WPW10274035		Latch, Combo Switch   (Replaces: W10274035)				$ 352.87
3	4020F033-80		Pedestal, Rear (left)				$ 33.86
4	3804F313-51		Back, Main		Appelez-nous	-
5	4005F810-51		Cover, Bottom Wire				$ 248.98
6	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)				$ 8.25
7	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
8	7003P101-60		Insulator, Cord				$ 15.60
9	4005F612-51		Panel, Access				$ 46.13
10	3807F615-51		Support, Oven		Appelez-nous	-
11	WPW10586440		Fan, Cooling   (Replaces: W10586440)				$ 334.53
12	WPW10281322		Block, Bare Wire Adapter   (Replaces: 7401P157-60)				$ 8.87
13	W10271711		Pedestal, Base				$ 144.40
14	74008265		Thermostat, Hi-limit   (Replaces: 7403P856-60)				$ 204.35
15	3804F300-51		Retainer, Insulation				$ 69.39
16	8026P096-60		Tube, Vent Lower		Appelez-nous	-
17	8026P094-60		Tube, Vent Upper		Appelez-nous	-
18	3807F732-51		Support, Oven Rear		Appelez-nous	-
19	3801F929-51		Bracket, Side Panel		Appelez-nous	-
20	8034P008-60		Screen, Smoke Eliminator				$ 25.43
21	3605F344-45		Plate, Smoke Eliminator		Appelez-nous	-
22	7407P180-60		Assembly, Light		Appelez-nous	-
23	3801F911-51		Bracket, Power Supply				$ 9.54
24	4005F684-51		Cover, Light				$ 17.53
25	3608F138-70		Trim, Side (black)				$ 66.28
26	W10183566		Guard, Edge		Appelez-nous	-
27	3804F312-51		Retainer, Insulation		Appelez-nous	-
28	7713P054-60		Trim, Frame		Appelez-nous	-
29	4005F750-51		Cover, Door Lock		Appelez-nous	-
30	74011475		Hinge, Door   (Replaces: 7106P143-60)			Immediately	$ 130.52
31	7101P604-60		Screw		Appelez-nous	-
32	WP74010805		Leg, Leveling   (Replaces: 7101P660-60)				$ 7.55
33	4020W035-80		Pedestal, Bottom				$ 118.46
34	3826F064-51		Extension, Heat Shield		Appelez-nous	-
35	3807F754-45		Support, Element				$ 8.34
1A	2618F206-51		Panel, Shield (right)				$ 135.68
25A	3608F138-71		Trim, Side (white)				$ 34.76
3A	4020F032-80		Pedestal, Rear (right)				$ 33.39
NI	7002P466-60		Insulation, Wrap		Appelez-nous	-
NI	7002P468-60		Insulation, Back				$ 92.98
NI	7002P467-60		Insulation, Oven Bottom		Appelez-nous	-
