SELECT A DIAGRAM

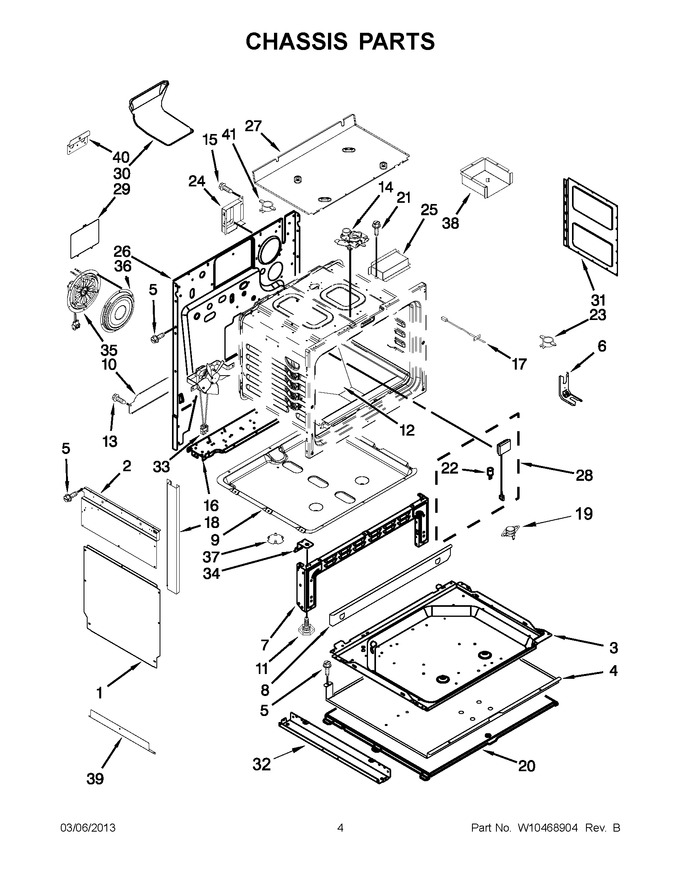

01 - Cooktop Parts


02 - Chassis Parts


03 - Manifold Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3604F416-51		Shield, Lower				$ 59.21
2	2618F201-51		Panel, Shield (left)				$ 32.51
2	2618F206-51		Panel, Shield (right)				$ 135.68
3	3804F245-51		Retainer, Insulation				$ 97.02
4	3604F326-45		Shield, Warming Drawer		Appelez-nous	-
5	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
6	WP3801F656-51		Bracket, Anti Tip   (Replaces: 3801F656-51)			Immediately	$ 6.11
7	W10271711		Pedestal, Base				$ 144.40
8	3601F251-45		Baffle, Oven Front		Appelez-nous	-
9	3401F044-45		Pan, Burner		Appelez-nous	-
10	3826F066-51		Extension, Main Back				$ 7.82
11	WP74010805		Leg, Leveling   (Replaces: 7101P660-60)				$ 7.55
12	WP2205F054-19		Bottom, Oven   (Replaces: 2205F054-19)				$ 774.07
13	WP4159193		Screw   (Replaces: 7101P017-60)				$ 5.07
14	WPW10274035		Latch, Combo Switch   (Replaces: W10274035)				$ 352.87
15	74003975		Screw   (Replaces: 7101P375-60)				$ 14.03
16	3807F640-51		Support, Regulator Valve				$ 31.03
17	12001655		Sensor, Oven   (Replaces: 7430P041-60)			Immediately	$ 45.57
18	3608F138-70		Trim, Door				$ 66.28
19	7403P657-60		Switch, Hi-limit		Appelez-nous	-
20	3604F327-51		Shield, Heat Pouch				$ 71.86
21	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
22	WP74009925		Bulb, Oven   (Replaces: 899138-001)			Immediately	$ 22.63
23	7450P030-60		Switch, Limit			Immediately	$ 101.80
24	4005F810-51		Cover, Bottom Wire				$ 248.98
25	4005F750-51		Cover, Door Lock		Appelez-nous	-
26	3804F313-51		Back, Main		Appelez-nous	-
27	4011F496-51		Bottom, Burner Box		Appelez-nous	-
28	7407P180-60		Assembly, Light		Appelez-nous	-
29	4005F612-51		Panel, Access				$ 46.13
30	8026P095-60		Vent, Gas				$ 60.62
31	3804F300-51		Retainer, Insulation				$ 69.39
32	4020W035-80		Pedestal, Bottom				$ 118.46
33	WPW10586440		Fan, Cooling   (Replaces: W10317679)				$ 334.53
34	3807F727-45		Support, Oven Bottom				$ 18.96
35	W10206590		Fan, Convection				$ 225.55
36	3605F350-19		Cover		Appelez-nous	-
37	7718P034-60		Plug, Hole				$ 14.25
38	4005F808-51		Cover, Burner Box		Appelez-nous	-
39	3826F034-51		Extension, Heat Shield		Appelez-nous	-
40	3807F633-45		Clip, Warming Element		Appelez-nous	-
41	7403P647-60		Switch, Hi-limit				$ 38.13
NI	7002P471-60		Insulation, Oven Wrap		Appelez-nous	-
NI	7002P078-60		Insulation, Drawer/shield		Appelez-nous	-
NI	WP7002P451-60		Insulation, Flue   (Replaces: 7002P451-60)				$ 79.66
NI	7002P445-60		Insulation, Back		Appelez-nous	-
NI	7002P443-60		Insulation, Oven Bottom				$ 41.31
NI	7002P474-60		Insulation, Front Frame		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
