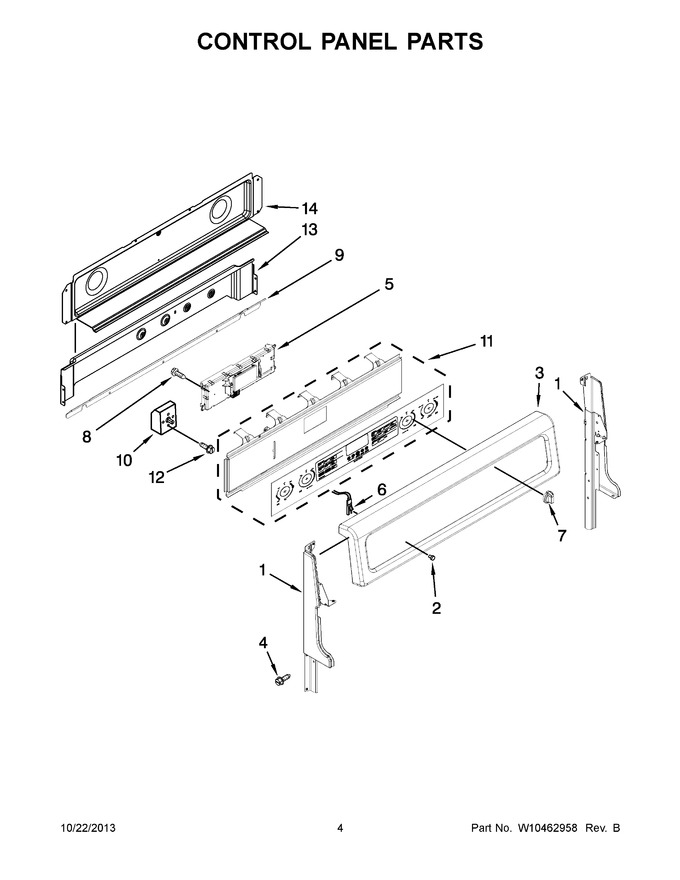

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10319110 | Endcap (white (left Hand)) |
|
$ 91.38 | |||||
| 1 | W10319109 | Endcap (black (left Hand)) |
|
$ 88.42 | |||||
| 1 | W10319111 | Endcap (black (right Hand)) |
|
$ 43.80 | |||||
| 1 | W10319112 | Endcap (white (right Hand)) |
|
$ 89.32 | |||||
| 2 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 3 | W10097310 | Console (stainless) |
|
$ 116.84 | |||||
| 3 | W10097270 | Console (white) |
|
$ 118.50 | |||||
| 3 | W10097280 | Console (black) |
|
$ 119.25 | |||||
| 4 | WP98008545 | Screw (black) (Replaces: 7101P633-60) |
|
$ 17.71 | |||||
| 5 | W10365414 | Electric, Control Mrc2 |
|
$ 367.01 | |||||
| 6 | WP74004153 | Light, Indicator (Replaces: 7407P136-60) |
|
Immediately | $ 8.91 | ||||
| 7 | W10294796 | Knob (black) |
|
$ 20.03 | |||||
| 7 | W10294794 | Knob (white) |
|
$ 20.03 | |||||
| 7 | W10294791 | White (stainless) |
|
$ 43.17 | |||||
| 8 | WP74003976 | Screw (Replaces: 7101P500-60) |
|
$ 7.19 | |||||
| 9 | WPW10299338 | Shield, Wire Cover (Replaces: W10299338) |
|
$ 92.00 | |||||
| 10 | WPW10441696 | Switch, Infinite (left Front, Left Rear) (Replaces: W10441696) |
|
Immediately | $ 112.10 | ||||
| 10 | WPW10295048 | Switch, Infinite (right Rear) (Replaces: W10295048) |
|
Immediately | $ 152.33 | ||||
| 10 | WP7403P238-60 | Switch, Infinite (right Front) (Replaces: 7403P373-60) |
|
Immediately | $ 64.20 | ||||
| 11 | W10321786 | Assembly, Membrane (including Bracket) (white) |
|
- | |||||
| 11 | W10321784 | Assembly, Membrane (including Bracket) (stainless) |
|
- | |||||
| 11 | W10321785 | Assembly, Membrane (including Bracket) (black) |
|
- | |||||
| 12 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 6.95 | ||||
| 13 | W10278697 | Shield, Vent |
|
Immediately | $ 174.60 | ||||
| 14 | W10296773 | Cover, Backguard |
|
$ 185.26 |
