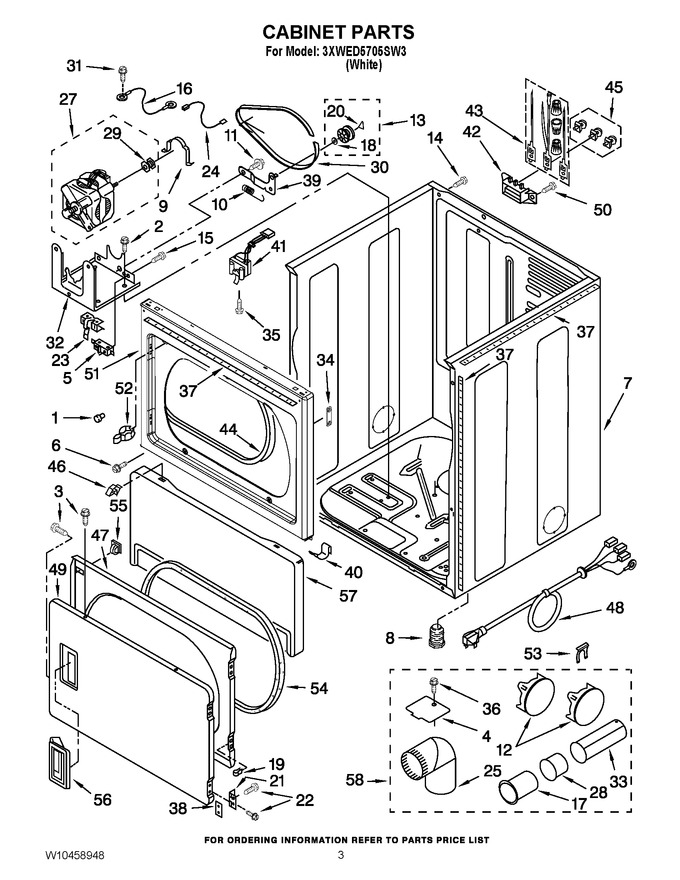

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	693152		Bumper				$ 11.51
2	W11808444		Screw, 8-32 X 5/16   (Replaces: 98139)		Appelez-nous	-
3	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 8.25
4	WPW10354249		Plate, Cover   (Replaces: W10354249)				$ 9.41
5	WP8318457		Switch, Broken Belt   (Replaces: 8318457)				$ 44.19
6	W10891954		Screw, 8-18 X 3/8   (Replaces: 8281212)		Appelez-nous	-
7	W11417441		Cabinet   (Replaces: 8310656)				$ 440.17
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 8.22
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 25.80
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.62
12	WPW10404617		Plug, Multivent   (Replaces: W10404617)				$ 75.58
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	W10850756		Screw Ground   (Replaces: 8533974)				$ 8.20
15	3400934		Screw, 6-20 X 1 1/16		Appelez-nous	-
16	340025		Wire, Ground		Appelez-nous	-
17	WP8563747		Exhaust Pipe   (Replaces: 8563747)				$ 95.95
18	WPW10121334		Washer, Thrust   (Replaces: W10121334)			Immediately	$ 7.55
19	3389249		Nut, Inner Door		Appelez-nous	-
20	WPW10512946		Tri Ring   (Replaces: 690997)			Immediately	$ 9.68
21	WPW10279703		Hinge & Pin Assembly   (Replaces: W10279703)				$ 75.83
22	WP488627		Screw, 8-18 X 1/2   (Replaces: 342055)				$ 8.11
23	WP8066120		Lever, Snap Switch   (Replaces: 8066120)			Immediately	$ 34.77
24	3394081		Wire, Belt Switch				$ 37.57
25	WPW10416072		4`` - 90° Elbow   (Replaces: 49026)				$ 28.16
27	W10416573		Motor, Assembly 50 Hz.   (Replaces: W10289661)				$ 250.80
28	WPW10331278		Exhaust Pipe (short)   (Replaces: W10331278)				$ 82.90
29	3402548		Pulley 50 Hz.		Appelez-nous	-
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
31	3400097		Screw, 10-24 X 3/8		Appelez-nous	-
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 140.27
33	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 93.24
34	W10191265		Plug, Hinge Screw				$ 46.49
35	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 8.57
36	WP693995		Screw, 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
37	WP8318396A		Seal, Foam   (Replaces: 8318396)				$ 39.71
38	WP3390902		Clip, Door Hinge   (Replaces: 3390902)				$ 11.67
39	W10837240		Idler Bracket   (Replaces: 3388674)			Immediately	$ 35.78
40	WPW10291934		Clip   (Replaces: W10291934)				$ 8.14
41	WPW10237959		Door Switch Assembly   (Replaces: W10237959)			Immediately	$ 62.63
42	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 24.17
43	279318		Terminal, Brass & Tinned Includes Illus. 45			Immediately	$ 106.04
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	279393		Terminal Block Screw Kit ( For Terminal Block)			Immediately	$ 55.66
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
47	280083		Door, Rear   (Replaces: 3392563)				$ 301.37
48	W10111542		Cord, Power		Appelez-nous	-
49	W11663440		Door, Front   (Replaces: 3387872)				$ 272.34
50	WP308685		Screw, 10-16 X 1/2   (Replaces: 3393008)			Immediately	$ 7.87
51	W10193554		Upper Front Panel		Appelez-nous	-
52	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
53	W11712577		Clip, Strain Relief   (Replaces: 694415)			Immediately	$ 7.77
54	WP3390735		Seal, Door   (Replaces: 3390735)				$ 137.13
55	279570		Catch, Door Assembly   (Replaces: 3392538)			Immediately	$ 8.89
56	3389522		Handle, Door				$ 81.80
57	WP3406797		Toe, Panel (includes Illus. 1)   (Replaces: 697215)				$ 250.25
NI	49621		Foot - Optional (extended Length Package Of 2 (not Included)   (Replaces: 279810)			Immediately	$ 8.55
NI	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (midnight Grey)   (Replaces: W10186596)			Immediately	$ 85.28
