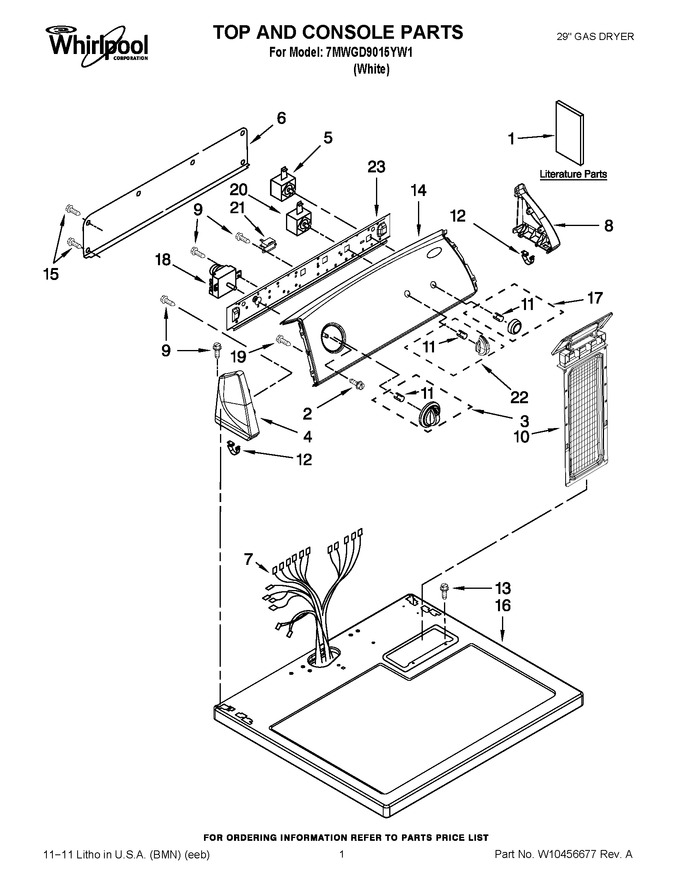

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10336852 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8564241		Installation Instructions		Appelez-nous	-
1	8565897		Use & Care Guide		Appelez-nous	-
1	W10383508		Sheet, Cycle Feature		Appelez-nous	-
1	W10185985		Wiring Diagram		Appelez-nous	-
2	WP3390631		Screw, Grounding   (Replaces: 3390631)				$ 8.25
3	8566061		Knob, Timer Assembly				$ 26.93
4	WP8565957		Cap, End (l.h.)   (Replaces: 8566035)				$ 64.76
5	WP3398095		Switch, Push-to-start   (Replaces: 3398095)			Immediately	$ 92.88
6	W10103406		Panel, Rear Console				$ 135.31
7	W10186122		Harness, Wiring		Appelez-nous	-
8	WP8565954		Cap, End (r.h.)   (Replaces: 8566032)				$ 65.84
9	WP90767		Screw, 8-18 X .375   (Replaces: 3348629)			Immediately	$ 8.25
10	W11778253		Lint Screen   (Replaces: 8557857)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP8312709		Clip-console   (Replaces: 8312709)			Immediately	$ 16.35
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	W10370400		Control Panel & Bracket Assembly		Appelez-nous	-
15	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
16	WP8563663		Top   (Replaces: 8559800)			Immediately	$ 349.25
17	WP8566073		Knob, Push-to-start   (Replaces: 8566073)				$ 58.00
18	WPW10185981		Timer Assembly 60 Hz.   (Replaces: W10185981)				$ 346.09
19	W10915367		Screw, 8-18 X .313   (Replaces: 3400808)		Appelez-nous	-
20	WP3399639		Switch, Rotary   (Replaces: 3399639)				$ 131.16
21	WP694419		Mini Buzzer   (Replaces: 694419)				$ 134.05
22	8565944		Control Knob				$ 25.10
23	8566052		Bracket, Control		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
