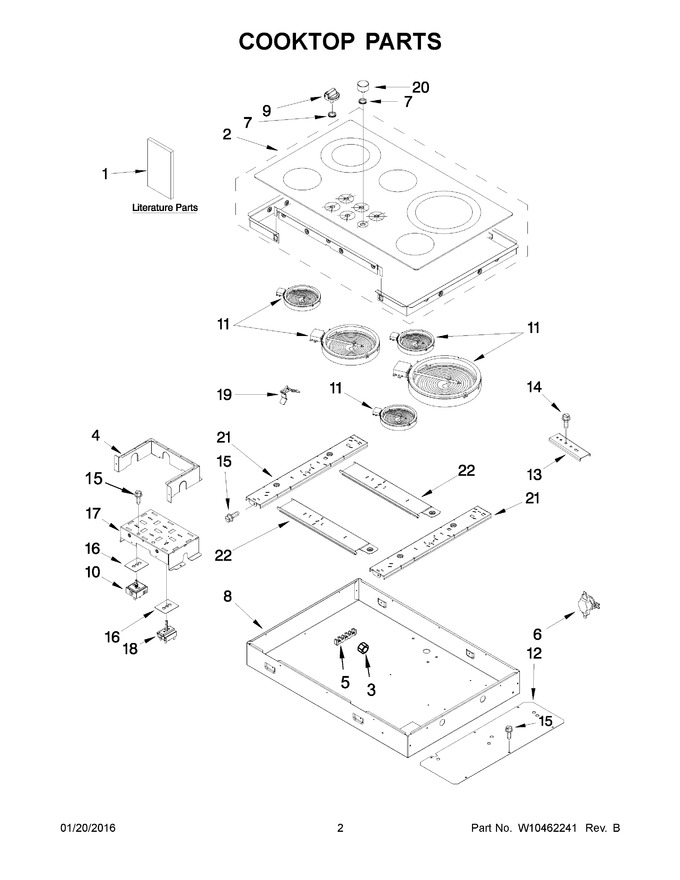

02 - Cooktop Parts
03 - Optional Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10353374 | Installation Instructions |
|
- | |||||
| 2 | W10365141 | Cooktop (black) (Replaces: W10566704) |
|
$ 602.99 | |||||
| 3 | WP3400029 | Nut (Replaces: 3400029) |
|
Immediately | $ 8.19 | ||||
| 4 | W10311897 | Sheild, Outer |
|
- | |||||
| 5 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) |
|
Immediately | $ 35.17 | ||||
| 6 | W10464566 | Switch, Tod High Limit |
|
Immediately | $ 195.77 | ||||
| 7 | WPW10293874 | Grommet, Infinite Switch (black) (Replaces: W10293874) |
|
Immediately | $ 8.46 | ||||
| 8 | W10421512 | Box, Burner |
|
- | |||||
| 9 | WPW10316662 | Knob, Control (black) (Replaces: W10316662) |
|
Immediately | $ 22.25 | ||||
| 10 | WPW10326246 | Switch, Infinite (left Front) (Replaces: W10326246) |
|
$ 153.02 | |||||
| 11 | W11171119 | Element (1200w) (left Front & Right Front) (Replaces: 8273994) |
|
Immediately | $ 225.62 | ||||
| 12 | W10312152 | Plate, Bottom |
|
- | |||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 92.86 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 7.55 | |||||
| 15 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 16 | 3183956 | Seal, Switch Cover |
|
$ 48.77 | |||||
| 17 | W11215839 | Plate, Switch (Replaces: W10291159) |
|
- | |||||
| 18 | WP9762441 | Switch, Rotary (accusimmer) (Replaces: 9762441) |
|
$ 154.95 | |||||
| 19 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 20 | WPW10316815 | Knob, Accusimmer (black) (Replaces: W10316815) |
|
Immediately | $ 16.54 | ||||
| 21 | W10311788 | Rail, Vertical |
|
- | |||||
| 22 | W10311793 | Rail, Horizontal |
|
- | |||||
| 10A | WPW10434447 | Switch, Infinite (left Rear) (Replaces: W10434447) |
|
$ 148.77 | |||||
| 10B | WP74007840 | Switch, Infinite (right Front) (Replaces: 7403P755-60) |
|
Immediately | $ 190.46 | ||||
| 10C | WPW10312185 | Switch, Infinite (right Rear) (Replaces: W10312185) |
|
Immediately | $ 154.38 | ||||
| 10D | W11106342 | Switch, Infinite (center) (Replaces: W10312186) |
|
$ 142.76 | |||||
| 11A | WPW10189281 | Element (3000w) (right Rear) (Replaces: W10189281) |
|
Immediately | $ 377.54 | ||||
| 11B | WPW10275049 | Element (2500/1200w) (left Rear) (Replaces: W10275049) |
|
Immediately | $ 347.53 | ||||
| 11C | WPW10245539 | Element (100w) (center) (Replaces: W10245539) |
|
$ 152.59 | |||||
| 1A | W10346696 | Use & Care Guide |
|
- | |||||
| 1B | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1C | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 20A | W10318662 | Knob, Accusimmer (white) |
|
$ 69.94 | |||||
| 20B | W11213837 | Knob, Accusimmer (stainless) (Replaces: W10316816) |
|
Immediately | $ 73.04 | ||||
| 2A | W10566705 | Cooktop (white) |
|
- | |||||
| 2B | W10365143 | Cooktop (stainless) (Replaces: W10569089) |
|
$ 644.28 | |||||
| 7A | W10372006 | Grommet, Infinite Switch (grey) |
|
- | |||||
| 9A | W10859325 | Knob, Control (white) (Replaces: W10316663) |
|
$ 20.59 | |||||
| 9B | WPW10316664 | Knob, Control (stainless) (Replaces: W10316664) |
|
Immediately | $ 26.72 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10434719 | Harness, Main |
|
- | |||||
| NI | W11190476 | Harness, Light (Replaces: W10257163) |
|
Immediately | $ 203.53 | ||||
| NI | W10291385 | Conduit |
|
$ 127.00 | |||||
| NI | W10316660 | Gasket |
|
$ 109.46 | |||||
| NI | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 12.05 | |||||
| NI | 8008P068-60 | Grommet, Wire |
|
$ 16.79 |
