01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts

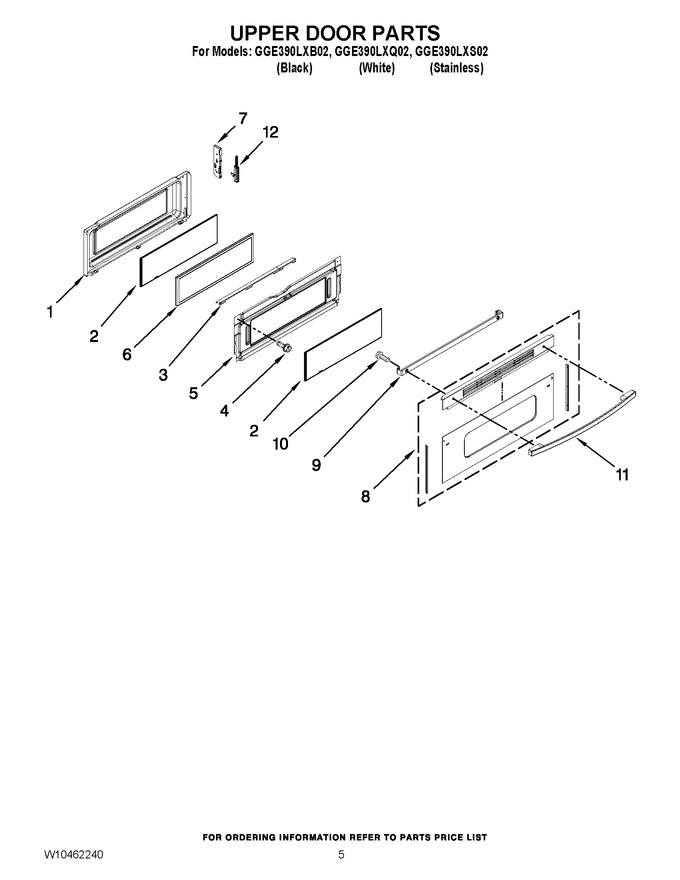

04 - Upper Door Parts
05 - Lower Door Parts
06 - Internal Oven Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10206315 | Lining, Door |
|
- | |||||
| 2 | W11132120 | Glass, Inner (2) (Replaces: W10272707) |
|
$ 179.33 | |||||
| 3 | WPW10272708 | Frame, Glass (Replaces: W10272708) |
|
$ 171.93 | |||||
| 4 | WPW10292297 | Screw W/washer (Replaces: W10292297) |
|
Immediately | $ 7.55 | ||||
| 5 | W10340589 | Retainer, Insul. |
|
$ 105.40 | |||||
| 6 | WPW10321271 | Insulation, Door (Replaces: W10321271) |
|
$ 99.18 | |||||
| 7 | W10647259 | Receiver (Replaces: W10277006) |
|
Immediately | $ 9.32 | ||||
| 8 | W10323327 | Glass, Door (stainless (stainless Incl. Lh & Rh Trim)) |
|
- | |||||
| 8 | W10354941 | Glass, Door (white) |
|
- | |||||
| 8 | W10354942 | Glass, Door (black) |
|
- | |||||
| 9 | W10817434 | Bracket, Handle (white) (Replaces: W10323588) |
|
Immediately | $ 234.82 | ||||
| 9 | WPW10144883 | Bracket, Handle (stainless) (Replaces: W10144883) |
|
$ 252.66 | |||||
| 9 | WPW10323589 | Bracket, Handle (black) (Replaces: W10323589) |
|
Immediately | $ 238.78 | ||||
| 10 | WPW10317886 | Screw, Handle (Replaces: W10317886) |
|
Immediately | $ 8.20 | ||||
| 11 | N/P | Handle, Door |
|
- | |||||
| 12 | W10335429 | Hinge, Door (right) |
|
$ 35.72 | |||||
| 12 | W10335430 | Hinge, Door (left) |
|
$ 36.18 |
