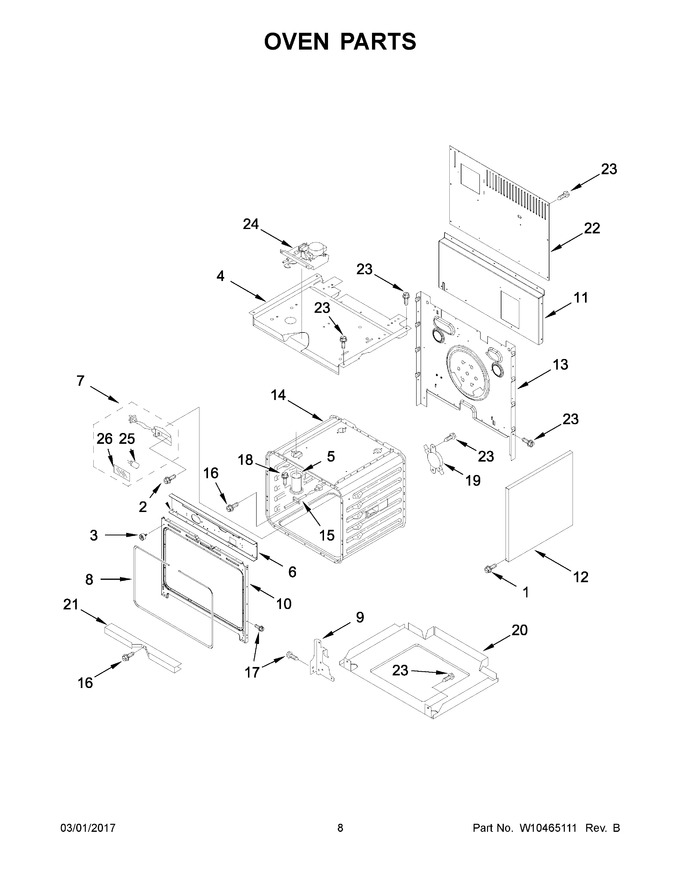

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10292297 | Screw (Replaces: W10292297) |
|
Immediately | $ 7.55 | ||||
| 2 | 4449748 | Screw |
|
$ 14.23 | |||||
| 3 | W10105790 | Bumper & Screw |
|
$ 7.41 | |||||
| 4 | W10267897 | Chassis, Top |
|
- | |||||
| 5 | W10288061 | Tube, Vent |
|
$ 115.94 | |||||
| 6 | W10269194 | Support, Channel |
|
- | |||||
| 7 | WPW10307114 | Assembly, Oven Light (Replaces: W10307114) |
|
Immediately | $ 116.01 | ||||
| 8 | W11675844 | Gasket, Oven (30") (Replaces: W10850858) |
|
Immediately | $ 74.56 | ||||
| 9 | WP4455605 | Receiver, Hinge (left) (Replaces: 4455605) |
|
Immediately | $ 127.70 | ||||
| 10 | WPW10115831 | Frame, Front (Replaces: W10115831) |
|
$ 351.89 | |||||
| 11 | W10145399 | Panel, Back Bottom |
|
- | |||||
| 12 | W10269206 | Chassis, Side (left) |
|
$ 235.28 | |||||
| 13 | W10235550 | Back, Chassis |
|
- | |||||
| 15 | WPW10131825 | Sensor (Replaces: W10131825) |
|
Immediately | $ 95.83 | ||||
| 16 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 17 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 18 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 19 | WP4449751 | Thermostat (tod) (Replaces: 4449751) |
|
Immediately | $ 111.84 | ||||
| 20 | W10235537 | Bottom, Chassis |
|
- | |||||
| 21 | W11368870 | Retainer, Gasket (30") (Replaces: W10157511) |
|
$ 24.91 | |||||
| 22 | W10269207 | Panel, Back Top |
|
- | |||||
| 23 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 24 | W11029221 | Latch, Motorized (Replaces: W10830016) |
|
Immediately | $ 327.65 | ||||
| 25 | WPW10169757 | Bulb, Light (Replaces: W10169757) |
|
Immediately | $ 47.38 | ||||
| 26 | W10169756 | Lens, Light |
|
$ 42.19 | |||||
| 12A | W10269205 | Chassis, Side (right) |
|
$ 235.53 | |||||
| 9A | WP4455606 | Receiver, Hinge (right) (Replaces: 4455606) |
|
Immediately | $ 131.74 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10160806 | Insulation, Back, 30 |
|
- | |||||
| NI | W11684730 | Insulation, Wrap (Replaces: 4449316) |
|
$ 124.85 | |||||
| NI | WP3400968 | Nut (Replaces: 3400968) |
|
Immediately | $ 8.36 |
