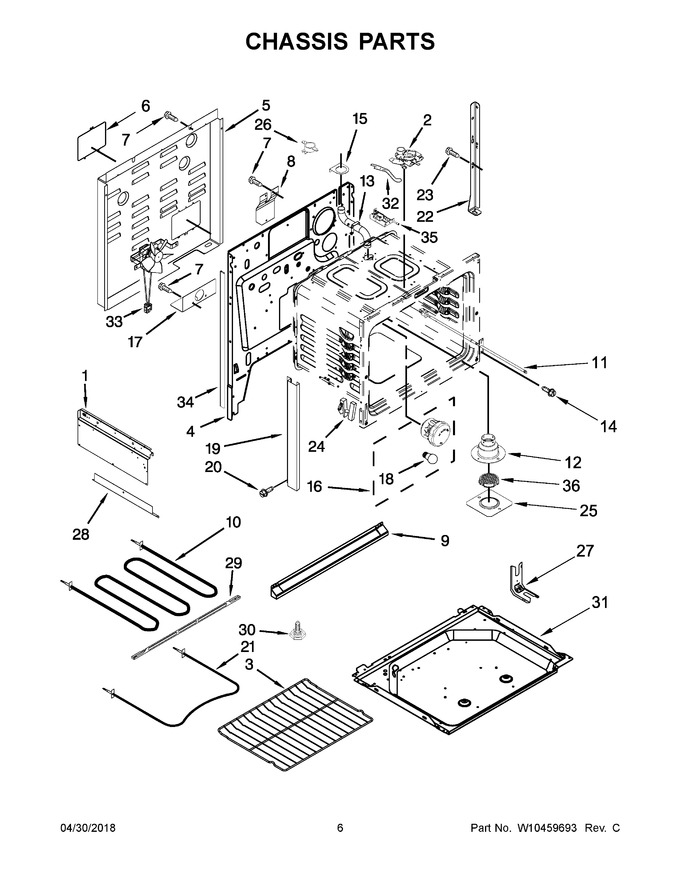

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2618F201-51		Panel, Shield (left)				$ 32.51
2	8002P093-60		Assembly, Latch		Appelez-nous	-
3	WPW10282492		Rack, Oven   (Replaces: W10282492)			Immediately	$ 72.39
4	3804F313-51		Back, Main		Appelez-nous	-
5	4005F810-51		Cover, Bottom Wire				$ 248.98
6	4005F612-51		Cover, Terminal				$ 46.13
7	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
8	7003P101-60		Insulator, Cord				$ 15.60
9	3604W156-70		Shield, Vent Lower (black)		Appelez-nous	-
10	WP7406P218-60		Element, Broil   (Replaces: 7406P218-60)			Immediately	$ 177.66
11	12001656		Sensor, Oven   (Replaces: 7430P042-60)			Immediately	$ 43.94
12	8026P096-60		Tube, Vent Lower		Appelez-nous	-
13	8026P085-60		Vent Tube		Appelez-nous	-
14	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
15	3605F345-51		Holder, Vent Tube				$ 7.82
16	WP7407P182-60		Assembly, Light   (Replaces: 7407P182-60)			Immediately	$ 73.44
17	W10190166		Bracket, Power Supply				$ 9.70
18	8009		Bulb, Light   (Replaces: 7407P103-60)			Immediately	$ 18.67
19	3608F130-70		Trim, Side (black (left))		Appelez-nous	-
20	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
21	WPW10310274		Element, Bake   (Replaces: W10310274)			Immediately	$ 120.66
22	3807F732-51		Support, Oven Rear		Appelez-nous	-
23	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
24	74011142		Hinge, Door   (Replaces: 7106P141-60)			Immediately	$ 120.24
25	3605F344-45		Plate, Smoke Eliminator		Appelez-nous	-
26	WP7450P034-60		Switch, Hi-limit   (Replaces: 7450P034-60)				$ 228.46
27	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 6.11
28	3826F064-51		Extension, Heat Shield		Appelez-nous	-
29	3807F494-45		Support, Broil Element		Appelez-nous	-
30	W11665456		Foot, Leveler   (Replaces: 7101P507-60)			Immediately	$ 29.52
31	4003F067-51		Retainer, Bottom		Appelez-nous	-
32	8009P031-60		Lever, Lock Arm (black)				$ 6.00
33	WPW10586440		Fan, Cooling   (Replaces: W10317679)				$ 334.53
34	W10183566		Guard, Edge		Appelez-nous	-
35	WP7450P108-60		Assembly, Switch   (Replaces: 7450P108-60)			Immediately	$ 161.28
36	8034P008-60		Screen, Smoke Eliminator				$ 25.43
19A	3608F128-70		Trim, Side (black (right))		Appelez-nous	-
19B	3608F130-71		Trim, Side (white (left))		Appelez-nous	-
19C	3608F128-71		Trim, Side (white (right))				$ 103.82
1A	2618F206-51		Panel, Shield (right)				$ 135.68
9A	3604W156-71		Shield, Vent Lower (white)				$ 67.89
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	7002P471-60		Insulation, Oven Wrap		Appelez-nous	-
NI	7002P456-60		Insulation, Oven Bottom		Appelez-nous	-
NI	7002P445-60		Insulation, Back		Appelez-nous	-
