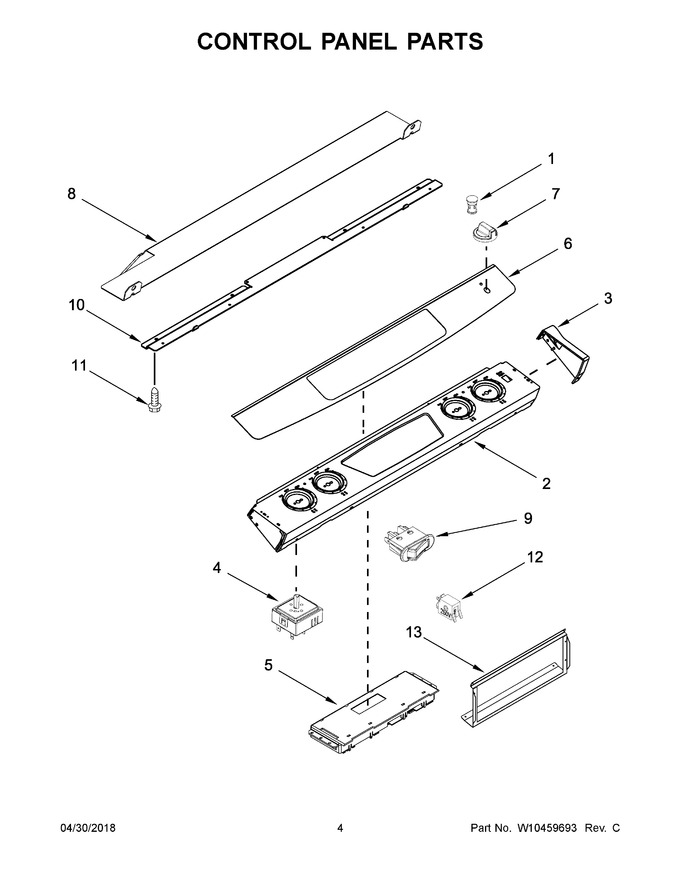

03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP22001948		Lens   (Replaces: 7730P031-60)				$ 13.32
2	W10190181		Panel, Control (black)		Appelez-nous	-
3	7726P401-60		Endcap (black (left Hand))				$ 23.44
4	WP7403P238-60		Switch, Infinite (left Front & Right Rear)   (Replaces: 7403P373-60)			Immediately	$ 64.20
5	W10769823		Control   (Replaces: W10343470)			Immediately	$ 295.45
6	WPW10178993		Overlay (black)   (Replaces: W10178993)				$ 73.54
7	WP7737P414-60		Knob (black (left Front & Right Rear))   (Replaces: 7737P414-60)				$ 22.12
8	3604F421-51		Shield, Control				$ 32.71
9	7403P798-60		Switch, Rocker (black)		Appelez-nous	-
10	3807F601-51		Support, Control Panel		Appelez-nous	-
11	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
12	WP74004153		Light, Indicator   (Replaces: 7407P136-60)			Immediately	$ 8.91
13	3801F895-51		Bracket, Control		Appelez-nous	-
2A	W10159606		Panel, Control (white)		Appelez-nous	-
2B	W10176434		Panel, Control (stainless)		Appelez-nous	-
3A	7726P400-60		Endcap (black (right Hand))				$ 32.99
3B	7726P333-60		Endcap (white (left Hand))				$ 17.04
3C	7726P332-60		Endcap (white (right Hand))				$ 30.59
4A	WPW10441696		Switch, Infinite (left Rear & Right Front)   (Replaces: W10441696)			Immediately	$ 112.10
6A	W10178994		Overlay (white)		Appelez-nous	-
7A	WP7737P417-60		Knob (black (left Rear & Right Front))   (Replaces: 7737P417-60)			Immediately	$ 21.53
7B	7737P415-60		Knob (white (left Front & Right Rear))				$ 21.78
7C	7737P418-60		Knob (white (left Rear & Right Front))				$ 76.82
9A	74008717		Switch, Rocker (white)   (Replaces: 7403P799-60)				$ 84.80
