01 - Cooktop Parts

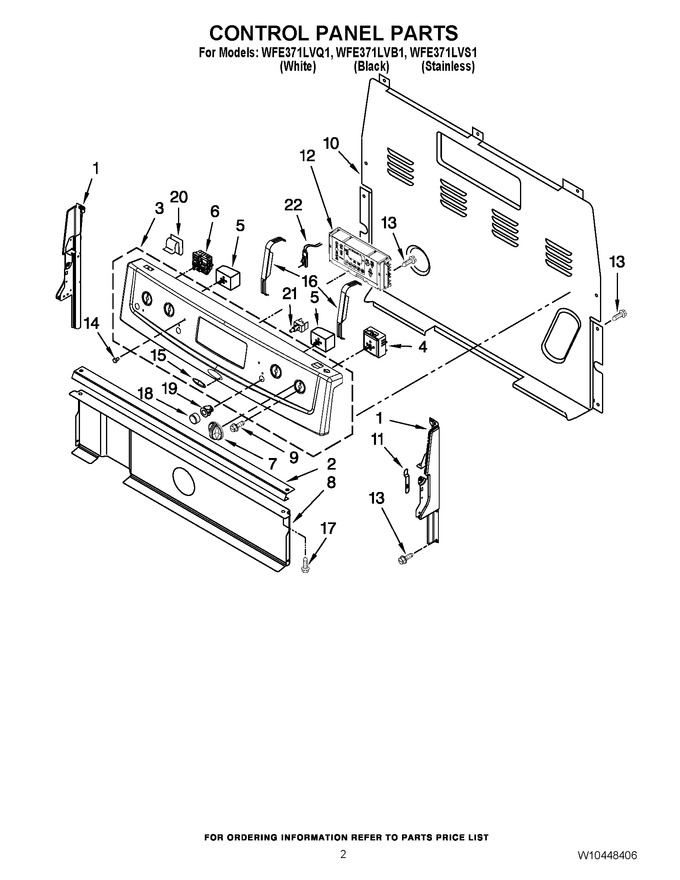

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219665 | Endcap (black Right Hand) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 1 | W11219365 | Endcap (white Left Hand) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 1 | W11219370 | Endcap (white Right Hand) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 1 | W11219664 | Endcap (black Left Hand) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 2 | W10525121 | Bracket, Console (Replaces: W10182322) |
|
$ 98.85 | |||||
| 3 | W10170658 | Console (white) |
|
- | |||||
| 3 | W10173826 | Console (stainless Steel) |
|
$ 152.94 | |||||
| 3 | W10170659 | Console (black) |
|
- | |||||
| 4 | WPW10434452 | Switch, Infinite Right Front (dual Elmt) (Replaces: W10434452) |
|
Immediately | $ 140.84 | ||||
| 5 | 5500-287 | Switch, Infinite Left & Right Rear (single Elmt) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 6 | WPW10167742 | Infinite Switch Left Front (single Elmt) (Replaces: W10167742) |
|
Immediately | $ 118.20 | ||||
| 7 | WP9761964 | Knob, Infinite (black) (Replaces: 9761964) |
|
Immediately | $ 22.30 | ||||
| 7 | WP9761962 | Knob, Infinite (white) (Replaces: 9761962) |
|
Immediately | $ 20.65 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 10 | WP8272473 | Cover, Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | 3196200 | Clip, Spring |
|
$ 10.45 | |||||
| 12 | WPW10476353 | Control, Range (black) (Replaces: W10183023) |
|
$ 434.01 | |||||
| 12 | WPW10476353 | Control, Range (white) (Replaces: W10183024) |
|
$ 434.01 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | WP3196068 | Lens, Light (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 15 | W10209617 | Nameplate |
|
$ 35.30 | |||||
| 16 | 9762078 | Brkt-mntg, Eoc |
|
$ 38.13 | |||||
| 17 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 18 | 9758491 | Button, Keep Warm (black) |
|
$ 19.74 | |||||
| 18 | 9757492 | Button, Keep Warm (white) |
|
$ 96.01 | |||||
| 19 | W10217760 | Bezel, Keep Warm (white) |
|
$ 25.91 | |||||
| 19 | W10217758 | Bezel, Keep Warm (black) |
|
$ 28.65 | |||||
| 20 | WP8273564 | Clip, Rear Cover (Replaces: 8273564) |
|
$ 12.66 | |||||
| 21 | WP8272820 | Switch, Warming Zone (Replaces: 8272820) |
|
$ 178.91 | |||||
| 22 | WP8523265 | Indicator Light (Replaces: 8523265) |
|
Immediately | $ 86.31 |
