SELECT A DIAGRAM

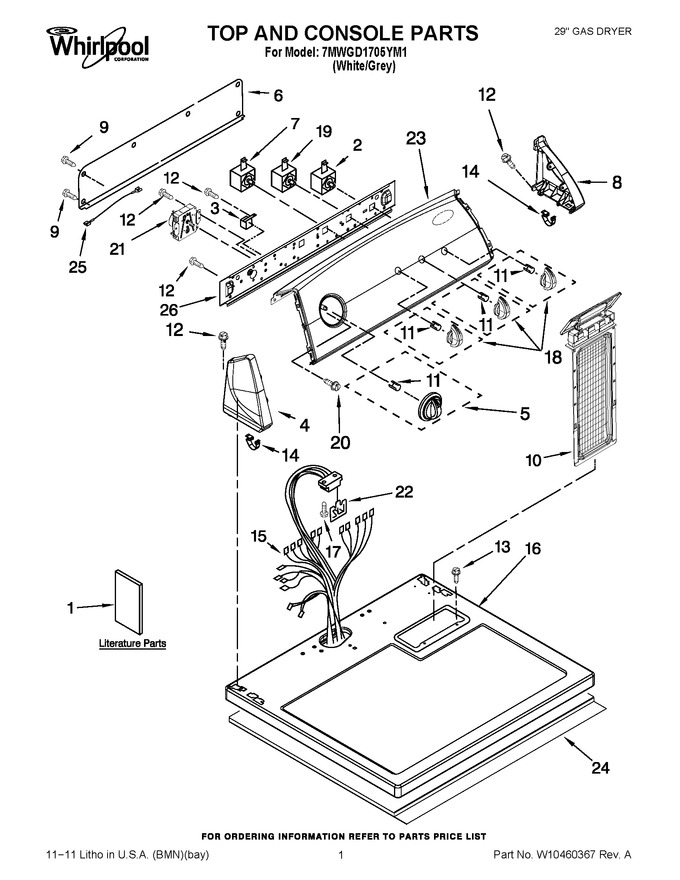

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10336852 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10118081		Wiring Diagram		Appelez-nous	-
1	W10329763		Instructions, Installation		Appelez-nous	-
1	W10368973		Use & Care Guide		Appelez-nous	-
2	WPW10117655		Switch, Push To Start   (Replaces: W10117655)			Immediately	$ 85.60
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
4	WP8565957		Cap, End (l.h.)   (Replaces: 8566035)				$ 64.76
5	W10034750		Knob, Timer Assembly				$ 28.27
6	W10103406		Panel, Rear Console				$ 135.31
7	8530169		Switch, Temperature				$ 147.06
8	WP8565954		Cap, End (r.h.)   (Replaces: 8566032)				$ 65.84
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.55
10	W11778253		Screen, Lint   (Replaces: 8557857)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP90767		Screw, 8-18 X 5/16   (Replaces: 3348629)			Immediately	$ 8.25
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	WP8312709		Clip-console   (Replaces: 8312709)			Immediately	$ 16.35
15	8576542		Harness, Wiring		Appelez-nous	-
16	WP8563663		Top   (Replaces: 8559800)			Immediately	$ 349.25
17	W11693756		Screw, 8-18 X 1/2   (Replaces: 359625)			Immediately	$ 14.76
18	W10034380		Knob, Control (3)				$ 25.06
19	WP3405156		Switch, Rotary (twist Mount)   (Replaces: 3405156)				$ 152.79
20	WP3400818		Screw, Grounding   (Replaces: 3400818)				$ 8.81
21	WP8566184		Timer Assembly (60 Hz.)   (Replaces: 8566184)			Immediately	$ 277.09
22	WPW10476828		Control, Electronic   (Replaces: 8558178)			Immediately	$ 329.93
23	W10354025		Panel & Console Assembly		Appelez-nous	-
24	W10123956		Panel, Dampening		Appelez-nous	-
25	W10113080		Jumper, Buzzer		Appelez-nous	-
26	8566052		Bracket, Control		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
