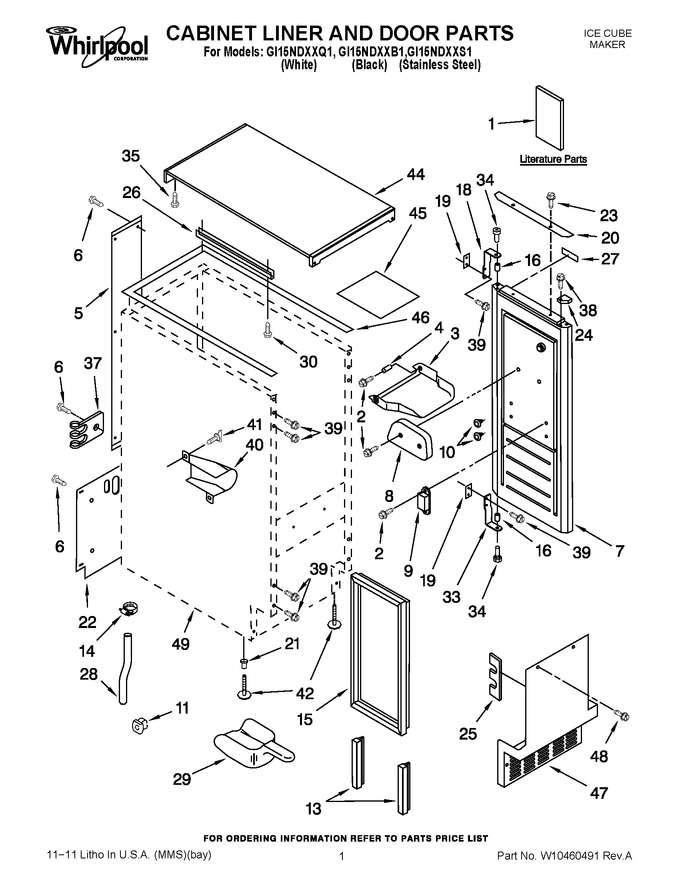

SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10282149 | Use & Care Guide |
|
- | |||||
| 1 | W10206442 | Service & Wiring Sheet |
|
- | |||||
| 2 | 3400886 | Screw 8-18 X 1 1/4 |
|
$ 5.65 | |||||
| 3 | 2185742 | Bin, Door |
|
- | |||||
| 4 | 2185678 | Spacer |
|
$ 11.03 | |||||
| 5 | 2217394 | Cover, Wiring |
|
- | |||||
| 6 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 7 | W10320413 | Door (stainless Steel) |
|
- | |||||
| 7 | W10320412 | Door (black) |
|
- | |||||
| 7 | W10320410 | Door (white) |
|
- | |||||
| 8 | 2185695 | Cam, Door |
|
$ 95.66 | |||||
| 9 | W11223751 | Assembly, Magnetic Catch (Replaces: 2217393) |
|
$ 62.40 | |||||
| 10 | WP2151652 | Hole Plug, Handle (Replaces: 2151652) |
|
$ 22.87 | |||||
| 11 | W10136999 | Nut, Push-in |
|
- | |||||
| 13 | 2217367 | Gasket, Bottom |
|
- | |||||
| 14 | WP489503 | Clamp (Replaces: 489503) |
|
Immediately | $ 11.29 | ||||
| 15 | WP2217294 | Gasket, Door (Replaces: 2217294) |
|
$ 285.98 | |||||
| 16 | 2185640 | Sleeve, Hinge |
|
- | |||||
| 18 | 2185710 | Hinge, Top |
|
$ 94.38 | |||||
| 19 | 2185709 | Shim, Hinge |
|
- | |||||
| 20 | WP2208494W | Handle, Door (white) (Replaces: 2208494W) |
|
$ 150.77 | |||||
| 20 | 2208493AP | Handle, Door (apollo Grey) |
|
- | |||||
| 20 | 2208494B | Handle, Door (black) |
|
- | |||||
| 21 | 3400240 | Nut, Leg Leveler |
|
- | |||||
| 22 | WPW10136199 | Assembly, Unit Cover (Replaces: W10136199) |
|
$ 108.85 | |||||
| 23 | 8281188 | Screw (white) |
|
- | |||||
| 23 | 8281186 | Screw (black) |
|
- | |||||
| 23 | 8534081 | Screw (stainless) |
|
$ 7.81 | |||||
| 24 | 2185655W | Filler, Endcap Left Side (white) |
|
- | |||||
| 24 | 2185655B | Filler, Endcap Left Side (black) |
|
- | |||||
| 24 | 2185655AP | Filler, Endcap Left Side (apollo Grey ) |
|
$ 36.67 | |||||
| 24 | 2185656W | Filler, Endcap Right Side (white) |
|
- | |||||
| 24 | 2185656B | Filler, Endcap Right Side (black) |
|
- | |||||
| 24 | 2185656AP | Filler, Endcap Right Side (apollo Grey) |
|
- | |||||
| 25 | W10532250 | Pad, Foam (Replaces: 2185756) |
|
- | |||||
| 26 | 2185691 | Channel, Wiring |
|
- | |||||
| 27 | W10175320 | Badge (whpl.gold) |
|
$ 41.71 | |||||
| 28 | WP2185989 | Tube, Drain (Replaces: 2185989) |
|
$ 115.22 | |||||
| 29 | W11420408 | Scoop (Replaces: 585158) |
|
$ 28.61 | |||||
| 30 | WP3400884 | Screw 8-18 X 5/8 (Replaces: 3400884) |
|
$ 8.10 | |||||
| 33 | 2185711 | Hinge, Bottom |
|
$ 96.36 | |||||
| 34 | 2185712 | Pin, Hinge |
|
$ 49.37 | |||||
| 35 | WP250830 | Screw, Ground 8-32 X 1/2 (Replaces: 489048) |
|
$ 8.78 | |||||
| 37 | WP488366 | Clip, Water Tube (Replaces: 2208136) |
|
$ 11.92 | |||||
| 38 | 348689 | Screw 8-18 X 3/4 |
|
$ 78.07 | |||||
| 39 | WP489464 | Screw (Replaces: 8281265) |
|
Immediately | $ 8.38 | ||||
| 40 | 2185927 | Holder, Scoop |
|
$ 89.07 | |||||
| 41 | 8281228 | Thumbscrew |
|
- | |||||
| 42 | 8193716 | Leg, Leveler (4) (Replaces: 3374849) |
|
Immediately | $ 88.96 | ||||
| 44 | W10320111 | Top (black) |
|
- | |||||
| 44 | W10320110 | Top (white) |
|
- | |||||
| 45 | 2185690 | Shield, Electrical |
|
- | |||||
| 46 | W11624957 | Gasket, Top Panel (Replaces: 2217293) |
|
- | |||||
| 47 | WP2185571W | Grill, Front (white) (Replaces: 2185571W) |
|
$ 146.35 | |||||
| 47 | WP2185571B | Grill, Front (black) (Replaces: 2185571B) |
|
$ 241.63 | |||||
| 48 | WP489474 | Screw 8-18 X 1 (Replaces: 489474) |
|
Immediately | $ 8.55 | ||||
| 49 | N/P | Cabinet & Liner (not Serviced) |
|
- |
