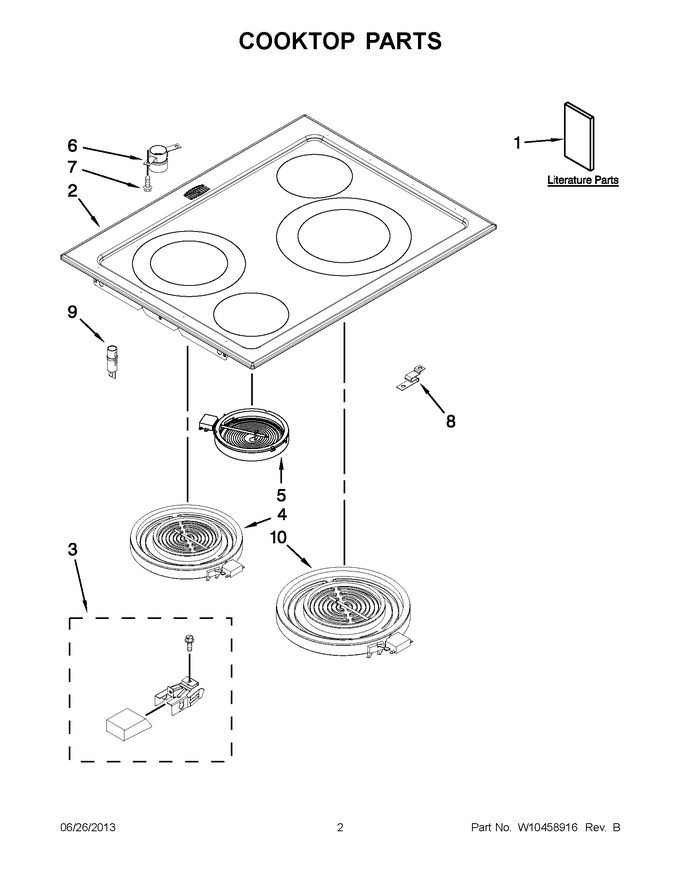

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10394681 | Diagram, Wiring |
|
- | |||||
| 1 | W10546294 | Use & Care Guide |
|
- | |||||
| 1 | W10430949 | Instructions, Installation |
|
- | |||||
| 2 | W10202560 | Cooktop (black) |
|
- | |||||
| 3 | WPW10281322 | Block, Bare Wire Adapter (Replaces: 7401P157-60) |
|
$ 8.87 | |||||
| 4 | WPW10275049 | Element (2500/1200w) (left Rear) (Replaces: W10275049) |
|
Immediately | $ 314.23 | ||||
| 5 | W11171119 | Element (1200w) (left Front & Right Rear) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 6 | W10233479 | Tube, Vent Upper |
|
$ 74.82 | |||||
| 7 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 8 | 8004P093-60 | Support,element |
|
$ 10.61 | |||||
| 9 | 7407P193-60 | Light, Indicator |
|
$ 77.76 | |||||
| 10 | WPW10204680 | Element, Dual (2700w) (right Front) (Replaces: W10204680) |
|
Immediately | $ 403.75 |
