01 - Cooktop Parts

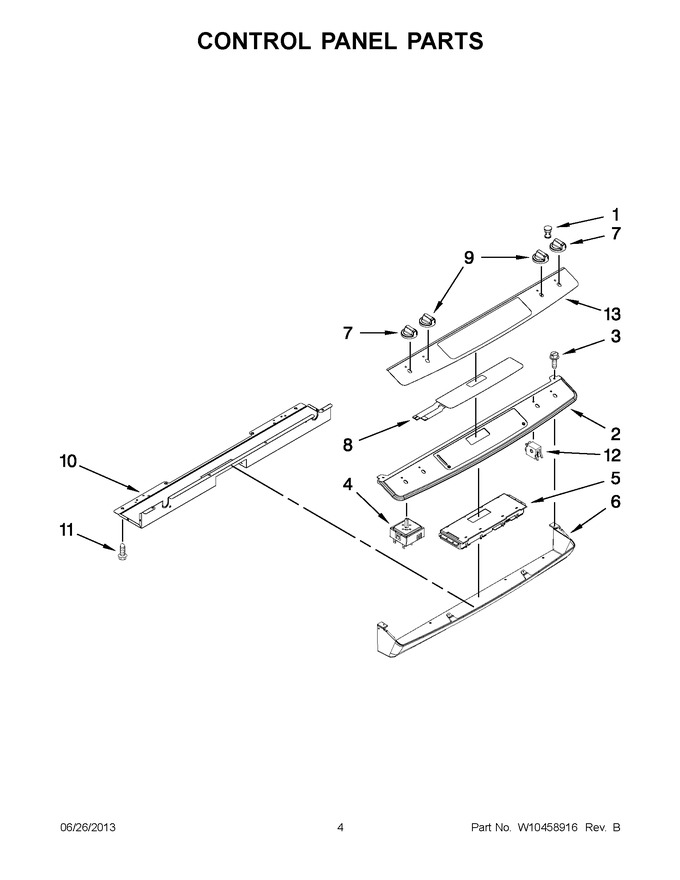

02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP22001948 | Lens (Replaces: 7730P031-60) |
|
$ 13.32 | |||||
| 2 | W10182766 | Panel, Control (stainless) |
|
- | |||||
| 2 | 7720P535-60 | Panel, Control (black) |
|
$ 147.50 | |||||
| 3 | 74003975 | Screw (Replaces: 7101P375-60) |
|
$ 14.03 | |||||
| 4 | WP7403P238-60 | Switch, Infinite (left Front & Right Rear) (Replaces: 7403P373-60) |
|
Immediately | $ 64.20 | ||||
| 4 | WPW10441696 | Switch, Infinite (right Front & Left Rear) (Replaces: W10441696) |
|
Immediately | $ 112.10 | ||||
| 5 | WP8507P392-60 | Control (Replaces: 8507P392-60) |
|
$ 507.16 | |||||
| 6 | W10185606 | Panel, Lower Control (black) |
|
$ 130.08 | |||||
| 7 | WP7737P414-60 | Knob, Single Burner (black) (Replaces: 7737P414-60) |
|
$ 22.12 | |||||
| 8 | WPW10207933 | Switch, Membrane (black) (Replaces: W10207933) |
|
$ 290.92 | |||||
| 9 | WP7737P417-60 | Knob, Dual Burner (black) (Replaces: 7737P417-60) |
|
Immediately | $ 21.53 | ||||
| 10 | 3807F769-51 | Support, Control Panel |
|
- | |||||
| 11 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 12 | WP74004153 | Light, Indicator (Replaces: 7407P136-60) |
|
Immediately | $ 8.91 | ||||
| 13 | W10279070 | Overlay (stainless) |
|
$ 163.31 |
