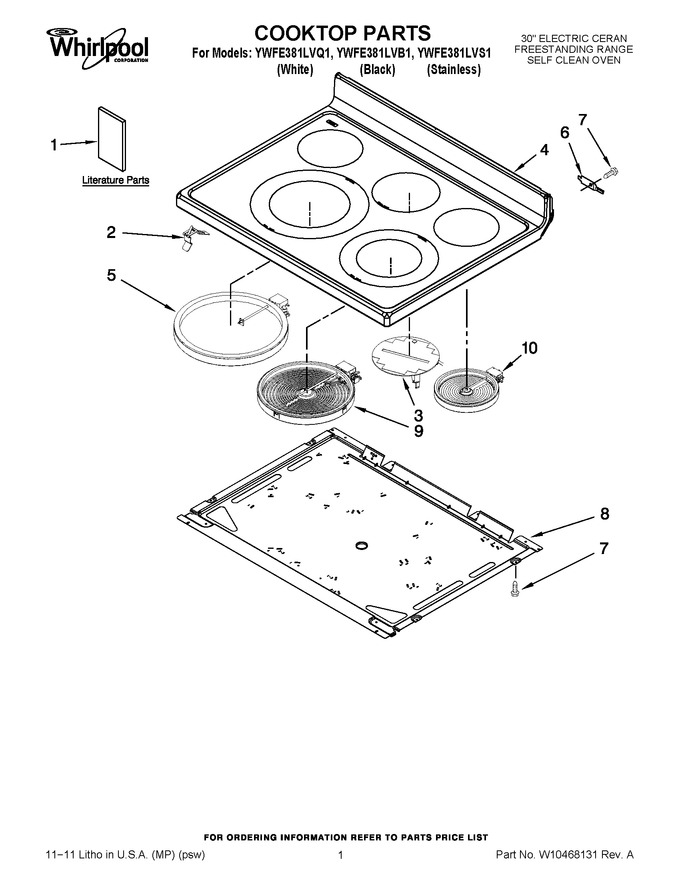

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10196159 | Instructions Installation |
|
- | |||||
| 1 | W10200358 | Owner`s Manual |
|
- | |||||
| 1 | 9762761 | Brochure, Tips Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Brochure, Tips Safe Cooking (french) |
|
- | |||||
| 1 | W10434987 | Tech Sheet (english) |
|
- | |||||
| 1 | W10434988 | Tech Sheet (french) |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 3 | WP9762851 | Element, Surface Warm Zone (Replaces: 9762851) |
|
Immediately | $ 290.36 | ||||
| 4 | W10651914 | Cooktop (white) (Replaces: W10162032) |
|
$ 702.42 | |||||
| 4 | W10651915 | Cooktop (black) (Replaces: W10162033) |
|
$ 684.99 | |||||
| 5 | W10823727 | Element, Surface (3000/1900w - Lf) (Replaces: W10162040) |
|
Immediately | $ 342.63 | ||||
| 6 | WP3195060 | Hinge, Pin/cooktop (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 7 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 8 | W10170526 | Pan, Radiant Elmt |
|
$ 270.57 | |||||
| 9 | W11517959 | Element, Surface (3000/1400 W - Rf) (Replaces: W10275048) |
|
Immediately | $ 134.44 | ||||
| 10 | W10823711 | Element, Surface (1200 W - Lr,rr) (Replaces: 8523698) |
|
Immediately | $ 204.39 |
