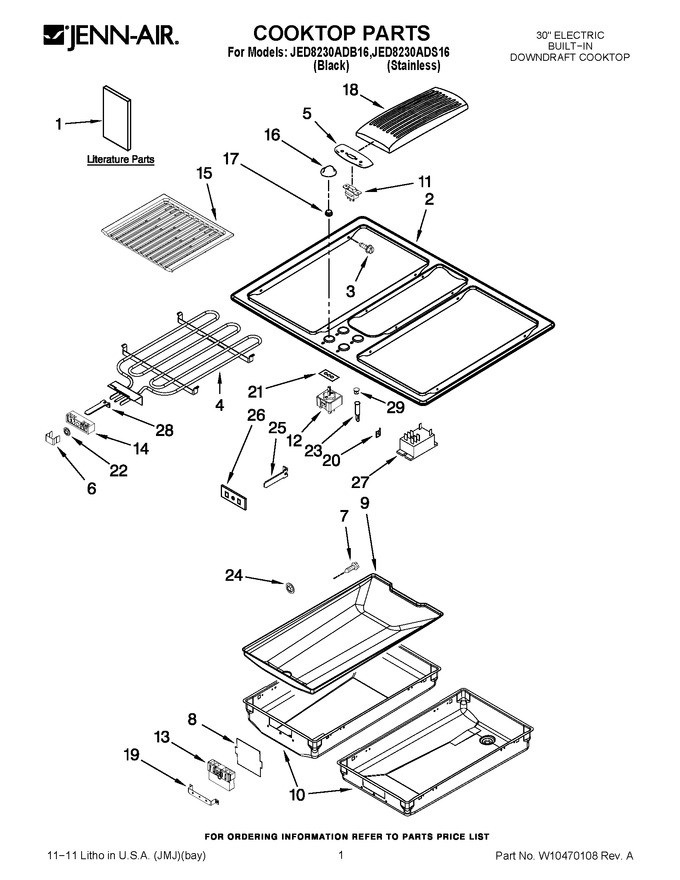

01 - Cooktop Parts
02 - Blower Unit Parts
03 - Burner Box Assembly
04 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10298937 | Installation Instructions |
|
- | |||||
| 1 | W10411780 | Wiring Diagram |
|
- | |||||
| 1 | W10298938 | Use & Care Guide |
|
- | |||||
| 1 | 8106P068-60 | Card, Flow Tester |
|
$ 6.65 | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 2 | 2002F209-50 | Top, Main (stainless) |
|
$ 277.29 | |||||
| 2 | 2002F152-09 | Top, Main (black) |
|
$ 238.07 | |||||
| 3 | W11233072 | Screw (Replaces: 7101P428-60) |
|
Immediately | $ 14.72 | ||||
| 4 | WPW10310263 | Element, Surface (Replaces: 7406P297-60) |
|
$ 342.63 | |||||
| 5 | WPW10298872 | Trim, Control Fan (black) (Replaces: W10298872) |
|
$ 157.83 | |||||
| 6 | 7422P002-60 | Clip, Shunt |
|
- | |||||
| 7 | WP489128 | Screw (Replaces: 7101P451-60) |
|
$ 11.40 | |||||
| 8 | 7003P130-60 | Block, Ceramic |
|
$ 29.24 | |||||
| 9 | 4009F087-19 | Pan, Grill Insert |
|
$ 105.43 | |||||
| 10 | 3401F051-19 | Pan, Grill (right) |
|
$ 107.53 | |||||
| 10 | 3401F050-19 | Pan, Grill (left) |
|
$ 107.69 | |||||
| 11 | WPW10331927 | Switch, Fan (black) (Replaces: W10298869) |
|
$ 107.61 | |||||
| 12 | WPW10391800 | Switch, Infinite (Replaces: W10391800) |
|
Immediately | $ 185.73 | ||||
| 13 | WPY702434 | Receptacle (Replaces: 7408P047-60) |
|
Immediately | $ 112.71 | ||||
| 14 | WPY708730 | Block, Terminal (Replaces: 7401P061-60) |
|
$ 102.01 | |||||
| 15 | 7518P118-60 | Grate, Grill |
|
$ 129.60 | |||||
| 16 | WP7737P193-60 | Knob, Control (black) (Replaces: 7737P193-60) |
|
$ 19.85 | |||||
| 17 | 7103P192-60 | Palnut |
|
- | |||||
| 18 | 7772P046-60 | Grille, Air (black) |
|
$ 102.11 | |||||
| 19 | 3801F621-51 | Brckt,receptacle |
|
$ 5.51 | |||||
| 20 | 7112P147-60 | Clip, Ind. Light |
|
- | |||||
| 21 | 7212P030-60 | Gasket, Switch |
|
- | |||||
| 22 | Y708862 | Nut, Speed (Replaces: 7103P148-60) |
|
$ 15.25 | |||||
| 23 | W10354968 | Indicator, Light (black) |
|
$ 55.41 | |||||
| 24 | Y708862 | Nut (Replaces: 7103P148-60) |
|
$ 15.25 | |||||
| 25 | Y708572 | Spade, Contact (Replaces: 7405P131-60) |
|
Immediately | $ 13.23 | ||||
| 26 | 7003P082-60 | Insulator |
|
- | |||||
| 27 | 12001452 | Relay, Fan (Replaces: 7428P030-60) |
|
$ 209.92 | |||||
| 28 | Y708572 | Contact, Spade (Replaces: 7405P131-60) |
|
Immediately | $ 13.23 | ||||
| 29 | W11690131 | Lens, Indicator (Replaces: 7730P012-60) |
|
$ 7.85 |
