01 - Cooktop Parts


02 - Blower Unit Parts


03 - Burner Box Assembly


04 - Optional Parts

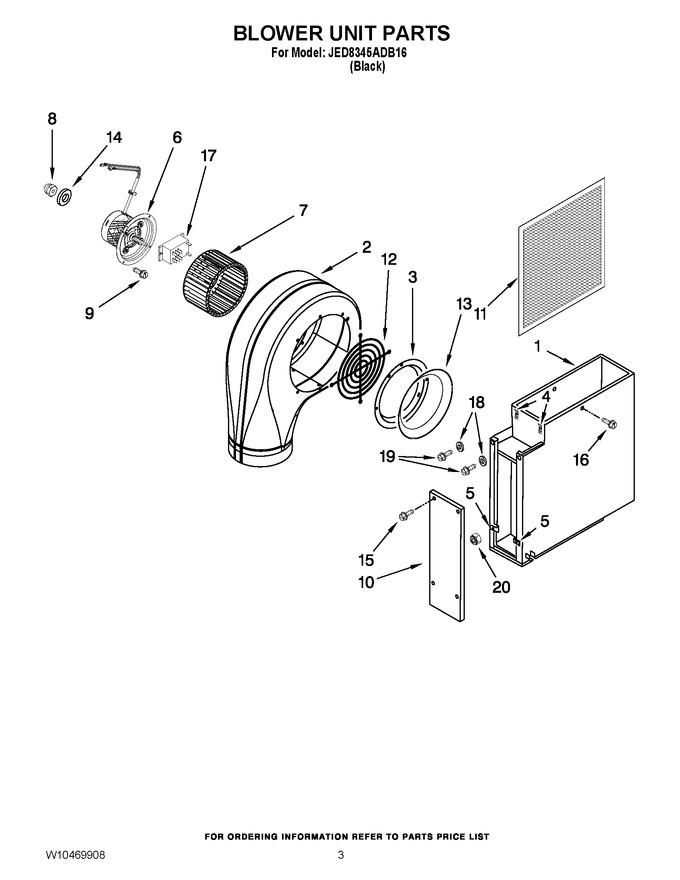

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2801W023-80		Assy, Plenum		Appelez-nous	-
2	2822W001-80		Blwr Assy, Scroll		Appelez-nous	-
3	4026F008-51		Ring, Inlet				$ 7.43
4	7104P011-60		Clip		Appelez-nous	-
5	7104P007-60		Cover, Clip		Appelez-nous	-
6	WPW10241953		Motor, Blower   (Replaces: W10241953)				$ 314.66
7	WPY707985		Wheel, Blower   (Replaces: 7114P005-60)			Immediately	$ 161.72
8	7103P192-60		Nut, Acorn		Appelez-nous	-
9	W11233072		Screw   (Replaces: 7101P428-60)			Immediately	$ 14.72
10	4005F511-80		Cover (cover, Plate)		Appelez-nous	-
10	4005F630-51		Cover (cover, Electric)		Appelez-nous	-
11	WP707929		Filter, Grease   (Replaces: 8312P121-60)			Immediately	$ 49.46
12	8312P151-60		Guard, Blower		Appelez-nous	-
13	4026F009-51		Ring, Restrictor				$ 51.50
14	7109P086-60		Washer		Appelez-nous	-
15	71003131		Screw   (Replaces: 7101P472-60)			Immediately	$ 7.08
16	WP71001171		Screw   (Replaces: 7101P460-60)				$ 7.30
17	12001452		Relay, Fan   (Replaces: 7428P030-60)				$ 209.92
18	W10896751		Washer   (Replaces: 7109P036-60)		Appelez-nous	-
19	W11233072		Screw, 8ab .50   (Replaces: 7101P634-60)			Immediately	$ 14.72
20	WPY707702		Lock Nut   (Replaces: 7103P162-60)			Immediately	$ 7.30
