SELECT A DIAGRAM

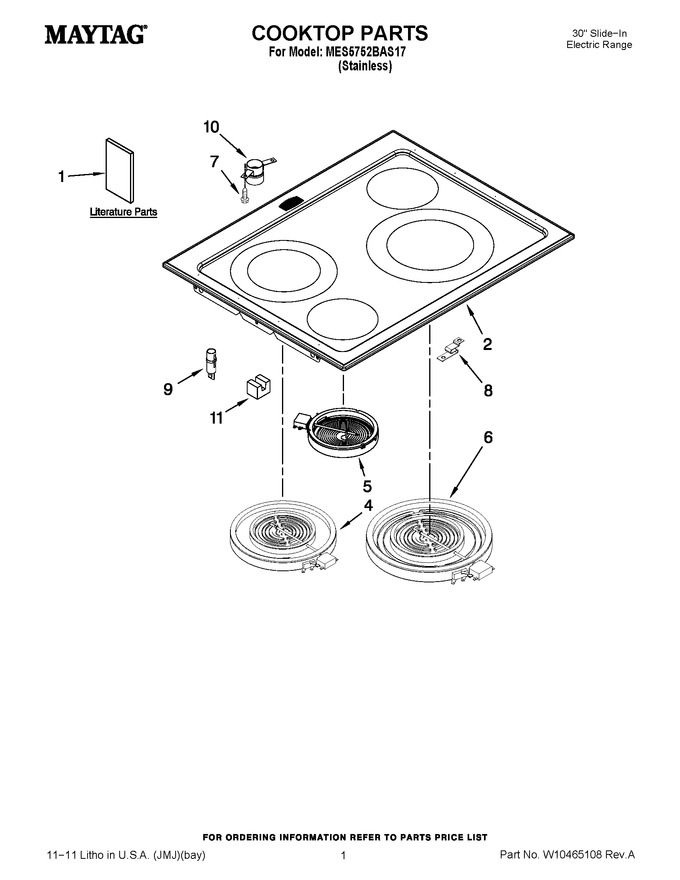

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8101P716-60 | Installation Instructions |
|
- | |||||
| 1 | W10444148 | Wiring Diagram |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking |
|
- | |||||
| 1 | 8113P768-60 | Use & Care Guide |
|
- | |||||
| 2 | 5706M558-50 | Cooktop (stainless) |
|
- | |||||
| 4 | W11047722 | Element, (lr) (Replaces: 8273992) |
|
Immediately | $ 132.46 | ||||
| 5 | W11171119 | Element, (lf, Rr) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 6 | W10204679 | Element, (rf) |
|
$ 194.26 | |||||
| 7 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 8 | 8004P093-60 | Support,element |
|
$ 10.61 | |||||
| 9 | 7407P193-60 | Light, Indicator |
|
$ 77.76 | |||||
| 10 | W10233479 | Tube, Vent Upper |
|
$ 74.82 | |||||
| 11 | 8255P412-60 | Block, Support |
|
$ 31.52 |
