SELECT A DIAGRAM

01 - Cover Sheet

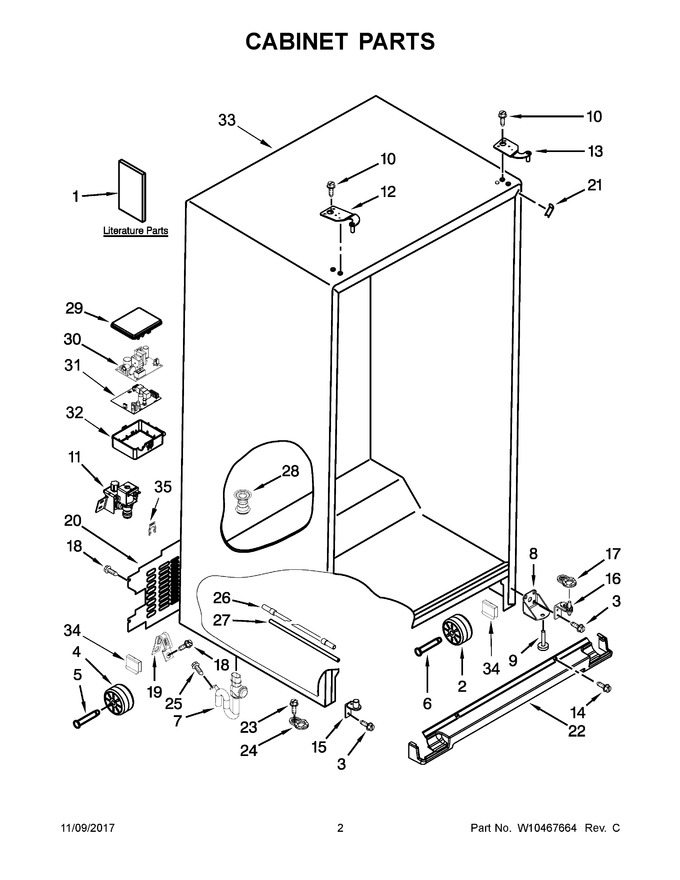

02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Shelf Parts


05 - Freezer Liner Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Parts


10 - Air Flow Parts


11 - Unit Parts


12 - Ice Maker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10287673		Service & Wiring Sheet		Appelez-nous	-
2	WPW10475495		Roller   (Replaces: 2150304)			Immediately	$ 32.06
3	WPW10297485		Screw   (Replaces: W10297485)				$ 8.40
4	12477102		Roller			Immediately	$ 7.38
5	67006434		Axle, Roller   (Replaces: 12477202)			Immediately	$ 7.90
6	W11208384		Rivet, Roller   (Replaces: 981125)				$ 18.73
7	W11519143		Tube, Drain   (Replaces: W10369091)				$ 38.35
8	W11266052		Bracket, Foot   (Replaces: W10900758)				$ 66.31
9	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 8.24
10	WPW10308750		Screw (white)   (Replaces: W10308750)				$ 73.29
11	WPW10238100		Valve, Inlet   (Replaces: W10498992)			Immediately	$ 210.55
12	W10901051		Hinge, Top (fc) (white)				$ 74.11
13	W11573587		Hinge, Top (rc) (white)   (Replaces: W10901046)				$ 24.93
14	WPW10142283		Screw (white)   (Replaces: W10142283)				$ 10.33
15	W11293373		Bottom Hinge (fc) (white)   (Replaces: W11088197)				$ 70.77
16	W11320488		Bottom Hinge (rc) (white)   (Replaces: W10666898)			Immediately	$ 68.67
17	W11311685		Door Closer (rc) (white)   (Replaces: W10738913)				$ 13.91
18	WPW10141645		Screw   (Replaces: W10141645)				$ 8.05
19	549193		Clamp, Power Cord				$ 14.06
20	W10257238		Cover, Unit   (Replaces: W10333887)				$ 103.04
21	12587703W		Filler, Wrapper (white)				$ 22.90
22	WPW10713160		Grille (white)   (Replaces: W10631244)				$ 137.63
23	WP489483		Screw   (Replaces: W10142234)				$ 11.41
24	W10876198		Door Closer (fc) (white)   (Replaces: W10770896)				$ 12.63
25	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
26	WPW10279882		Tube, Filter Inlet   (Replaces: W10279882)				$ 114.23
27	WPW10279885		Tube, Filter Outlet   (Replaces: W10279885)				$ 128.74
28	W10247979		Fitting, Drain				$ 67.82
29	W11226688		Lid, Hv Box   (Replaces: 12957702)				$ 85.16
30	WPW10226427		Control, Electronic (power Supply)   (Replaces: W10226427)			Immediately	$ 351.93
31	WPW10235503		Control, Electronic   (Replaces: W10235503)			Immediately	$ 382.84
32	WPW10247993		Box, Control   (Replaces: W10247993)				$ 119.11
33	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
34	W11545866		Clip, Axle Retainer   (Replaces: 2223388)				$ 11.88
35	W10782423		Locking Ring (1/4)				$ 24.37
12A	W10901052		Hinge, Top (fc) (black)				$ 76.64
12B	W11590581		Hinge, Top (fc) (grey)   (Replaces: W10249922)				$ 24.93
13A	W11568758		Hinge, Top (rc) (black)   (Replaces: W10901047)				$ 25.62
13B	W11409290		Hinge, Top (rc) (grey)   (Replaces: W10249925)				$ 70.48
14A	WP98008545		Screw (black)   (Replaces: W10308487)				$ 18.60
14B	WPW10308489		Screw (grey)   (Replaces: W10308489)			Immediately	$ 8.18
15A	W10249941		Bottom Hinge (fc) (black)		Appelez-nous	-
15B	W11293374		Bottom Hinge (fc) (grey)   (Replaces: W10249943)				$ 73.32
16A	W11311416		Bottom Hinge (rc) (black)   (Replaces: W11084348)				$ 70.98
16B	W11292872		Bottom Hinge (rc) (grey)   (Replaces: W10412761)				$ 72.09
17A	W11311686		Door Closer (rc) (black)   (Replaces: W10738914)				$ 14.02
17B	W11311687		Door Closer (rc) (grey)   (Replaces: W10412764)				$ 14.07
1A	W10542832		Energy Label		Appelez-nous	-
1B	W10416733		Use & Care Guide		Appelez-nous	-
21A	67003485		Filler, Wrapper (black)   (Replaces: 12587703B)			Immediately	$ 22.14
21B	WP12587703AP		Filler, Wrapper (grey)   (Replaces: 12587703AP)				$ 8.07
22A	WPW10713158		Grille (black)   (Replaces: W10631243)				$ 98.42
22B	WPW10713153		Grille (grey)   (Replaces: W10631241)			Immediately	$ 135.52
24A	W10770895		Door Closer (fc) (black)				$ 15.78
24B	W10876191		Door Closer (fc) (grey)   (Replaces: W10257200)				$ 17.98
35A	W10782424		Locking Ring (5/16)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
