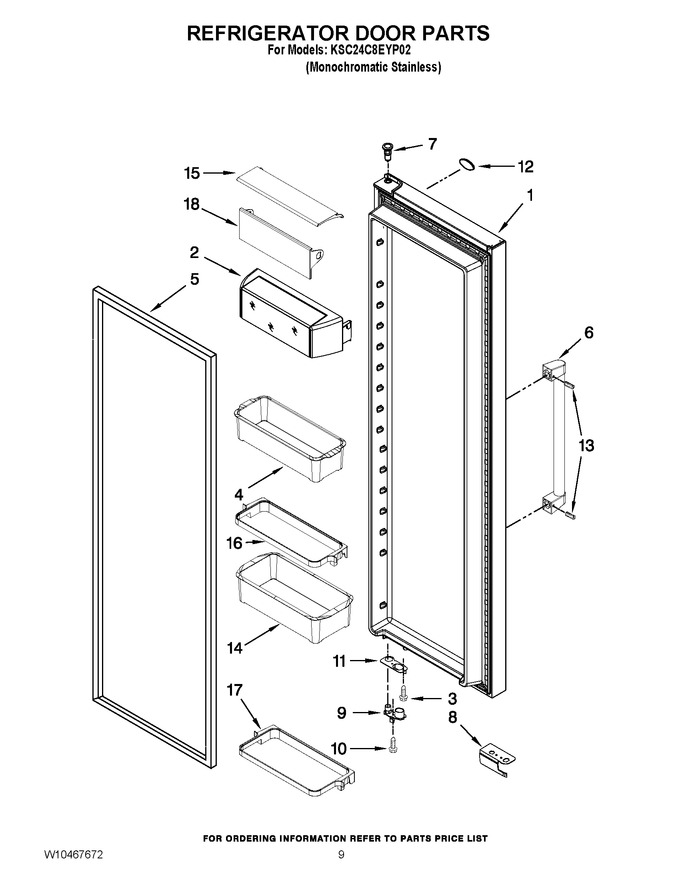

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10397039		Refrigerator Door (includes Item 5) (mono Stainless)		Appelez-nous	-
2	WPW10324760		Door Compartment Assembly   (Replaces: W10316889)				$ 77.04
3	WPW10296816		Screw   (Replaces: W10296816)				$ 7.25
4	WPW10316461		Door Bin, Shallow   (Replaces: W10316461)				$ 79.41
5	W10355588		Door Gasket, Magnetic   (Replaces: W10249918)				$ 287.29
6	W10319123		Handle				$ 65.29
7	WP2182181		Thimble-top   (Replaces: 2200087)				$ 7.34
8	W11661847		Cover, Door Stop   (Replaces: W10257218)			Immediately	$ 28.54
9	WPW10257203		Door Closer, Upper Cam   (Replaces: W10257203)				$ 11.66
10	WPW10296804		Screw   (Replaces: W10296804)				$ 10.25
11	W11037957		Bracket, Door Stop (chrome)   (Replaces: W10247909)				$ 72.22
12	WPW10320959		Nameplate   (Replaces: W10320959)				$ 92.19
13	W10320946		Set Screw		Appelez-nous	-
14	WPW10316457		Door Bin, Gallon   (Replaces: W10316457)			Immediately	$ 88.82
15	WPW10316883		Lid, Compartment   (Replaces: W10316883)				$ 60.90
16	WPW10494333		Frame, Shallow Door Bin   (Replaces: W10438988)				$ 252.56
17	WPW10494334		Frame, Gallon Door Bin   (Replaces: W10438948)				$ 240.27
18	WPW10316885		Window, Door Compartment   (Replaces: W10316885)				$ 67.88
