Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10290493 Shelf, Snack Pan Special Order $ 117.66

2 WPW10282541 Cover, Assy   (Replaces: W10282541) Special Order $ 288.16

3 WPW10542030 Snack Pan (incl. 4, 5 & 8)   (Replaces: W10315547) Special Order $ 277.39

4 W11164152 Roller   (Replaces: W10278139) In-Stock Immediately $ 15.74

5 WPW10257246 Axle, Roller   (Replaces: W10257246) Special Order $ 36.54

6 W10315548 Crisper Pan (incl. 4, 5, 10, 11, & 12) Appelez-nous -
7 WPW10531079 Meat Pan (incl. 4, 5 & 9)   (Replaces: W10315549) In-Stock Immediately $ 206.39

8 WPW10542020 Trim, Handle   (Replaces: W10320875) Special Order $ 116.28

9 WPW10531022 Trim, Handle   (Replaces: W10316516) Special Order $ 108.10

10 WPW10531023 Trim, Handle   (Replaces: W10321200) Special Order $ 109.41

11 W10257334 Slide, Humidity Special Order $ 61.15

12 W10316452 Housing, Humidity Special Order $ 92.65

13 WPW10321180 Shelf Assy   (Replaces: W10321180) Special Order $ 288.44


    View Diagram in Separate Window     Print Icon   Print Part List

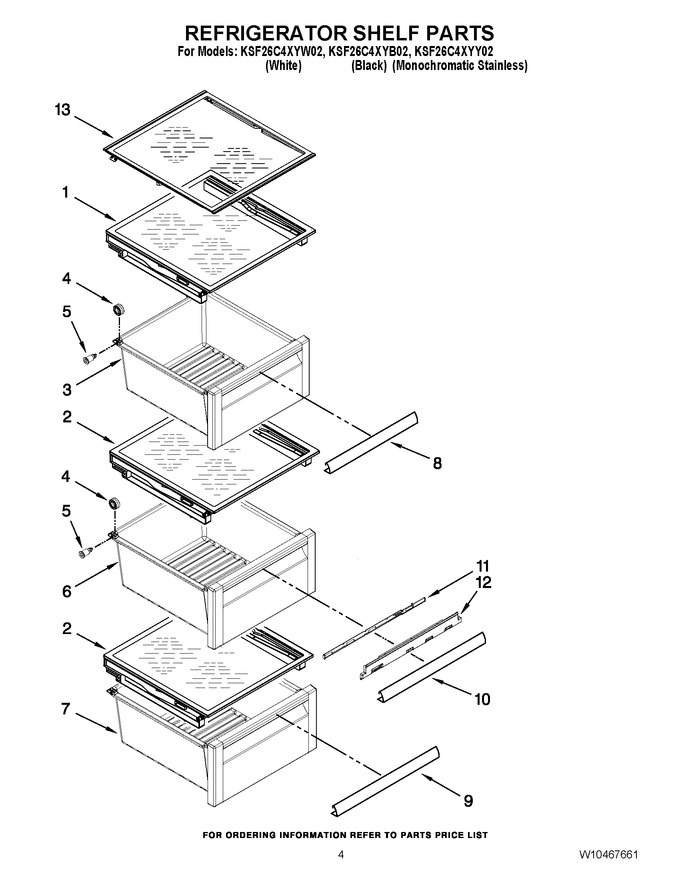

Diagram for KSF26C4XYB02
