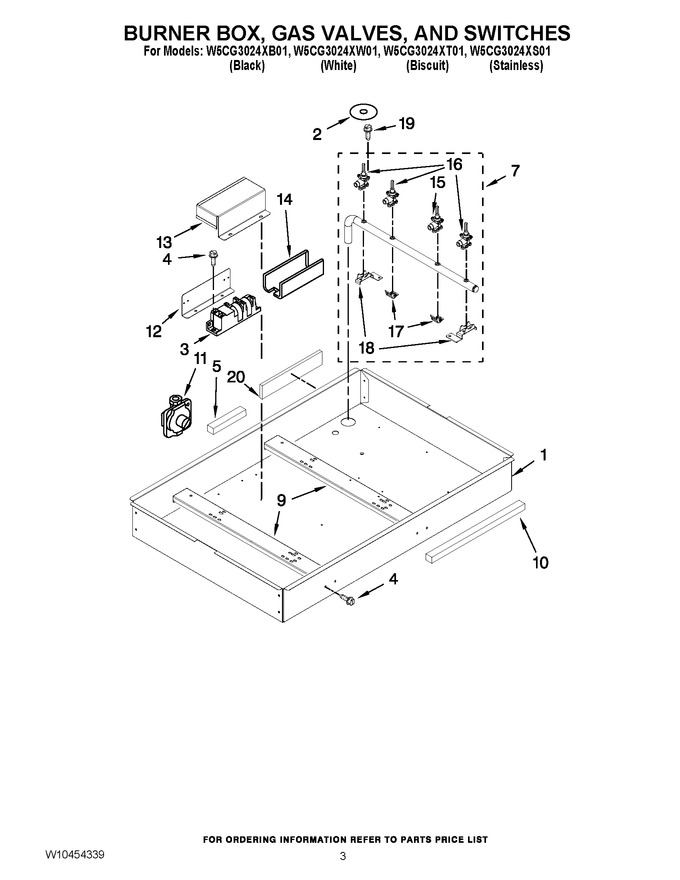

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
03 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10413268 | Burner Box |
|
- | |||||
| 2 | WP3188425 | Seal, Switch (Replaces: 3191387) |
|
$ 96.38 | |||||
| 3 | WPW10110491 | Module, Spark (Replaces: W10110488) |
|
Immediately | $ 322.41 | ||||
| 4 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 5 | W10339643 | Spacer |
|
- | |||||
| 7 | W10467737 | Assembly, Manifold (Replaces: W10413266) |
|
$ 316.16 | |||||
| 9 | W10331608 | Rail, Long |
|
- | |||||
| 10 | 9760045 | Foam, Blower |
|
$ 275.82 | |||||
| 11 | W11087445 | Regulator, Pressure (Replaces: 7510P093-60) |
|
Immediately | $ 197.04 | ||||
| 12 | W10319059 | Bracket, Spark Module |
|
- | |||||
| 13 | W10268477 | Shield, Spark Module |
|
- | |||||
| 14 | W10244688 | Insulation, Spark Module |
|
- | |||||
| 15 | W10441651 | Valve, Gas (lf) (Replaces: W10256069) |
|
$ 286.10 | |||||
| 16 | W10831822 | Valve, Gas (rf,rr,lr) (Replaces: W10259053) |
|
$ 286.28 | |||||
| 17 | W10256067 | Bracket, Valve (lf,rr) |
|
- | |||||
| 18 | W10949105 | Bracket, Valve (rf,lr) (Replaces: W10295996) |
|
$ 22.75 | |||||
| 19 | W11666001 | Screw (Replaces: W10246216) |
|
$ 14.28 | |||||
| 20 | W10335541 | Insulation, Front/back |
|
- | |||||
| NI | W10268474 | Tubing, Gas (lf,lr) |
|
- | |||||
| NI | W10268473 | Tubing, Gas (rf,rr) |
|
- |
