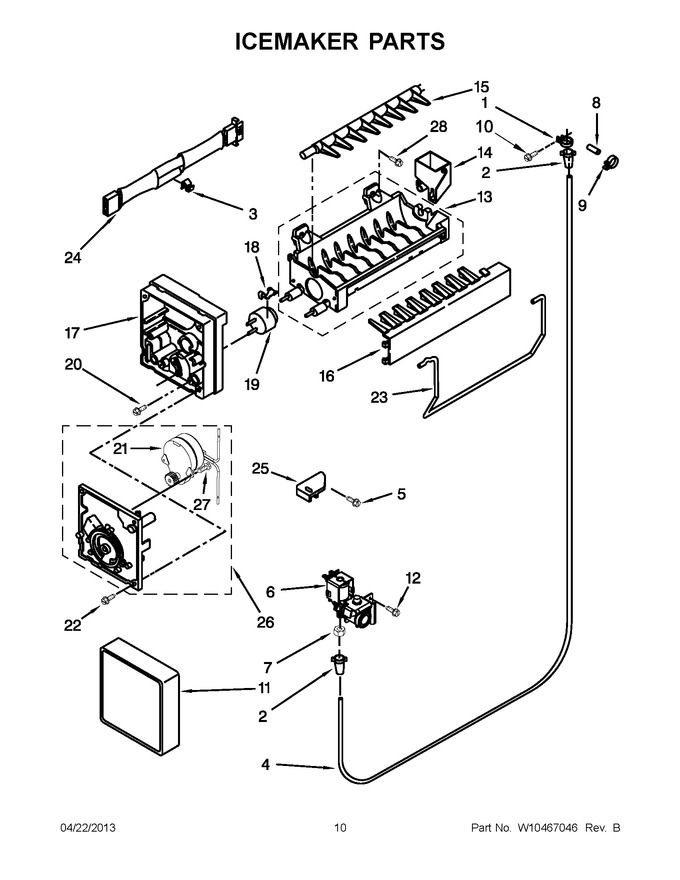

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP488878 | Clamp, Tube (Replaces: 488878) |
|
$ 12.18 | |||||
| 2 | 4387491 | Insert, Tube (Replaces: 2181939) |
|
$ 8.23 | |||||
| 3 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 4 | W10823511 | Tube Water (Replaces: 2181944) |
|
Immediately | $ 32.41 | ||||
| 5 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 6 | WP2315576 | Valve, Solenoid (Replaces: 2210494) |
|
Immediately | $ 95.98 | ||||
| 7 | WP627018 | Nut, Compression (Replaces: 627018) |
|
$ 11.51 | |||||
| 8 | 2174755 | Tube, Water Inlet |
|
$ 22.18 | |||||
| 9 | W11501419 | Clamp, Tube (Replaces: W10352217) |
|
Immediately | $ 12.10 | ||||
| 10 | WP488787 | Screw (Replaces: 488886) |
|
$ 11.26 | |||||
| 11 | WPW10289690 | Cover, Icemaker (Replaces: W10289690) |
|
Immediately | $ 8.82 | ||||
| 12 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 13 | WPW10190929 | Mold & Heater Assembly (Replaces: W10122527) |
|
$ 233.15 | |||||
| 14 | W11676540 | Cup, Water Fill (Replaces: W10435665) |
|
$ 22.65 | |||||
| 15 | WP627843 | Ejector (Replaces: 627843) |
|
$ 87.78 | |||||
| 16 | WPW10122563 | Stripper, Ice (Replaces: W10122563) |
|
$ 99.42 | |||||
| 17 | WP2195914 | Support, Housing (Replaces: 2194712) |
|
$ 109.80 | |||||
| 18 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 11.60 | |||||
| 19 | WP627985 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: 628397) |
|
$ 114.64 | |||||
| 20 | W10001280 | Screw |
|
- | |||||
| 21 | W10122551 | Motor, Module Assembly |
|
$ 323.41 | |||||
| 22 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 23 | WP627792 | Shut Off Arm (Replaces: 627792) |
|
$ 88.76 | |||||
| 24 | W10309399 | Harness, Wiring |
|
$ 137.22 | |||||
| 25 | W11500948 | Bracket, Icemaker Mounting (Replaces: 628320) |
|
Immediately | $ 33.78 | ||||
| 26 | 8201515 | Assembly, Module (Replaces: W10223929) |
|
Immediately | $ 141.64 | ||||
| 27 | 489136 | Screw |
|
$ 10.80 | |||||
| 28 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 100 | 4317943 | Icemaker Assembly (complete) (Replaces: W10190952) |
|
Immediately | $ 183.45 |
