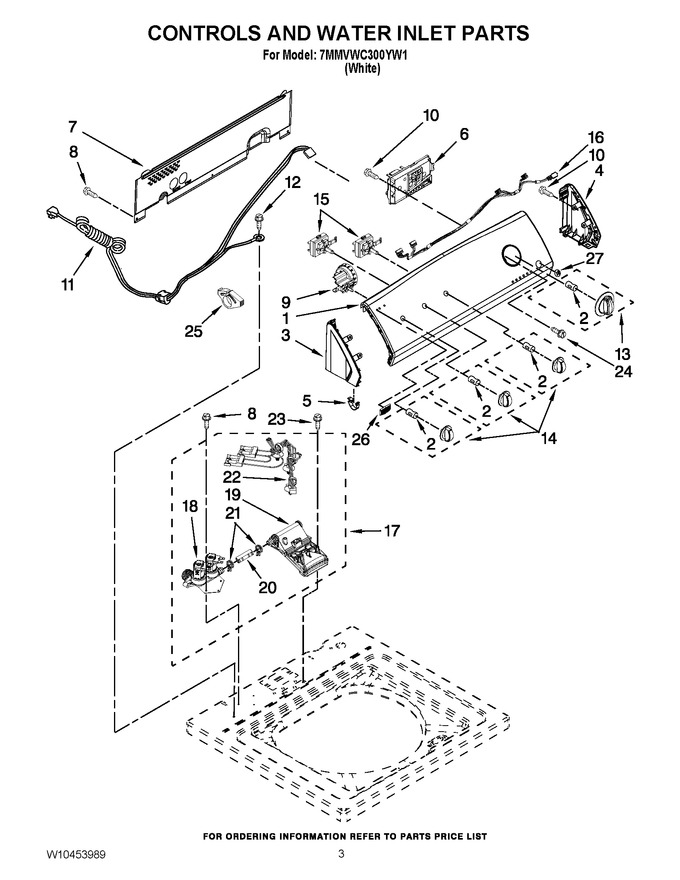

02 - Controls And Water Inlet Parts
03 - Basket And Tub Parts
04 - Gearcase, Motor And Pump Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10355022 | Panel, Console |
|
- | |||||
| 2 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 3 | WPW10251358 | Cap, End (l.h.) (includes Item 5) (Replaces: W10251358) |
|
$ 51.42 | |||||
| 4 | WPW10251355 | Cap, End (r.h.) (includes Item 5) (Replaces: W10251355) |
|
$ 51.39 | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.59 | ||||
| 6 | W10480348 | Control Unit Assembly, Machine & Motor (Replaces: W10445352) |
|
- | |||||
| 7 | WPW10420985 | Panel, Console Rear Cover (Replaces: W10420985) |
|
$ 263.85 | |||||
| 8 | WP489069 | Screw, 8-18 X 3/8 (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 9 | WPW10268912 | Switch, Water Level (Replaces: W10268912) |
|
$ 190.67 | |||||
| 10 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 11 | WPW10525194 | Cord, Power (Replaces: W10276649) |
|
$ 163.41 | |||||
| 12 | W10846509 | Screw, 10-32 X 5/8 (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 13 | WPW10327522 | Knob, Timer (Replaces: W10327522) |
|
$ 50.97 | |||||
| 14 | WPW10327523 | Knob, Control (Replaces: W10327523) |
|
$ 55.13 | |||||
| 15 | WPW10285512 | Switch, Rotary Encoder (Replaces: W10285512) |
|
Immediately | $ 190.47 | ||||
| 16 | W10291174 | Harness, Upper |
|
$ 253.35 | |||||
| 17 | WPW10432360 | Inlet Assembly, Water (Replaces: W10432360) |
|
$ 253.55 | |||||
| 18 | WPW10352256 | Valve, Water Mixing (Replaces: W10352256) |
|
$ 206.51 | |||||
| 19 | WPW10441423 | Vacuum Break (Replaces: W10441423) |
|
$ 90.33 | |||||
| 20 | W10238347 | Hose, Vacuum Break |
|
$ 25.86 | |||||
| 21 | WP596669 | Clamp, Hose (Replaces: W10117298) |
|
Immediately | $ 8.82 | ||||
| 22 | WPW10344775 | Harness, Valve (Replaces: W10344775) |
|
$ 171.51 | |||||
| 23 | WP8281163 | Screw, 8-16 X 1/2 (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 24 | WP3400818 | Screw, 8-18 X.20 (Replaces: 3400818) |
|
$ 8.81 | |||||
| 25 | WPW10663966 | Clamp (Replaces: W10348582) |
|
$ 224.26 | |||||
| 26 | W10199708 | Badge |
|
$ 53.28 | |||||
| 27 | WPW10251309 | Push Button, Start (Replaces: W10251309) |
|
Immediately | $ 76.00 |
