SELECT A DIAGRAM

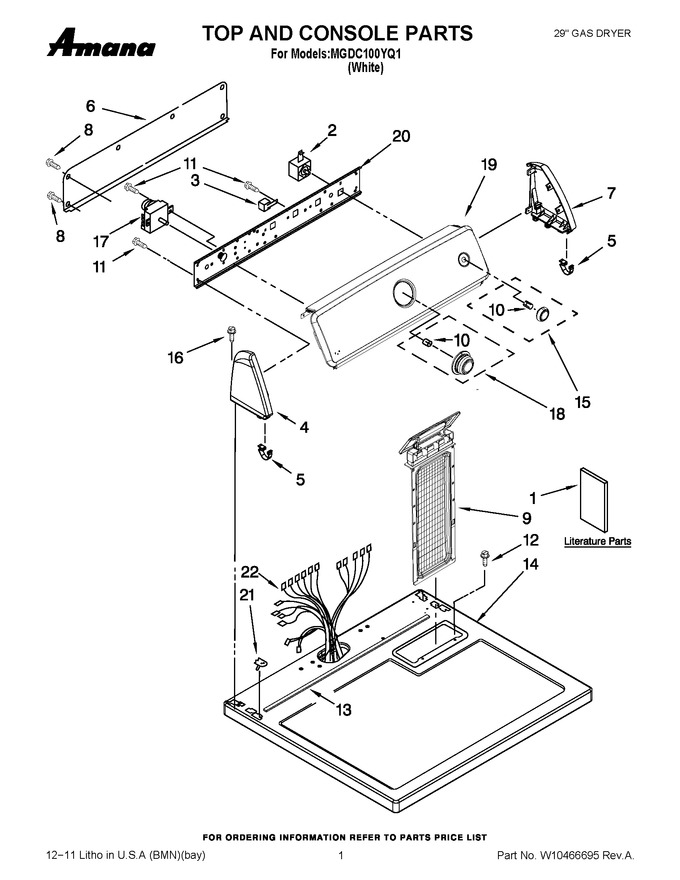

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10336852 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10115228		Instructions, Installation		Appelez-nous	-
1	W10096990		Use & Care Guide		Appelez-nous	-
1	W10185990		Wiring Diagram		Appelez-nous	-
2	WP3404233		Switch, Push-to-start   (Replaces: 3404233)			Immediately	$ 115.10
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
4	WPW10193824		Cap, End (l.h.)   (Replaces: W10193824)				$ 74.39
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W10103406		Panel, Rear Console				$ 135.31
7	WPW10193821		Cap, End (r.h.)   (Replaces: W10193821)				$ 74.72
8	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.55
9	W11778253		Screen, Lint   (Replaces: 8565972)			Immediately	$ 54.63
10	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 8.20
11	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
12	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
13	W10316616		Foam Seal				$ 27.79
14	WPW10225059		Top And Seal Assembly   (Replaces: W10225059)				$ 250.69
15	WPW10317455		Knob, Control   (Replaces: W10317455)				$ 63.33
16	WP90767		Screw, Console   (Replaces: 3348629)			Immediately	$ 8.25
17	W11043385		Timer Assembly   (Replaces: W10185987)				$ 368.35
18	WPW10317454		Timer Knob Assembly   (Replaces: W10317454)				$ 63.47
19	W10295288		Panel, Control		Appelez-nous	-
20	W10236073		Bracket, Control		Appelez-nous	-
21	W11229607		Nut, Push-in   (Replaces: W10298789)			Immediately	$ 8.64
22	W10366760		Harness, Wiring		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
