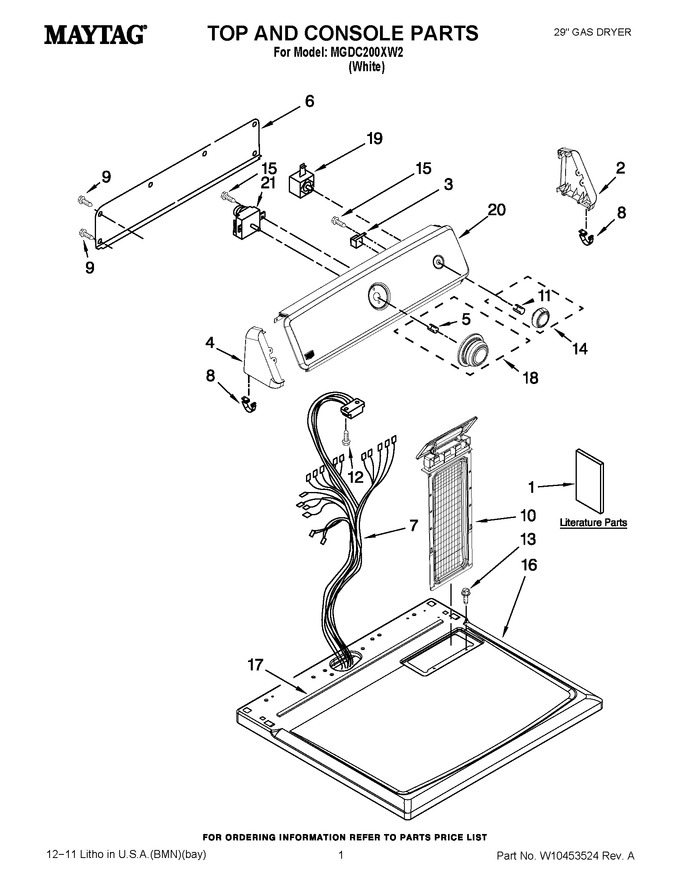

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10336852 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10096990		Use & Care Guide		Appelez-nous	-
1	W10115228		Installation, Instruction		Appelez-nous	-
1	W10185990		Wiring Diagram		Appelez-nous	-
2	WPW10193821		Endcap (r.h.)   (Replaces: W10193821)				$ 71.16
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
4	WPW10193824		Endcap (l.h.)   (Replaces: W10193824)				$ 70.85
5	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.81
6	W10103406		Panel, Rear Console				$ 128.87
7	W10366760		Harness, Wiring		Appelez-nous	-
8	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.19
10	W11778253		Screen, Lint   (Replaces: 8565972)			Immediately	$ 52.03
11	WP8536939		Clip Spring   (Replaces: 8536939)			Immediately	$ 7.81
12	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.82
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	WPW10317455		Knob, Push-to-start   (Replaces: W10317455)				$ 60.31
15	WP90767		Screw, 8-18 X 3/8   (Replaces: 3348629)			Immediately	$ 7.82
16	WPW10225059		Top & Seal Assembly   (Replaces: W10225059)				$ 238.75
17	W10316616		Foam Seal Top				$ 26.47
18	WPW10317454		Knob, Timer Assembly   (Replaces: W10317454)				$ 60.45
19	WP3404233		Switch, Push-to-start   (Replaces: 3404233)			Immediately	$ 109.62
20	W10115474		Console Panel & Bracket Assembly (include Item. 8 )				$ 229.16
21	W11043385		Timer Assembly (60 Hz.)   (Replaces: W10185987)				$ 350.81
