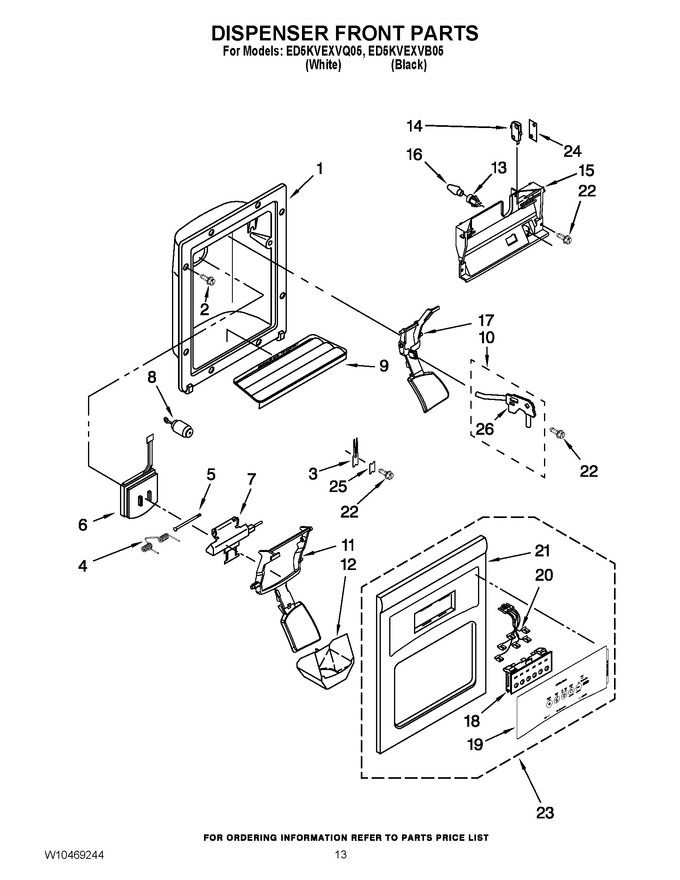

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WP3196557 | Screw 8-18 X 3/8 (Replaces: W10142284) |
|
Immediately | $ 7.95 | ||||
| 3 | WP2194719 | Retainer, Levers (Replaces: 2194719) |
|
Immediately | $ 12.36 | ||||
| 4 | WPW10224328 | Spring, Torsion (Replaces: W10224328) |
|
$ 87.40 | |||||
| 5 | WP2196195 | Pin (Replaces: 2196195) |
|
$ 15.31 | |||||
| 6 | WP2180353 | Door, Ice (Replaces: 2180353) |
|
Immediately | $ 26.83 | ||||
| 7 | 2304355 | Support, Ice Door |
|
- | |||||
| 8 | 2205686 | Mechanism Delay |
|
- | |||||
| 9 | WP2206670B | Grille, Overflow (black) (Replaces: 2206670B) |
|
Immediately | $ 35.52 | ||||
| 9 | WP2206670W | Grille, Overflow (white) (Replaces: 2206670W) |
|
$ 72.24 | |||||
| 10 | 8201537 | Water Fitting Assy (includes Water Tube & Item 26) (Replaces: 2304317) |
|
$ 140.84 | |||||
| 11 | WPW10152854 | Lever, Ice Dispenser (black) (Replaces: W10152854) |
|
$ 109.00 | |||||
| 11 | WPW10152853 | Lever, Ice Dispenser (white) (Replaces: W10152853) |
|
$ 111.84 | |||||
| 12 | WP2180224 | Guide, Ice (Replaces: 2180224) |
|
Immediately | $ 30.02 | ||||
| 13 | 2180200 | Lamp Holder |
|
$ 103.59 | |||||
| 14 | WP2162361 | Switch (Replaces: 2162361) |
|
Immediately | $ 28.71 | ||||
| 15 | WP2180226 | Bracket, Control (Replaces: W10282667) |
|
Immediately | $ 26.97 | ||||
| 16 | WP22002263 | Bulb, Light (Replaces: 3406124) |
|
Immediately | $ 14.85 | ||||
| 17 | WPW10152859 | Lever, Water Dispenser (black) (Replaces: W10152859) |
|
Immediately | $ 102.82 | ||||
| 17 | WPW10152858 | Lever, Water Dispenser (white) (Replaces: W10152858) |
|
$ 109.83 | |||||
| 18 | N/P | Switch Assembly (not Available, Order Item 23) |
|
- | |||||
| 19 | N/P | Overlay, Front Cover (not Available, Order Item 23) |
|
- | |||||
| 20 | N/P | Wire Assembly (not Available, Order Item 23) |
|
- | |||||
| 21 | N/P | Front Cover, Housing (not Available, Order Item 23) |
|
- | |||||
| 22 | WP3400906 | Screw 9-12 X 1/2 (Replaces: W10141632) |
|
$ 9.05 | |||||
| 23 | 2315251W | Front Cover Assembly (includes Items 18, 19, 20 & 21) (white) |
|
- | |||||
| 23 | 2315251B | Front Cover Assembly (includes Items 18, 19, 20 & 21) (black) |
|
- | |||||
| 24 | 625834 | Spacer, Switch |
|
$ 7.99 | |||||
| 25 | WP2195051 | Strain Relief (Replaces: 2195051) |
|
$ 12.54 | |||||
| 26 | WP2304673 | Bracket, Dispenser (Replaces: 2304673) |
|
$ 16.38 |
