SELECT A DIAGRAM

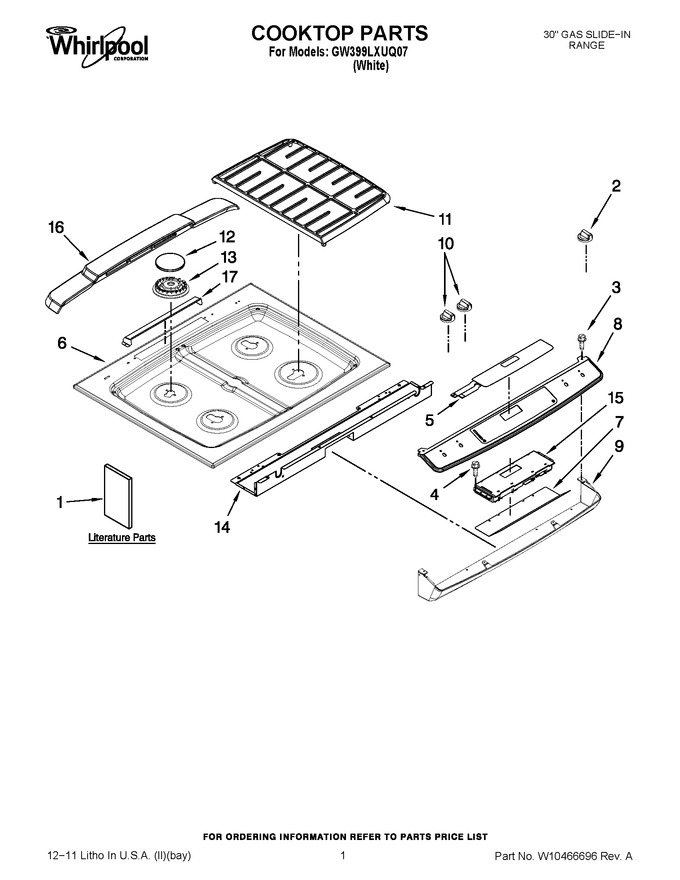

01 - Cooktop Parts


02 - Chassis Parts


03 - Manifold Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10441603		Diagram, Wiring (french)		Appelez-nous	-
1	8113P679-60		Owners Manual		Appelez-nous	-
1	W10394682		Diagram, Wiring (english)		Appelez-nous	-
1	8113P681-60		Installation Instructions		Appelez-nous	-
1	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
2	W10177198		Knob, (accusimmer)   (Replaces: 7733P533-60)				$ 84.89
3	7101P501-60		Screw		Appelez-nous	-
4	WP59002061		Screw   (Replaces: 7101P077-60)				$ 8.18
5	WPW10207935		Membrane, Switch   (Replaces: W10207935)				$ 347.49
6	W10202564		Cooktop		Appelez-nous	-
7	W10166279		Shield, Control		Appelez-nous	-
8	7720P532-60		Panel, Control		Appelez-nous	-
9	W10185607		Panel,control(lwr)				$ 125.65
10	W10177197		Knob, Valve   (Replaces: 7733P527-60)				$ 20.29
11	7518P486-60		Grate, Burner		Appelez-nous	-
12	WPW10169975		Cap, Burner (set) (wetstone)   (Replaces: W10169975)				$ 70.50
13	WPW10406797		Base, Burner (12k Rr, Lf)   (Replaces: 8286182)				$ 92.91
13	WPW10406243		Base, Burner (5k Lr)   (Replaces: 8286181)			Immediately	$ 39.08
13	WPW10406878		Base, Burner (16k Rf)   (Replaces: 8286183)				$ 107.48
14	3807F769-51		Support, Cntl Pnl		Appelez-nous	-
15	8507P391-60		Control, (erc)				$ 421.07
16	7724P202-60		Cover, Vent		Appelez-nous	-
17	3601F221-45		Baffle, Vent Cover				$ 28.30

    View Diagram in Separate Window       Print Part List
