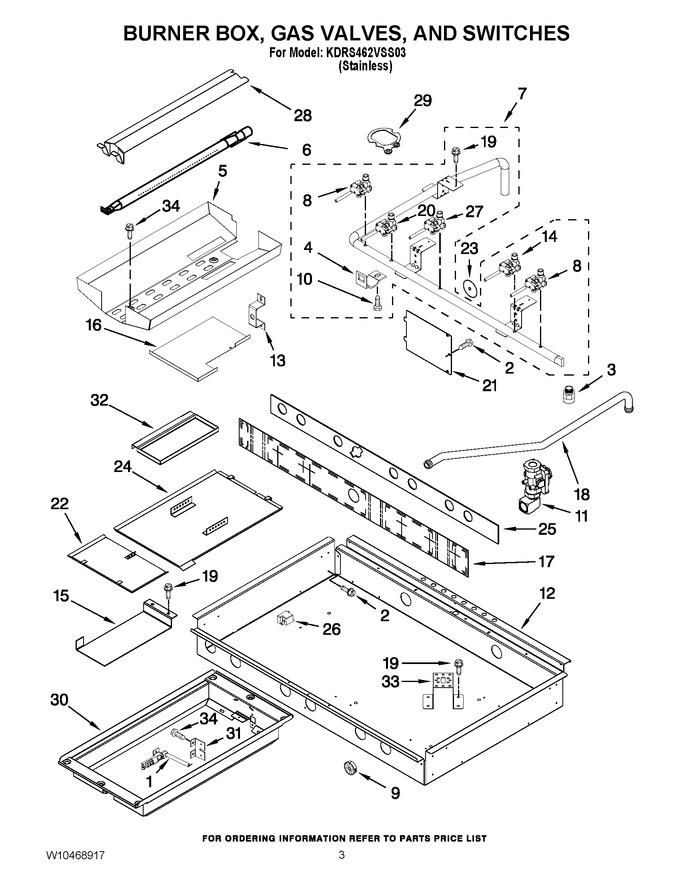

02 - Burner Box, Gas Valves, And Switches


03 - Chassis Parts


04 - Top Venting Parts


05 - Oven Parts


06 - Oven Door Parts


07 - Internal Oven Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10268770		Ignitor, Grill				$ 161.69
2	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
3	4453116		Adapter (male)				$ 179.43
3	4453115		Adapter (female)				$ 126.70
4	WPW10432260		Bracket, Valve   (Replaces: W10432260)				$ 73.99
5	W10269564		Deflector, Grill				$ 173.90
6	W10223569		Burner, Grill				$ 258.87
7	W10402600		Manifold		Appelez-nous	-
8	WPW10385582		Valve, Single (lr,rf)   (Replaces: W10385582)			Immediately	$ 340.85
9	W10189097		Bushing, Burner Box				$ 8.00
10	W10189140		Screw, Valve Mtg				$ 6.82
11	W10293267		Regulator,pressure				$ 313.91
12	W10371512		Burner Box		Appelez-nous	-
13	W10250475		Bracket, Grill Orifice Mounting		Appelez-nous	-
14	WPW10385583		Valve, Single (rr)   (Replaces: W10385583)			Immediately	$ 332.10
15	W10272139		Shield, Grease		Appelez-nous	-
16	W10250474		Holder, Drip Tray		Appelez-nous	-
17	W10247075		Insulation, Grill   (Replaces: W10294030)		Appelez-nous	-
18	W10269191		Tube, Pressure Regulator				$ 217.69
19	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
20	WPW10371235		Valve, Gas (lf)   (Replaces: W10371235)			Immediately	$ 268.41
21	W10115843		Cover, Ignition		Appelez-nous	-
22	W10250468		Drip Tray, Router 2		Appelez-nous	-
23	W10423373		Seal, Switch Cover		Appelez-nous	-
24	W10250470		Drip Tray, Router 1				$ 128.77
25	W11688578		Insulation   (Replaces: W10145622)		Appelez-nous	-
26	W11601369		Reignitor, Gas   (Replaces: W10116108)			Immediately	$ 67.35
27	W10385584		Valve, Gas Grill		Appelez-nous	-
28	W10250462		Flame Spreader				$ 92.34
29	8286930		Gasket, Orifice				$ 95.73
30	WPW10267890		Module, Grill   (Replaces: W10267890)				$ 471.83
31	W10250461		Bracket, Grill Ignitor		Appelez-nous	-
32	W10250473		Drip Tray				$ 224.39
33	W10369547		Bracket, Burner		Appelez-nous	-
34	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
NI	W10353154		Tubing, Gas (lf)			Immediately	$ 172.78
NI	W10353141		Tubing, Gas (rf)				$ 175.16
NI	WPW10353133		Tubing, Gas (rr)   (Replaces: W10353133)				$ 174.89
NI	W10280797		Tubing, Gas (lr)		Appelez-nous	-
NI	W10353152		Tubing, Gas (lf)				$ 78.93
NI	W10158807		Tubing, Gas (grill)				$ 94.65
