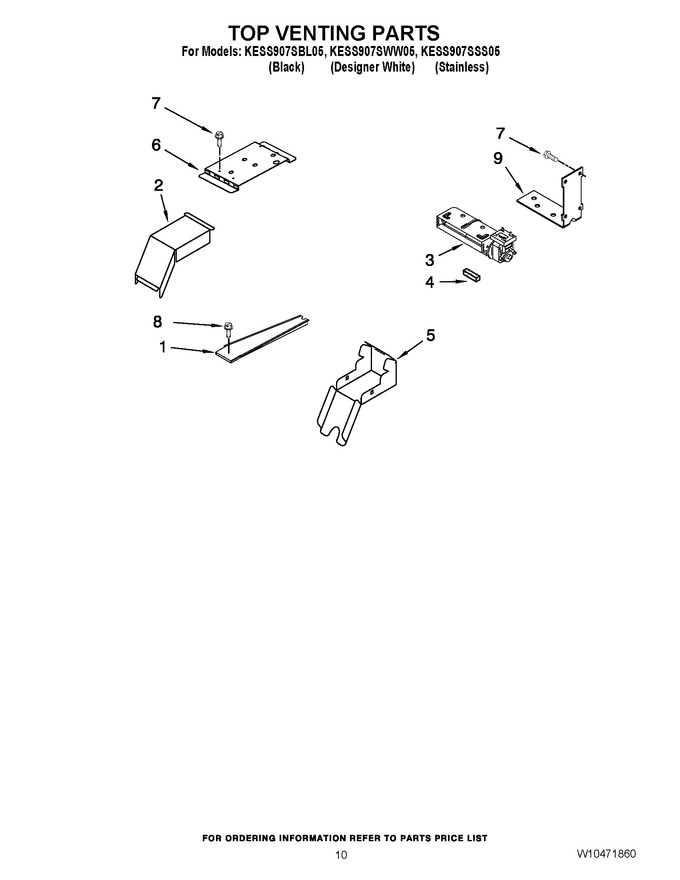

07 - Top Venting Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4451759 | Vent, Exhaust |
|
$ 105.01 | |||||
| 2 | 4455178 | Elbow, Vent Top |
|
$ 15.52 | |||||
| 3 | W10810687 | Blower (Replaces: 9759320) |
|
Immediately | $ 343.34 | ||||
| 4 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 5 | 4455177 | Elbow, Vent Bottom |
|
$ 11.39 | |||||
| 6 | W10143041 | Bracket, Terminal Box |
|
- | |||||
| 7 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 8 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 9 | WP4455352 | Bracket, Blower (Replaces: 4455352) |
|
$ 37.51 |
