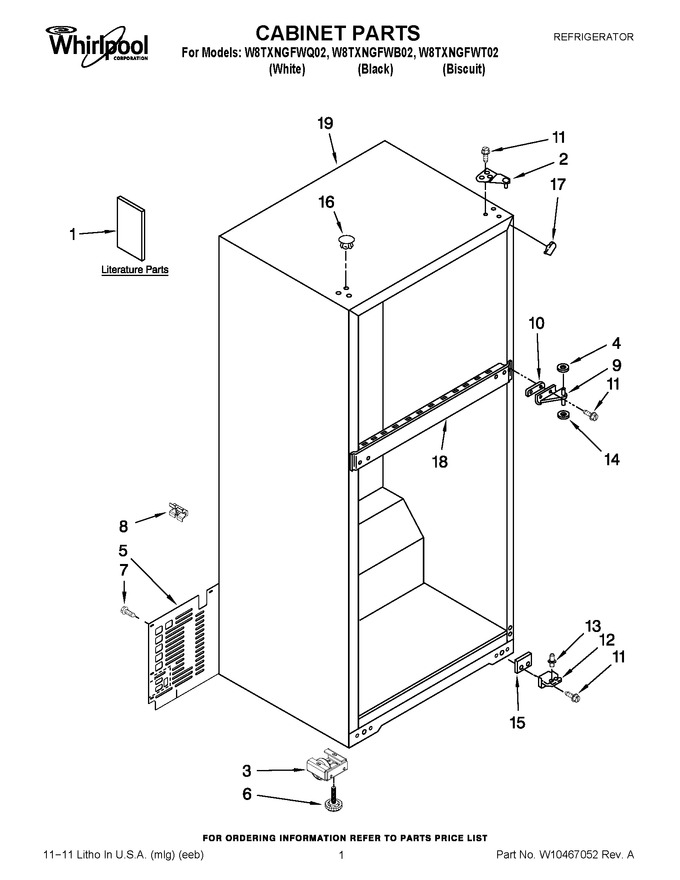

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2316016 | Use & Care Guide |
|
- | |||||
| 1 | W10402929 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10231786 | Energy Guide |
|
- | |||||
| 1 | 677969 | Do-it-yourself Manual, Ref./ Fzr. |
|
$ 30.30 | |||||
| 2 | WP2261963 | Hinge Butt, Top (Replaces: 2261963) |
|
Immediately | $ 99.45 | ||||
| 3 | WPW10142530 | Roller, Front (includes Item 6) (Replaces: W10142530) |
|
Immediately | $ 118.10 | ||||
| 4 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 11.42 | ||||
| 5 | WP2264132 | Cover, Unit (Replaces: 2264132) |
|
$ 113.77 | |||||
| 6 | WPW10133299 | Leveler (Replaces: W10133299) |
|
$ 12.35 | |||||
| 7 | WP489442 | Screw 8-18 X .600 (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 8 | 2266506 | Spacer, Back |
|
$ 14.39 | |||||
| 9 | WP2166037 | Hinge, Center (Replaces: 2166086) |
|
$ 85.08 | |||||
| 10 | 2166043 | Hinge Shim, Center |
|
$ 69.76 | |||||
| 11 | WP489497 | Screw 12-24 X .700 (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 12 | WP2325482 | Hinge Butt, Bottom (Replaces: 2325482) |
|
Immediately | $ 80.00 | ||||
| 13 | WP2325483 | Hinge Pin, Bottom (Replaces: 2325483) |
|
Immediately | $ 7.55 | ||||
| 14 | WP487576 | Washer, Nylon (Replaces: 487576) |
|
Immediately | $ 9.88 | ||||
| 15 | WP2201567 | Hinge Shim, Bottom (Replaces: 2201567) |
|
Immediately | $ 8.16 | ||||
| 16 | WP2151652 | Hole Plug (white) (Replaces: 2201012) |
|
$ 22.87 | |||||
| 16 | WP2183998 | Hole Plug (black) (Replaces: 2183998) |
|
$ 19.01 | |||||
| 16 | 2200924 | Hole Plug (biscuit) |
|
- | |||||
| 17 | W10859322 | Corner Filler (white) (Replaces: 2166003) |
|
$ 8.09 | |||||
| 17 | W11500943 | Corner Filler (black) (Replaces: 2215384) |
|
$ 7.98 | |||||
| 17 | 2202282 | Corner Filler (biscuit) |
|
- | |||||
| 18 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 19 | N/P | Cabinet (not Serviced) |
|
- |
