SELECT A DIAGRAM

1 - Doors


2 - Cabinet


3 - Unit Parts

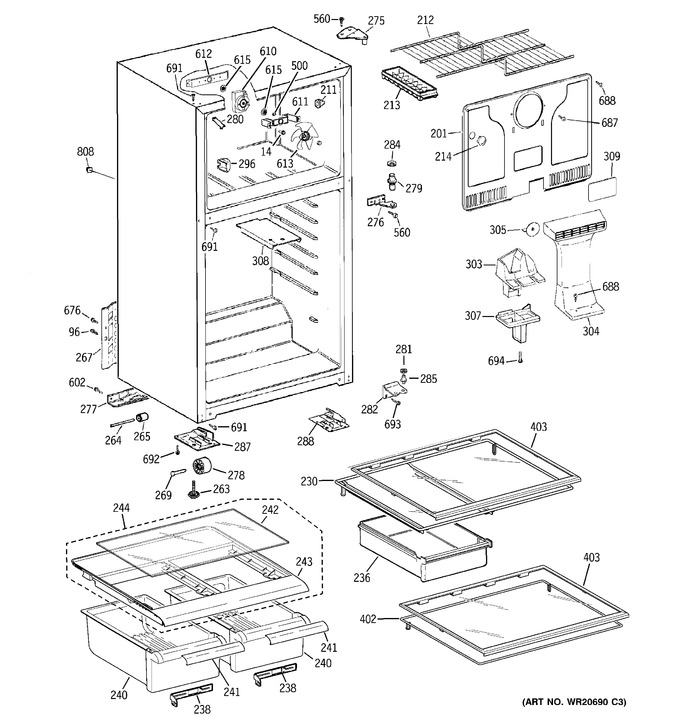

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	WR01X10594		Scr 8-36 T Hxw 3/8 S		Appelez-nous	-
96	WR1X2009		Screw Asm		Appelez-nous	-
201	WR17X11887		Cover Evap Asm		Appelez-nous	-
211	WG03A00098		Support Shlf   (Replaces: WR2X8429)				$ 4.20
212	WG03F01596		Shlf Asm Fz   (Replaces: WR71X2086)				$ 154.18
213	WR30X311		Tray Ice		Appelez-nous	-
214	WR02X11760		Plug Button		Appelez-nous	-
230	WG03L01578		Shelf Full Glass   (Replaces: WR71X10844)				$ 42.88
236	WG03L01477		Pan Meat   (Replaces: WR32X1448)				$ 194.57
238	WR17X11658		Slide Pan Veg Humidity		Appelez-nous	-
240	WG03L00654		Pan Veg Humidity   (Replaces: WR32X10479)				$ 165.33
241	WR38X10409		Trim Veg Pan Humidity		Appelez-nous	-
242	WG03L00732		Glass Shelf   (Replaces: WR32X10480)			Immediately	$ 93.58
243	WG03L00621		Cover Veg Pan   (Replaces: WR17X11662)			Immediately	$ 153.75
244	WR01L08642		Veg Pan Cover W/glass   (Replaces: WR32X10500)				$ 166.23
263	WG03F01630		Glider Adj   (Replaces: WR2X7877)				$ 18.13
264	WG03F01631		Axle Wheel Rear   (Replaces: WR2X8214)				$ 4.20
265	WG03L00759		Wheel Mobility Rear   (Replaces: WR2X8245)			Immediately	$ 9.20
267	WR82X10112		Cover Access		Appelez-nous	-
269	WG03L00748		Axle Wheel Front   (Replaces: WR02X12267)				$ 4.20
275	WG03L03905		Hinge Top & Pin Asm   (Replaces: WR13X10332)				$ 26.34
275	WG03L00753		Hng Top/pin Wht   (Replaces: WR13X10320)				$ 52.61
276	WR13X10419		Hinge Ctr & Pin Asm		Appelez-nous	-
276	WR13X10420		Hinge Ctr & Pin Asm		Appelez-nous	-
277	WR17X3188		Rail Rear		Appelez-nous	-
278	WG03L00758		Wheel, Front   (Replaces: WR2X8244)				$ 12.71
279	WR2X8232		Pin Hinge Ctr		Appelez-nous	-
280	WG03L00745		Cap Corner Oc Wh   (Replaces: WR02X10703)				$ 6.09
280	WR02X10749		Cap Corner Oc Bk		Appelez-nous	-
281	WG03L08792		Washer Hinge Brown   (Replaces: WR01X10146)			Immediately	$ 3.97
282	WG03L05308		Hinge Bottom   (Replaces: WR13X10886)				$ 24.78
282	WR13X10898		Hinge Bottom		Appelez-nous	-
284	WG03A00237		Spacer Door Fz   (Replaces: WR1X1794)			Immediately	$ 3.97
285	WG03L08909		Metal Hinge Pin   (Replaces: WR02X12238)				$ 12.71
287	WR2X8709		Gusset Lh		Appelez-nous	-
288	WR2X8708		Gusset Rh		Appelez-nous	-
296	WR02X11123		Cover Im Receptacle		Appelez-nous	-
303	WG03L01241		Duct Foam   (Replaces: WR02X12019)				$ 30.18
304	WG03F01623		Duct Air Fz   (Replaces: WR17X11891)				$ 90.06
305	WR02X12942		Actuator Air		Appelez-nous	-
307	WR02X11793		Diffuser Air Ff Asm		Appelez-nous	-
308	WR2X8428		Insul Elect		Appelez-nous	-
309	WR02X12020		Gasket Air Duct		Appelez-nous	-
402	WG03L01577		Shelf Glass Frm Slides   (Replaces: WR71X10845)			Immediately	$ 73.76
403	WR32X10481		Shelf Full Asm Encap Gls		Appelez-nous	-
500	WR01A00163		Bumper Lid   (Replaces: WR02X10540)			Immediately	$ 6.35
560	WR1X1249		Screw		Appelez-nous	-
602	WR01X10592		Scr 1/4-14 Ab Ihw 3/4 S		Appelez-nous	-
610	WG03F07855		Motor Ac/dc Evap Fan   (Replaces: WR60X10141)			Immediately	$ 136.29
611	WR02X10516		Brkt Evap Fan Frt		Appelez-nous	-
612	WG03A02567		Bracket Evap Fan Rear   (Replaces: WR21X10152)				$ 19.06
613	WG03F10250		Blade Evap Fan Asm   (Replaces: WR60X10204)			Immediately	$ 11.12
615	WG03F00306		Grommet Evap Fan   (Replaces: WR02X12008)			Immediately	$ 6.99
676	WZ04X0263		Scr 10-16 Ab Hxw 1/2		Appelez-nous	-
687	WR01X10589		Scr 8-15 Ab Ihxw 1/2 S		Appelez-nous	-
688	WR01X10448		Scr 8-19 Hi/lo Trp 1 S		Appelez-nous	-
691	WR01A01036		Scr 12-24 .7   (Replaces: WR1X1753)				$ 3.97
692	WR01X10593		Scr 8-18 Ab Ihxw 3/4 S		Appelez-nous	-
693	WG03A00439		Scr 12-24 Tt Ovt20 .900   (Replaces: WR01X10591)				$ 4.20
694	WR1X1792		Screw		Appelez-nous	-
808	WR2X4039		Adhesive Clip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
