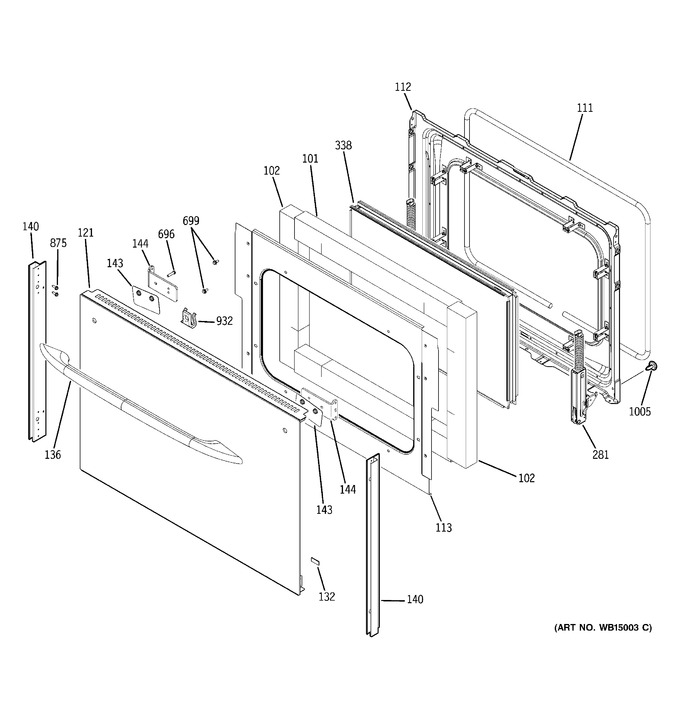

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	WB35T10072		Insulation Ovn Dr Top		Appelez-nous	-
102	WB35K10025		Insulation Oven Dr Sde		Appelez-nous	-
111	WG02F02072		Gasket Oven Door   (Replaces: WB04T10050)			Immediately	$ 78.03
112	WB55T10148		Liner Oven Dr Asm		Appelez-nous	-
113	WB02T10371		Retainer Insln Ovn Dr		Appelez-nous	-
121	WB56T10299		Panel Asm Bonded		Appelez-nous	-
132	WB01T10026		Door Pad		Appelez-nous	-
136	WG02L01605		Handle (wh)   (Replaces: WB15T10176)				$ 172.20
136	WG03L01705		Handle (wh)   (Replaces: WB15T10188)				$ 328.78
140	WB56T10314		Frame Door Side		Appelez-nous	-
143	WB02T10496		Spacer Bracket Handle		Appelez-nous	-
144	WB02T10349		Bracket Handle		Appelez-nous	-
281	WB10T10107		Hinge Door Lt		Appelez-nous	-
281	WB10T10106		Hinge Door Rt		Appelez-nous	-
338	WB55T10160		Pack Window Asm		Appelez-nous	-
696	WB1K5156		Screw		Appelez-nous	-
696	WZ04X0416		Scr 8-18 Ab Hxw 3/4		Appelez-nous	-
699	WB1K5150		Screw St10-16 X 7/16"		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.97
932	WG02L02436		Clip Spacer Door   (Replaces: WB02T10497)				$ 9.53
1005	WS01A01018		Screw 10-32 Tr T   (Replaces: WB01T10008)			Immediately	$ 5.97
	WG02L02960		Rangetop Glass Asm				$ 556.62
