SELECT A DIAGRAM

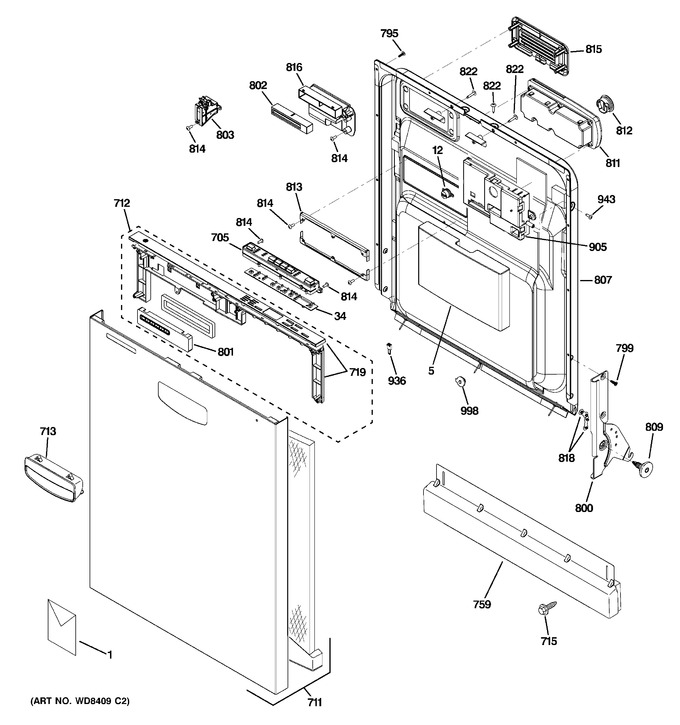

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WD31X10148		Heat Shield		Appelez-nous	-
1	31-30284		Pm Install Instructions		Appelez-nous	-
1	31-30635		Pm Mini Manual		Appelez-nous	-
1	49-55077		Pm Manual Use & Care		Appelez-nous	-
1	WD02X10208		Scr 10-32 Tt Hxw 7/16 S		Appelez-nous	-
5	WD12X10361		Shield Board Top		Appelez-nous	-
12	WD01X10515		Tco Assembly		Appelez-nous	-
34	WD21X10471		Control Tactile Asm Kit		Appelez-nous	-
705	WD01X10516		Button Asm Silicon Bb		Appelez-nous	-
711	WD34X11715		Outer Panel And Lens Asm		Appelez-nous	-
712	WD27X10318		Console Asm Kit		Appelez-nous	-
713	WG04L02227		Handle Asm Pocket Silver   (Replaces: WD09X10078)				$ 88.26
715	WD02X10085		Screw 8-18 B 1hw 1/2 S N		Appelez-nous	-
719	WD27X10277		Console Asm Bb		Appelez-nous	-
759	WG04L03152		Toekick Asm   (Replaces: WD27X10278)				$ 88.26
795	WG03A00188		Scr 8-18 Ab Tsq 5/8 Ss   (Replaces: WR01X10380)				$ 3.97
799	WD02X10201		Scr 10-24 Tap Rnp 1/2		Appelez-nous	-
800	WD14X10047		Arm Hinge Rh Asm		Appelez-nous	-
800	WG04L01512		Arm Hinge Lh Asm   (Replaces: WD14X10046)				$ 217.35
801	WD01X10524		Louver Kit Stainless		Appelez-nous	-
802	WD01X10559		Foam Vent Wh		Appelez-nous	-
803	WG04F06796		Latch Asm - 1 Switch   (Replaces: WD13X10058)				$ 65.12
807	WD31X10126		Door Inner & Gasket		Appelez-nous	-
809	WG04A01243		Screw 10-32gx Flt25 615   (Replaces: WD02X10084)				$ 3.97
811	WG04F00692		Module Rinse And Cap Asm   (Replaces: WD12X10163)			Immediately	$ 171.12
812	WG04L00093		Cap Rinse Asm   (Replaces: WD12X10122)				$ 39.70
813	WG04A00035		Bracket Detergent Displa   (Replaces: WD01X10207)				$ 6.35
814	WD02X10104		Scr 8-10 Pl Trp 1/2 S		Appelez-nous	-
815	WG04L01582		Cover Vent   (Replaces: WD12X10127)				$ 30.18
816	WD01X10543		Vent Asm		Appelez-nous	-
818	WG04L01539		Bearing Hinge Arm   (Replaces: WD12X10313)				$ 10.54
822	WG04A00378		Screw   (Replaces: WD2X444)				$ 3.97
905	WG04A01076		Control Tactile Asm Kit   (Replaces: WD21X10470)				$ 268.19
936	WD21X10464		Model Selector Plug Asm		Appelez-nous	-
943	WZ05X0219		Screw		Appelez-nous	-
998	WD01X10563		Lens Asm Kit Ss		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
