SELECT A DIAGRAM

01 - Cover


03 - Freezer Door


05 - Refrigerator Door


07 - Cabinet


09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


22 - Wiring Schematic


23 - Wiring Diagram

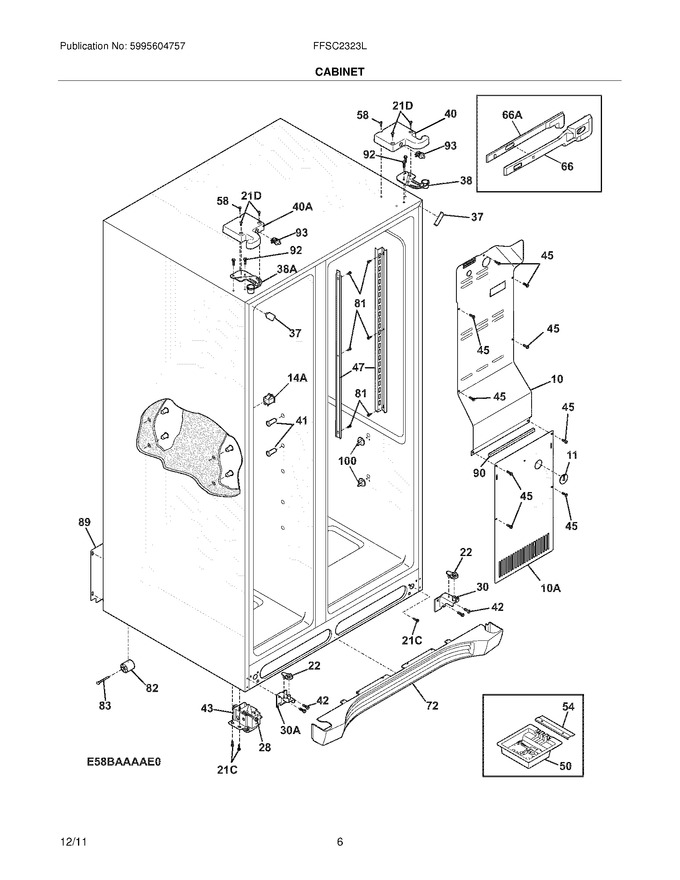

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	241509804		Cover-air Duct				$ 133.35
11	5303208309		Plug-hole, Factory Test				$ 50.56
22	241917801		Plate-door Closer				$ 7.88
28	5304499445		Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special   (Replaces: 240335502)			Immediately	$ 34.81
30	241918001		Bracket-lower Hinge,rh ,w/hinge Pin   (Replaces: 241917901)				$ 73.24
37	240337610		Trim-cabinet Corner,black ,(2)				$ 5.63
38	241761301		Bracket-upper Hinge,rh				$ 73.61
40	241946705		Cover-upper Hinge,black ,rh				$ 48.04
41	241550801		Grommet-shelf Mtg,1.40`` Long				$ 70.78
42	240578902		Screw,hex Head ,1/4-20 X 5/8			Immediately	$ 15.75
43	5304499445		Roller Assy,front ,(2)   (Replaces: 240335006)			Immediately	$ 34.81
45	241500303		Screw,hex Washer Head ,8-18ab X 1/2			Immediately	$ 5.06
47	241513001		Channel-shelf Mtg,side ,(2)				$ 124.71
54	241532401		Channel				$ 33.86
58	218781101		Screw,pan Head ,8-18 X 0.625				$ 17.33
66	241861301		Housing-damper				$ 88.47
72	241969403		Grille/kickplate,black				$ 92.69
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 15.75
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 57.30
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin			Immediately	$ 39.27
89	5304520905		Cover-access,w/label   (Replaces: 241733902)			Immediately	$ 82.25
90	218249808		Seal-coil Cover		Appelez-nous	-
92	241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg				$ 14.96
93	241911709		Switch,plunger Style   (Replaces: 241911704)				$ 24.43
100	241993101		Support-crisper Cvr			Immediately	$ 6.24
10A	241719711		Cover-evap Coil,lower				$ 117.55
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 15.75
21D	241548003		Screw,10-32 X 3/8				$ 3.37
30A	241917902		Bracket-lower Hinge,lh ,w/hinge Pin		Appelez-nous	-
38A	241761302		Bracket-upper Hinge,lh				$ 71.66
40A	241946706		Cover-upper Hinge,black ,lh				$ 48.04
66A	241861201		Slide-damper,meat Pan				$ 42.48
F100	241993001		Support-crisper Cvr			Immediately	$ 21.37
F14A	241547902		Switch-light/lamp,frzr Door   (Replaces: 241547901)			Immediately	$ 25.83
F40A	241891901		Harness-wiring,freezer		Appelez-nous	-
F50	5303918525		Board-main Power   (Replaces: 242009011)			Immediately	$ 781.67
FNI	241835801		Harness-wiring				$ 20.22
NI	218755402		Screw-set,10-32 X 0.375			Immediately	$ 36.67
NI	240494001		Plug,button ,cab Liner Holes   (Replaces: 240479601)			Immediately	$ 20.22
NI	241890601		Louver,air Supply ,crisper				$ 15.60
NI	241890604		Louver,air Supply ,crisper		Appelez-nous	-
NI	242125401		Scoop,air		Appelez-nous	-
NI	242125501		Insulator-damper				$ 17.33
NI	241781601		Seal-return Air				$ 10.11
NI	5303321321		Paint,touch-up,black			Immediately	$ 24.41
NI	240346703		Tape-foam				$ 2.53
NI	241852501		Clip,wiring Harness				$ 17.33
NI	241550701		Grommet-shelf Mtg,.96`` Long				$ 20.22

    View Diagram in Separate Window       Print Part List
