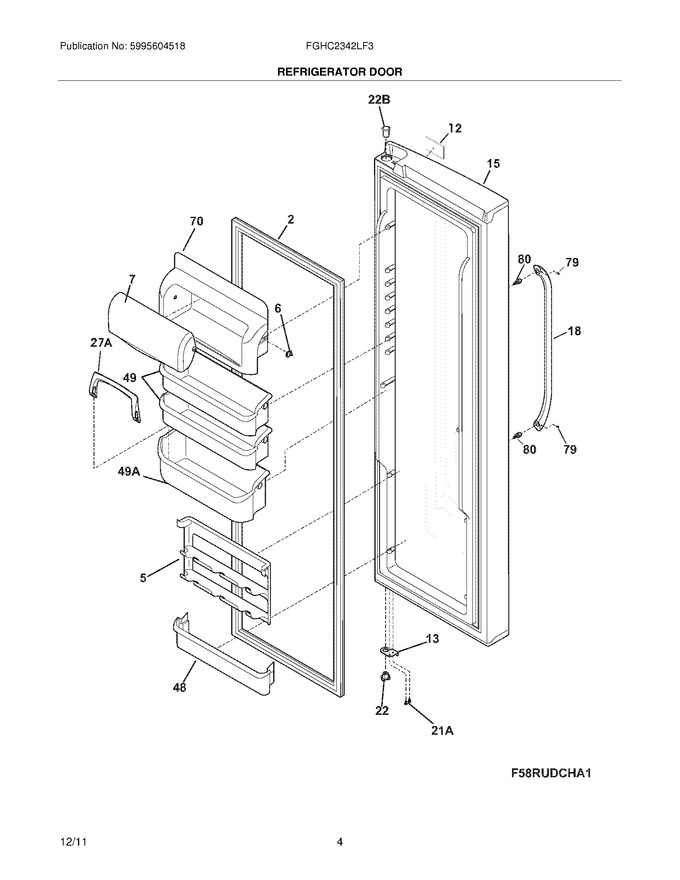

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	241516102		Rack-can				$ 101.54
6	241515901		Lug-dairy Compartment				$ 47.19
7	241515606		Door-dairy   (Replaces: 241515601)				$ 45.51
12	242015201		Label-nameplate			Immediately	$ 7.67
13	241942603		Door Stop,black ,ref				$ 22.84
15	241837282		Door-refr,stainless ,complete Assy				$ 404.37
18	241930101		Handle-door,stainless				$ 178.76
22	241990301		Bearing-hinge,gray				$ 7.88
48	241511701		Bin-door,ref			Immediately	$ 74.68
49	241505301		Bin-door,2-liter			Immediately	$ 84.89
70	241515801		Compartment-dairy,removable				$ 197.66
79	218755405		Screw-set,10-32 X 0.650			Immediately	$ 22.84
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 20.67
21A	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 9.27
22B	241760404		Bearing,hinge ,top				$ 14.18
27A	240396102		Retainer,tall Bottle				$ 21.26
49A	241505501		Bin-door,gallon			Immediately	$ 110.03
F2	241510207		Gasket-refr Door,black ,magnetic   (Replaces: 241510203)			Immediately	$ 107.93
