SELECT A DIAGRAM

01 - Cover


03 - Doors


05 - Cabinet

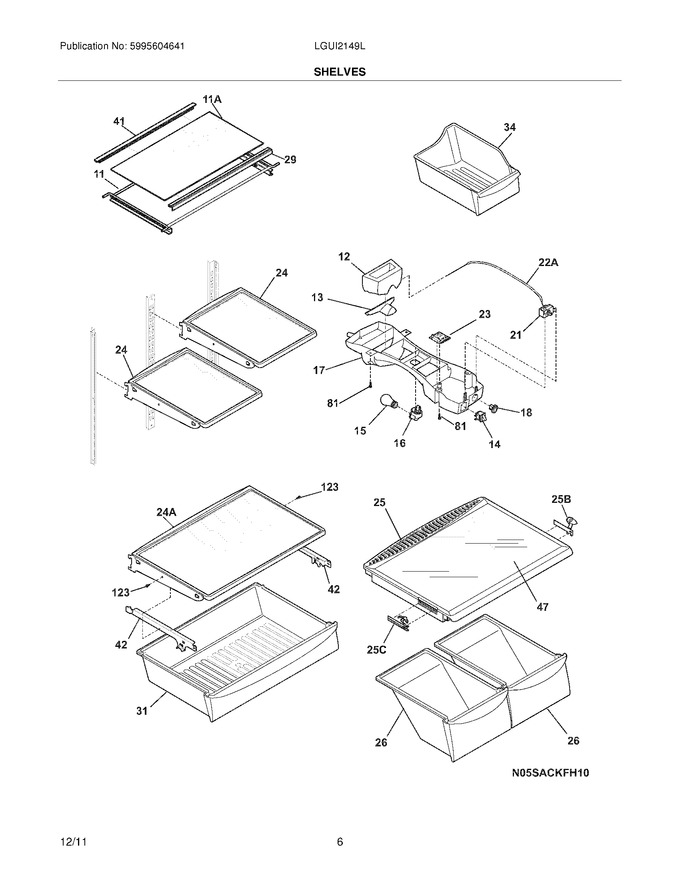

07 - Shelves


09 - System


11 - Ice Maker


12 - Wiring Schematic


13 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	242087801		Frame-shelf,full Width		Appelez-nous	-
12	240545901		Diffuser-air,top				$ 77.96
13	240362601		Diffuser-air,bottom			Immediately	$ 46.46
15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 22.75
16	241559801		Socket-light				$ 80.75
17	240368105		Box-control,front   (Replaces: 240368103)			Immediately	$ 144.93
18	240360801		Knob-temp Control				$ 43.95
24	240355261		Shelf-``spill-safe``,fixed				$ 168.53
25	240364790		Cover-crisper Pan				$ 135.66
26	240343803		Pan-crisper,(2)			Immediately	$ 191.01
29	242110901		Trim-shelf,front		Appelez-nous	-
31	242090001		Pan-meat		Appelez-nous	-
34	240385201		Container,ice Bin				$ 108.70
41	242111001		Trim-shelf,rear				$ 19.24
42	242089802		Track,meat Pan Hanger ,lh				$ 18.74
42	242089801		Track,meat Pan Hanger ,rh				$ 20.08
47	240350609		Insert-pan Cover,glass				$ 180.33
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 15.75
123	215005101		Screw,hanger/rlr Mtg ,8-10 X 7/16				$ 16.54
11A	242087901		Glass-shelf,full Shelf		Appelez-nous	-
22A	240468202		Tube,sensor Sleeve ,31 Inch ,plastic ,white				$ 10.11
24A	240408910		Shelf-``spill-safe``,cantilever Fixe		Appelez-nous	-
25B	241613501		Control-humidity,rh			Immediately	$ 13.39
25C	241613502		Control-humidity,lh				$ 53.09
F14	241554901		Switch-light/lamp				$ 78.75
F21	241537103		Control-temperature   (Replaces: 5304445058)			Immediately	$ 80.34
F23	242011003		Control-defrost,adaptive Timer ,pc Board		Appelez-nous	-
FNI	242081702		Wiring Harness,control Box		Appelez-nous	-
NI	242028590		Energy Guide		Appelez-nous	-
NI	5304455649		Screw,pan Hd ,6-20 X 0.438				$ 18.90
NI	218743613		Tape,aluminum ,3`` X 7``		Appelez-nous	-
NI	240349801		Clip-slide,pan-crisper				$ 22.75
NI	240362101		Clip-slide,cover-crisper				$ 52.25
NI	241768601		Support-crspr Cover				$ 21.26

    View Diagram in Separate Window       Print Part List
