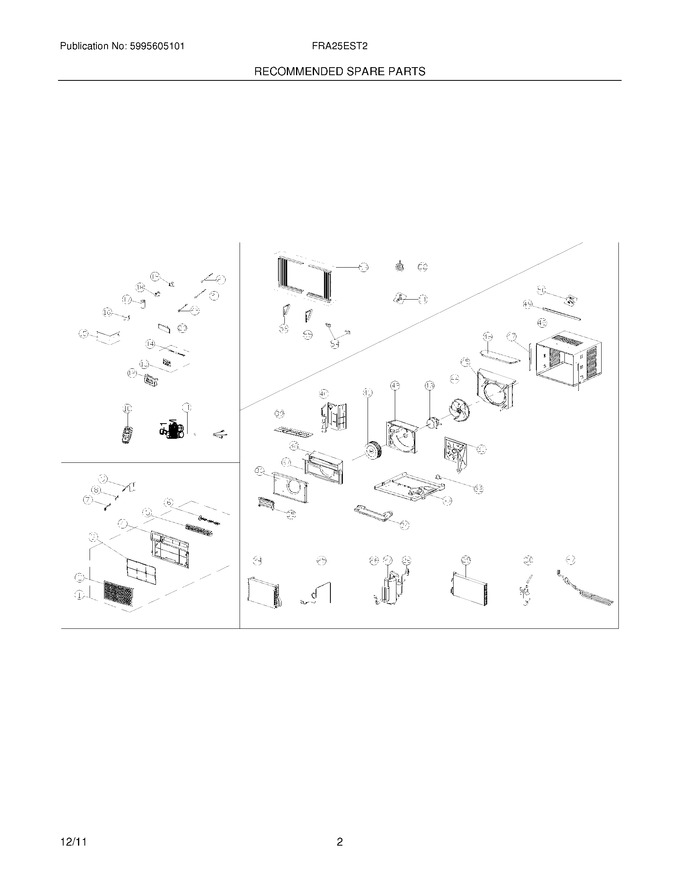

03 - Recommended Spare Parts
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304472319 | Panel,front Grille ,tilt-out |
|
- | |||||
| 4 | 5304472335 | Panel,frame ,front |
|
- | |||||
| 12 | 5304477282 | Control Panel,with Overlay |
|
- | |||||
| 15 | 5304477191 | Control Box |
|
- | |||||
| 16 | 5304472399 | Strap,capacitor Clamp |
|
- | |||||
| 31 | 5304472351 | Bulkhead,partition ,front/right |
|
- | |||||
| 33 | 5304477279 | Base,unit Chassis |
|
- | |||||
| 34 | 5304472343 | Tray,drip Pan ,foam |
|
- | |||||
| 36 | 5304477280 | Shield,heater Housing |
|
- | |||||
| 37 | 5304472340 | Scroll,front ,bottom |
|
- | |||||
| 38 | 5304477281 | Scroll,blower Housing ,top |
|
- | |||||
| 39 | 5304472352 | Cover,blower Scroll ,front |
|
- | |||||
| 40 | 5304472350 | Bulkhead,partition ,front/left |
|
- | |||||
| 42 | 5304472342 | Scroll,blower Housing ,rear |
|
- | |||||
| 45 | 5304472355 | Shroud,condenser/fan |
|
- | |||||
| 46 | 5304472354 | Cover,condenser/fan ,rear |
|
- | |||||
| 47 | 5304472361 | Retainer,shutter ,cabinet Sides |
|
- | |||||
| 48 | 5304482943 | Cabinet,wrapper/sleeve |
|
- | |||||
| 49 | 5304472363 | Rail,shutter Track ,top Angle |
|
- | |||||
| 50 | 5304472364 | Screw Kit,top Rail Mount |
|
- | |||||
| 51 | 5304472365 | Hardware,mounting ,screws/locks |
|
- | |||||
| 52 | 5304472366 | Seal Kit,foam ,sash & Rails |
|
- | |||||
| 53 | 5304472357 | Window Filler Kit,slider Panel |
|
- | |||||
| 54 | 5304472360 | Bracket,sill Angle |
|
- | |||||
| 55 | 5304482944 | Bracket,mounting,right Window |
|
- | |||||
| 56 | 5304482945 | Bracket,mounting,left Window |
|
- | |||||
| F1 | 5304472318 | Front Assembly,complete Panel |
|
- | |||||
| F10 | 5304476631 | Remote Control,transmitter |
|
- | |||||
| F11 | 5304476999 | Power Cord,lcdi ,test/reset |
|
- | |||||
| F13 | 5304472397 | Pc Board,display/input |
|
- | |||||
| F14 | 5304482531 | Wire,connector ,pc Boards |
|
- | |||||
| F17 | 5304472621 | Capacitor,compressor |
|
- | |||||
| F18 | 5304521130 | Capacitor,fan Motor (Replaces: 5304472609) |
|
- | |||||
| F19 | 5304535831 | Transformer (Replaces: 5304471063) |
|
- | |||||
| F20 | 5304471276 | Sensor,temperature ,ambient |
|
$ 33.88 | |||||
| F21 | 5304476316 | Sensor,temperature ,discharge Tube ,thermistor |
|
- | |||||
| F22 | 5304512375 | Sensor,temperature ,evaporator (Replaces: 5304471383) |
|
$ 33.16 | |||||
| F23 | 5304483012 | Control Board,main Assy |
|
- | |||||
| F24 | 5304482503 | Evaporator |
|
- | |||||
| F25 | 5304482504 | Tube,capillary |
|
- | |||||
| F26 | 5304482505 | Tube,suction |
|
- | |||||
| F27 | 5304475741 | Compressor |
|
- | |||||
| F28 | 5304476255 | Tube,discharge |
|
- | |||||
| F29 | 5304476256 | Condenser |
|
- | |||||
| F3 | 5304472320 | Filter,air |
|
- | |||||
| F30 | 5304476257 | Drier-filter |
|
- | |||||
| F32 | 5304476323 | Valve,drain |
|
- | |||||
| F35 | 5304472338 | Heater Assembly,electric |
|
- | |||||
| F41 | 5304472346 | Blower Wheel,centrifugal Fan |
|
- | |||||
| F43 | 5304521142 | Motor,fan (Replaces: 5304482882) |
|
- | |||||
| F44 | 5304538708 | Fan Blade,axial Flow (Replaces: 5304472356) |
|
$ 50.16 | |||||
| F5 | 5304472336 | Louver,horizontal |
|
- | |||||
| F57 | 5304484144 | Tube,condensate Evap ,drain Pan |
|
- | |||||
| F6 | 5304472337 | Louver,vertical |
|
- | |||||
| F7 | 5304472347 | Handle,vent Control |
|
- | |||||
| F8 | 5304472348 | Link,lever/vent Door ,detente |
|
- | |||||
| F9 | 5304472349 | Door,vent Control ,with Lever |
|
- |
