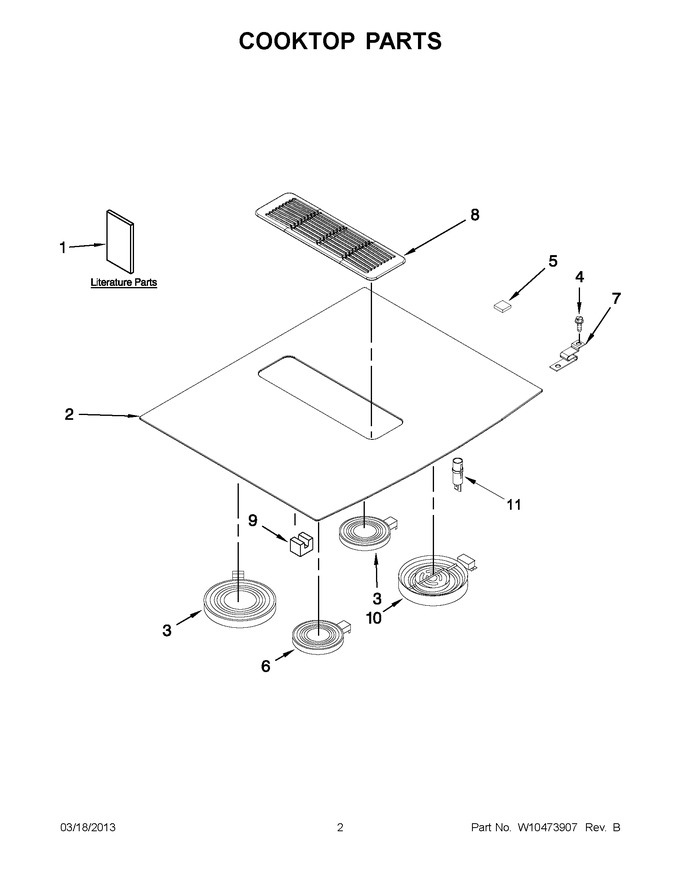

01 - Cooktop Parts
02 - Control Panel Parts
03 - Blower Assembly
04 - Chassis Parts
05 - Internal Oven Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1 | W10394698 | Diagram, Wiring (french) |
|
- | |||||
| 1 | W10394690 | Diagram, Wiring (english) |
|
- | |||||
| 1 | W10430955 | Instructions, Intallation |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10430926 | Guide, Use & Care |
|
- | |||||
| 2 | W10235919 | Cooktop (black) |
|
$ 509.62 | |||||
| 3 | W11171119 | Element (1200w) (left Front & Right Rear) (Replaces: 8273994) |
|
Immediately | $ 225.62 | ||||
| 4 | WP7101P498-60 | Screw (Replaces: 7101P498-60) |
|
$ 7.86 | |||||
| 5 | 8010P152-60 | Spacer, Rubber (1/8 X 1/2 X 1/2) |
|
- | |||||
| 6 | WPW10275049 | Element (2500/1200w) (left Rear) (Replaces: W10275049) |
|
Immediately | $ 347.53 | ||||
| 7 | 8004P093-60 | Support, Element |
|
$ 10.61 | |||||
| 8 | 7772P050-60 | Grill, Air |
|
- | |||||
| 9 | 8255P412-60 | Block, Element Support |
|
$ 31.52 | |||||
| 10 | WPW10423408 | Element (3000/1400w) (right Front) (Replaces: W10423408) |
|
Immediately | $ 388.36 | ||||
| 11 | 7407P193-60 | Light, Indicator |
|
$ 77.76 |
