Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3807F751-51 Support, Control Panel Appelez-nous -
2 WP59002061 Screw   (Replaces: 7101P077-60) Special Order $ 8.18

3 W10236210 Panel, Control W/ Overlay (black) Special Order $ 472.58

3 W10236218 Panel, Control W/ Overlay (white) Special Order $ 312.31

4 WP98008545 Screw (black)   (Replaces: 7101P633-60) Special Order $ 18.60

4 WP98008544 Screw (white)   (Replaces: 7101P636-60) Special Order $ 13.87

5 W10255424 Knob (black) Special Order $ 34.81

5 W10255423 Knob (white) Appelez-nous -
6 3604F446-45 Shield, Vent Appelez-nous -
7 WP8507P236-60 Control, Eoc Iii   (Replaces: 8507P236-60) Special Order $ 411.11


    View Diagram in Separate Window     Print Icon   Print Part List

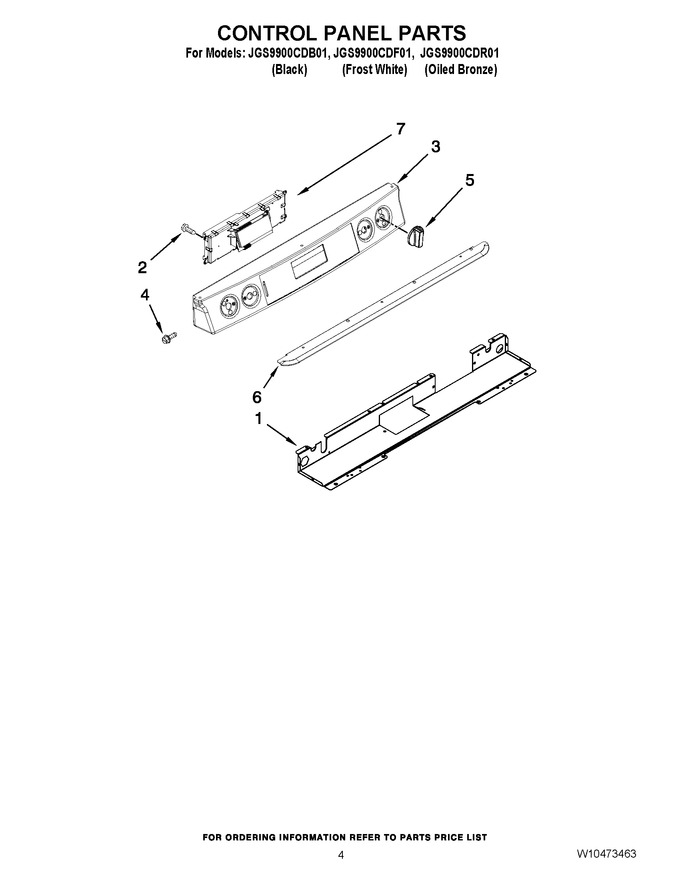

Diagram for JGS9900CDB01
