SELECT A DIAGRAM

01 - Cooktop Parts


02 - Blower Unit Parts


03 - Control Panel Parts


04 - Manifold Parts


05 - Chassis Parts

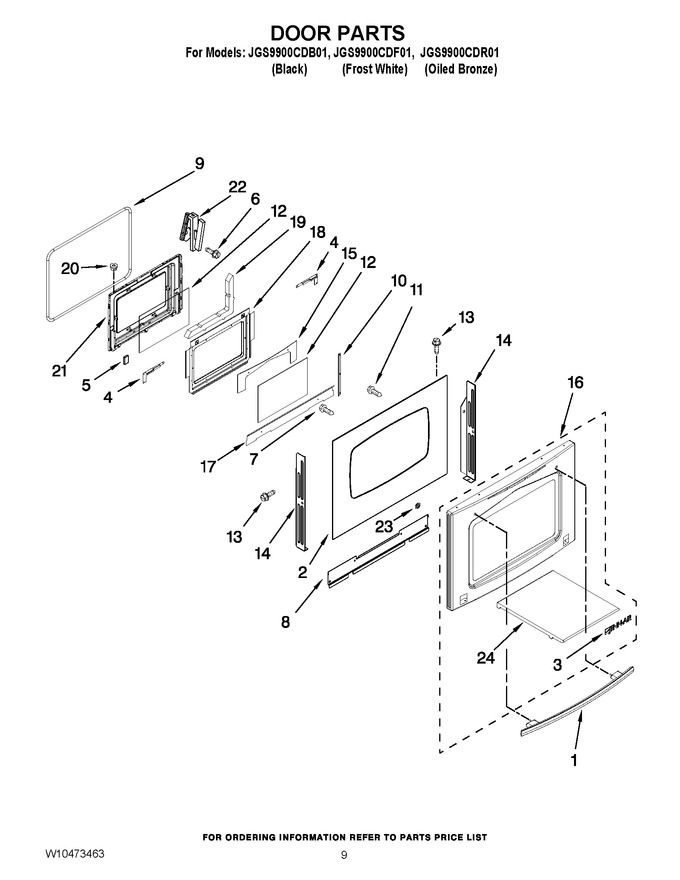

06 - Door Parts


07 - Drawer And Rack Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10223164		Handle, Door (white)				$ 261.26
1	W10223165		Handle, Door (oiled Bronze)		Appelez-nous	-
1	W10223163		Handle, Door (black)		Appelez-nous	-
2	W10357183		Glass, Door (oiled Bronze)		Appelez-nous	-
2	W10272330		Glass, Door (white)				$ 265.49
2	WPW10272332		Glass, Door (black)   (Replaces: W10272332)				$ 300.87
3	W10190723		Nameplate (white)   (Replaces: W10190708)				$ 106.62
3	W10214169		Nameplate (oiled Bronze)				$ 50.88
3	WPW10214168		Nameplate (black)   (Replaces: W10190709)				$ 81.86
4	3804F308-51		Retainer, Glass (left)		Appelez-nous	-
4	3804F307-51		Retainer, Glass (right)				$ 109.75
5	7109P082-60		Spacer, Rubber		Appelez-nous	-
6	WP4159193		Screw   (Replaces: 7101P282-60)				$ 4.77
7	WP90767		Screw, Handle   (Replaces: 7101P426-60)			Immediately	$ 7.82
8	3804F317-80		Support, Glass				$ 65.61
9	WPW10162384		Gasket, Door   (Replaces: W10162384)			Immediately	$ 86.23
10	3801F886-51		Bracket, Glass				$ 38.25
11	W11347848		Screw   (Replaces: 7101P376-60)				$ 13.55
12	74003645		Glass, Inner   (Replaces: 7902P436-60)			Immediately	$ 180.59
13	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.95
14	3608F138-71		Trim, Door (white)				$ 34.76
14	3608F138-70		Trim, Door (black)				$ 66.28
15	7002P465-60		Insulation, Door		Appelez-nous	-
16	3603F075-71		Frame, Door Assembly (white)				$ 390.67
16	W10234011		Frame, Door Assembly (oiled Bronze, Overlay)		Appelez-nous	-
16	3603F075-70		Frame, Door Assembly (black)				$ 187.06
17	3604F418-51		Shield, Door				$ 77.46
18	3601F373-51		Baffle, Door				$ 271.36
19	7002P246-60		Insulation, Door				$ 58.49
20	WP74001574		Nut, Snap (black)   (Replaces: 7103P141-60)			Immediately	$ 11.01
20	WP7103P114-60		Nut, Snap (white)   (Replaces: 7103P039-60)				$ 10.99
21	2402W312-19		Lining, Door				$ 144.50
22	74011475		Hinge, Door   (Replaces: 7106P143-60)			Immediately	$ 130.52
23	7109P082-60		Washer		Appelez-nous	-
24	W10331048		Bracket, Glass		Appelez-nous	-
