01 - Lower Cabinet And Front Panel Parts

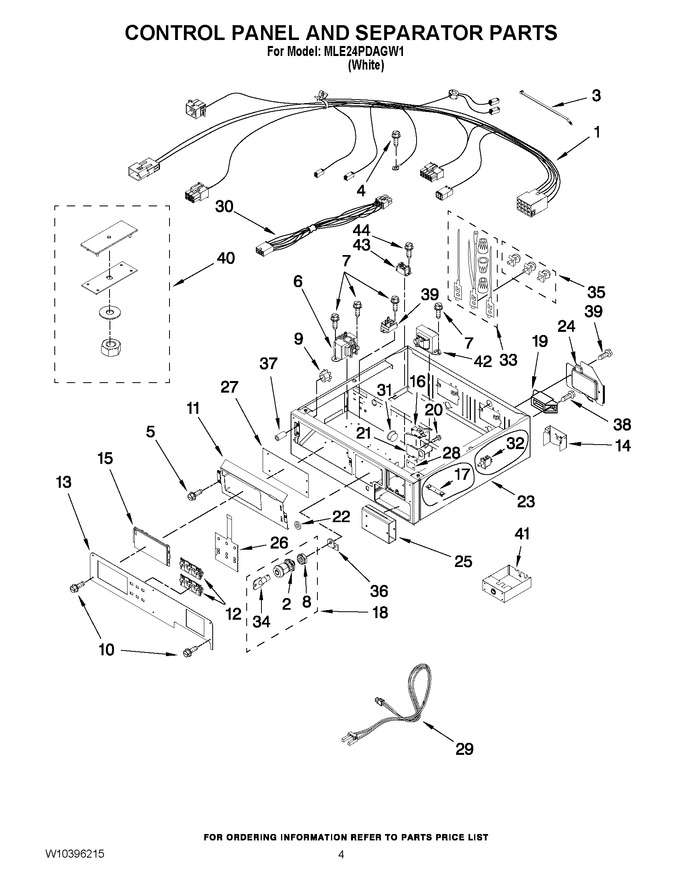

02 - Control Panel And Separator Parts


03 - Upper Cabinet And Front Panel Parts


04 - Upper And Lower Bulkhead Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10169691		Harness, Collar		Appelez-nous	-
2	W11395752		Hex Nut, 3/4-27   (Replaces: W10139762)				$ 13.69
3	WPW10155270		Tie Cable   (Replaces: 8529895)				$ 7.02
4	W10850756		Screw   (Replaces: 697776)				$ 8.20
5	W10756178		Screw   (Replaces: W10140652)				$ 6.29
6	W10237957		Transformer 120 - 22.5 Vac		Appelez-nous	-
7	WP90767		Screw, 8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
8	WPW10133264		Hex-nut 9/32 - 28   (Replaces: W10177242)				$ 145.97
9	WPW10139046		Nut 6-32   (Replaces: W10139046)				$ 9.23
10	WPW10131119		Screw   (Replaces: W10131119)				$ 7.30
11	W10163677		Plate, Control Mounting		Appelez-nous	-
12	WPW10424308		Push Button   (Replaces: W10131113)			Immediately	$ 21.44
13	W10135192		Facia Console		Appelez-nous	-
14	W10192090		Bracket, Terminal Block				$ 108.39
15	WPW10133268		Cover, Display   (Replaces: W10133268)				$ 73.93
16	W10133281		Switch, Service Access		Appelez-nous	-
17	W10159907		Mounting Strap Assembly		Appelez-nous	-
18	WPW10133264		Lock Assembly   (Replaces: W10133264)				$ 145.97
19	W11690172		Terminal-block   (Replaces: W10237321)				$ 397.70
20	3400408		Screw		Appelez-nous	-
21	W10160652		Bracket-switch		Appelez-nous	-
22	2006252		Washer, Nylon		Appelez-nous	-
23	WPW10159849		Collar   (Replaces: W10159849)				$ 543.31
24	W10684155		Cover, Terminal Block   (Replaces: W10196677)		Appelez-nous	-
25	W11204020		Vault-body Assembly   (Replaces: W10133258)				$ 421.72
26	WPW10133278		Membrane Switch Assembly   (Replaces: W10133278)				$ 122.19
27	WPW10167611		Control Board   (Replaces: W10167611)				$ 439.61
28	W10151156		Shield, Sensor Switch		Appelez-nous	-
29	W10226074		Coin-optic Sensor Assembly		Appelez-nous	-
30	W10111027		Jumper, Transformer				$ 48.10
31	W10165297		Snap Bushing		Appelez-nous	-
32	W11123448		Switch, Vault & Service Door   (Replaces: W10133289)		Appelez-nous	-
33	279318		Terminal Brass Tinned (3) (includes Item. 35 )			Immediately	$ 106.04
34	WPW10140858		Key, Access Door   (Replaces: W10140858)			Immediately	$ 22.10
35	279393		Terminal-block Screw Kit (for Terminal Block			Immediately	$ 55.66
36	W10233256		Locking Cam				$ 77.22
37	W11117166		Standoff, Circuit Board   (Replaces: W10133514)		Appelez-nous	-
38	W11676450		Screw   (Replaces: 3400000)				$ 14.76
39	W10133335		Relay-spt				$ 40.14
40	W11416034		Kit-coin Box Security   (Replaces: W10169579)				$ 132.30
41	W11204019		Coin-box   (Replaces: W10133248)				$ 163.85
42	W10237958		Transformer 240 - 120 Vac		Appelez-nous	-
43	W11553481		Relay, Heater   (Replaces: W10258680)		Appelez-nous	-
44	WP489464		Screw   (Replaces: W10080700)			Immediately	$ 8.38
