View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts

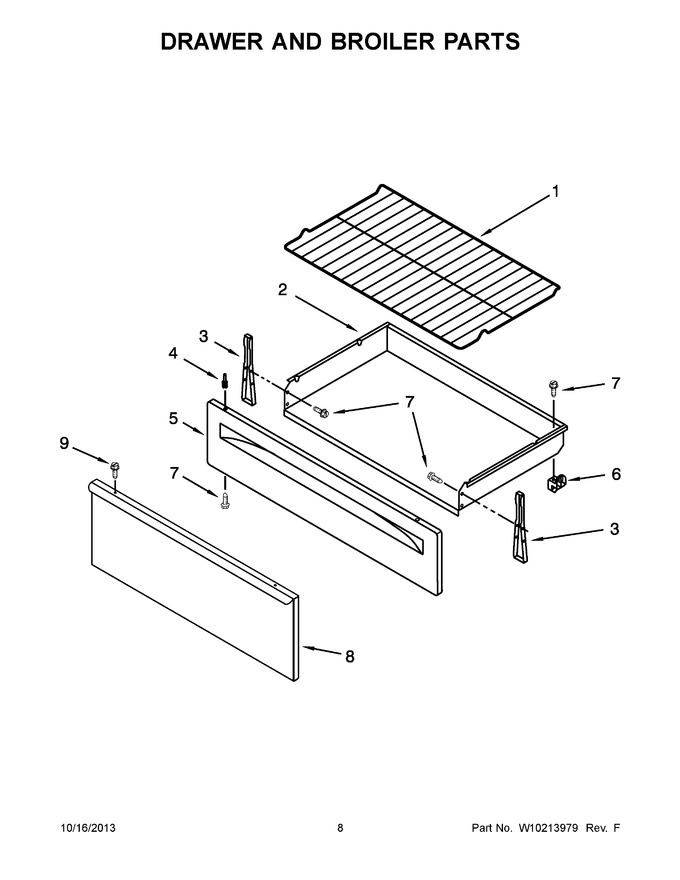

05 - Drawer And Broiler Parts
06 - Door Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (Replaces: W10268578) |
|
Immediately | $ 46.84 | ||||
| 2 | W10296838 | Drawer |
|
- | |||||
| 3 | WPW10462912 | Bracket, Mounting (white) (Replaces: W10174396) |
|
Immediately | $ 133.76 | ||||
| 3 | W10838990 | Bracket, Mounting (ss Model) (Replaces: 9758200) |
|
Immediately | $ 88.95 | ||||
| 4 | WP3196814 | Rivet, Push (white) (Replaces: 3196814) |
|
Immediately | $ 11.07 | ||||
| 4 | WP3196813 | Rivet, Push (black) (Replaces: 3196813) |
|
Immediately | $ 11.20 | ||||
| 5 | W11219377 | Drawer Front (white) (Replaces: 8053339) |
|
$ 212.57 | |||||
| 5 | W11230488 | Drawer Front (black) (Replaces: 8053341) |
|
$ 212.44 | |||||
| 6 | WP8053334 | Glide, Drawer (Replaces: 8053334) |
|
Immediately | $ 7.84 | ||||
| 7 | WP3400832 | Screw (black) (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 8 | W10237657 | Panel, Drawer (ss Model) |
|
$ 116.43 | |||||
| 9 | 7101P364-60 | Screw (ss Model) |
|
- |
