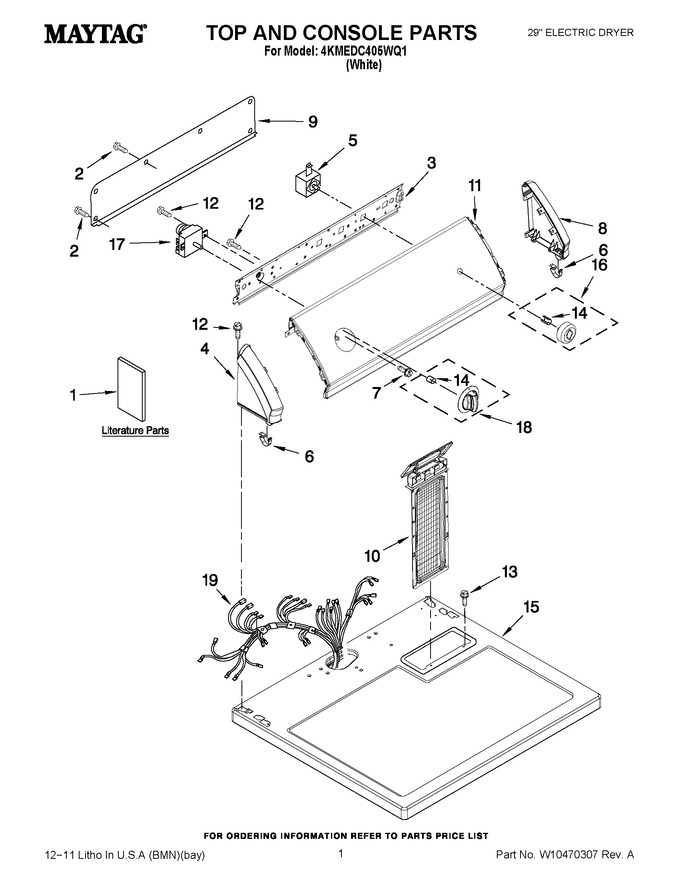

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10396178 | Wiring Diagram |
|
- | |||||
| 1 | W10131619 | Guide, Use & Care (english) |
|
- | |||||
| 1 | W10131620 | Guide, Use & Care (arabic) |
|
- | |||||
| 1 | W10115531 | Sheet, Cycle Feature |
|
- | |||||
| 2 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 3 | 8559772 | Bracket, Control |
|
- | |||||
| 4 | WP8559502 | Cap, End (l.h.) (Replaces: 8559502) |
|
$ 72.99 | |||||
| 5 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 26.66 | ||||
| 6 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.59 | ||||
| 7 | 3400859 | Screw, Grounding (Replaces: 8533951) |
|
$ 13.88 | |||||
| 8 | WP8559501 | Cap, End (r.h.) (Replaces: 8559501) |
|
$ 72.77 | |||||
| 9 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 135.31 | |||||
| 10 | W11778253 | Screen, Lint (Replaces: 8557857) |
|
Immediately | $ 54.63 | ||||
| 11 | W10115462 | Panel, Control |
|
- | |||||
| 12 | WP90767 | Screw, 8-18 X 5/16 (Replaces: 3348629) |
|
Immediately | $ 8.25 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | WP8536939 | Clip, Spring (motor) (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 15 | WP8563663 | Top (Replaces: 8559800) |
|
Immediately | $ 349.25 | ||||
| 16 | 3956790 | Knob, Push-to-start |
|
$ 74.10 | |||||
| 17 | WP8299781 | Timer, 60 Hz. (Replaces: 8299781) |
|
Immediately | $ 380.55 | ||||
| 18 | 8571409 | Timer Knob Assembly |
|
$ 36.91 | |||||
| 19 | W10386309 | Harness, Wiring |
|
- |
