01 - Top And Console Parts

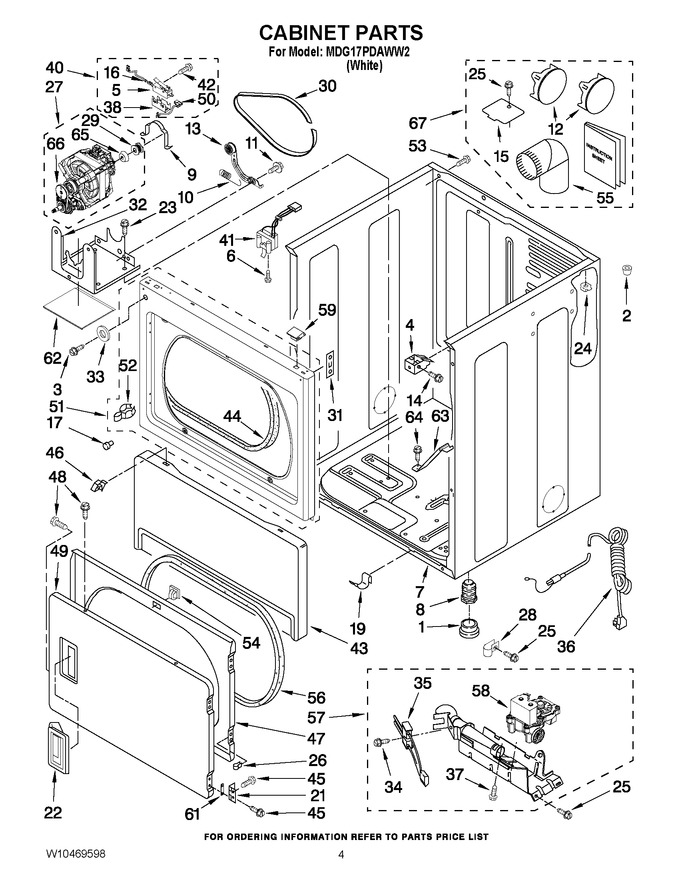

02 - Cabinet Parts
03 - Bulkhead Parts
04 - Burner Assembly
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3391943 | Boot, Foot (Replaces: 3391943) |
|
$ 8.21 | |||||
| 2 | 356674 | Cone Wedge |
|
$ 33.19 | |||||
| 3 | WP3400077 | Screw (Replaces: 3400077) |
|
$ 7.29 | |||||
| 4 | 3391846 | Clip, Front Panel |
|
$ 22.21 | |||||
| 5 | WP8564010 | Switch, Broken Belt (Replaces: 8564010) |
|
$ 104.11 | |||||
| 6 | WP3395530 | Screw (Replaces: 697773) |
|
$ 8.57 | |||||
| 7 | W11417441 | Cabinet (Replaces: 8310656) |
|
$ 440.17 | |||||
| 8 | 49621 | Foot, Dryer (plastic) (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 8.22 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 25.80 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | W10470674 | Plug, Multivent (Replaces: 697750) |
|
Immediately | $ 76.65 | ||||
| 13 | WPW10344192 | Idler Assembly (Replaces: W10344192) |
|
Immediately | $ 94.57 | ||||
| 14 | 681615 | Screw (Replaces: 3391915) |
|
$ 14.57 | |||||
| 15 | WPW10354249 | Plate, Cover (Replaces: 3394331) |
|
$ 9.41 | |||||
| 16 | W10167613 | Wire, Belt Switch |
|
- | |||||
| 17 | 693152 | Bumper |
|
$ 11.51 | |||||
| 19 | WPW10291934 | Clip (Replaces: W10291934) |
|
$ 8.14 | |||||
| 21 | WPW10279703 | Hinge And Pin (Replaces: W10279703) |
|
$ 75.83 | |||||
| 22 | W11209427 | Handle, Door (Replaces: W10116360) |
|
Immediately | $ 79.54 | ||||
| 23 | WP681414 | Screw (Replaces: 3390663) |
|
Immediately | $ 8.47 | ||||
| 24 | WP90406 | Cage Nut 5/16 - 18 (Replaces: 90406) |
|
$ 9.09 | |||||
| 25 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 26 | 3389249 | Nut, ``u`` |
|
- | |||||
| 27 | W11234001 | Motor Assembly 60 Hz. (Replaces: W10139766) |
|
Immediately | $ 433.87 | ||||
| 28 | 3387561 | Clamp, Pipe |
|
- | |||||
| 29 | WP8066184 | Pulley 60 Hz (Replaces: 3394341) |
|
Immediately | $ 51.02 | ||||
| 30 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 44.00 | ||||
| 31 | WP3390902 | Clip, Door Hinge (Replaces: 3390902) |
|
$ 11.67 | |||||
| 32 | W11676491 | Bracket, Motor (Replaces: W10135695) |
|
$ 134.62 | |||||
| 33 | W11089212 | Washer (Replaces: 3392186) |
|
$ 11.06 | |||||
| 34 | WPW10366705 | Screw (Replaces: 3393909) |
|
$ 7.88 | |||||
| 35 | 279311 | Ignitor (Replaces: 686590) |
|
Immediately | $ 78.90 | ||||
| 36 | W11222083 | Cord, Power (Replaces: W10440461) |
|
$ 126.62 | |||||
| 37 | WP693995 | Screw (Replaces: 3387057) |
|
Immediately | $ 7.55 | ||||
| 38 | 8564011 | Bracket, Switch |
|
$ 19.08 | |||||
| 40 | W11247665 | Switch, Assembly (Replaces: W10155571) |
|
$ 27.72 | |||||
| 41 | WPW10237959 | Door Switch Assembly (Replaces: 3406109) |
|
Immediately | $ 55.64 | ||||
| 42 | 777849 | Screw (Replaces: W10002600) |
|
$ 7.36 | |||||
| 43 | WP3406797 | Panel, Toe (includes, Item. 17) (Replaces: 697215) |
|
$ 250.25 | |||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 45 | WP488627 | Screw (Replaces: 342055) |
|
$ 8.11 | |||||
| 46 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 8.45 | ||||
| 47 | 280083 | Door, Rear (Replaces: W10323061) |
|
$ 301.37 | |||||
| 48 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 49 | W11663440 | Door, Front (Replaces: W10322546) |
|
$ 272.34 | |||||
| 50 | 8539892 | Wire-motor To-belt-switch |
|
- | |||||
| 51 | W10242810 | Front Panel (Replaces: W10192882) |
|
$ 386.67 | |||||
| 52 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 53 | W10850756 | Screw Ground (Replaces: 8533974) |
|
$ 8.20 | |||||
| 54 | 279570 | Catch, Door Assembly (Replaces: 3392538) |
|
Immediately | $ 8.89 | ||||
| 55 | 279731 | 4``-90° Elbow |
|
- | |||||
| 56 | WP3390735 | Seal, Door (Replaces: 3390735) |
|
$ 137.13 | |||||
| 57 | W11676916 | Burner Assembly 60 Hz. (refer To Pages 8 & 9 For Further Breakdown) (Replaces: W10400668) |
|
$ 284.80 | |||||
| 58 | W11676916 | Valve Gas 60 Hz. (complete) (Replaces: W10299939) |
|
$ 284.80 | |||||
| 59 | WP345670 | Lock-top (Replaces: 345670) |
|
Immediately | $ 8.09 | ||||
| 61 | W10191265 | Plug, Hinge Screw |
|
$ 46.49 | |||||
| 62 | W11113654 | Sound Pad, Motor (Replaces: W10212660) |
|
$ 23.29 | |||||
| 63 | W10181903 | Bracket, Burner (Replaces: 8529757) |
|
- | |||||
| 64 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 65 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 139.08 | ||||
| NI | WP3405160 | Dryer Exhaust Kit (for Side & Bottom Venting) (belt, Poly V) (Replaces: 3405160) |
|
Immediately | $ 36.99 | ||||
| NI | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (white) (Replaces: 279818) |
|
Immediately | $ 76.65 | ||||
| NI | 49621 | Foot - Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 |
