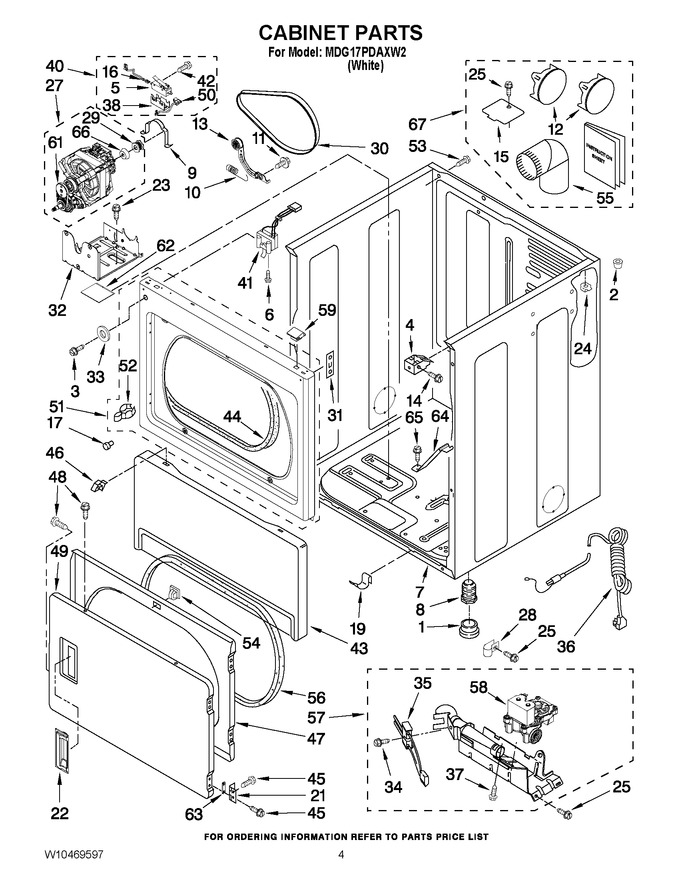

02 - Cabinet Parts


03 - Bulkhead Parts


04 - Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3391943		Boot, Foot   (Replaces: 3391943)				$ 7.82
2	356674		Cone Wedge				$ 33.19
3	WP3400077		Screw   (Replaces: 3400077)				$ 6.94
4	3391846		Clip, Front Panel				$ 21.15
5	WP8564010		Switch, Broken Belt   (Replaces: 8564010)				$ 99.15
6	WP3395530		Screw   (Replaces: 697773)				$ 7.70
7	W11417441		Cabinet   (Replaces: 8310656)				$ 419.21
8	49621		Foot, Dryer (plastic)   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.83
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 24.57
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.02
12	WPW10404617		Plug, Multivent   (Replaces: 49252)				$ 71.98
13	WPW10344192		Idler Assembly   (Replaces: W10344192)			Immediately	$ 90.07
14	681615		Screw   (Replaces: 3391915)				$ 13.88
15	WPW10354249		Plate, Cover   (Replaces: 3394331)				$ 8.96
16	W10167613		Wire, Belt Switch		Appelez-nous	-
17	693152		Bumper				$ 10.96
19	WPW10291934		Clip   (Replaces: W10291934)				$ 7.75
21	WPW10279703		Hinge And Pin   (Replaces: W10279703)				$ 72.22
22	W11209427		Handle, Door   (Replaces: W10116360)			Immediately	$ 75.75
23	WP681414		Screw   (Replaces: 3390663)			Immediately	$ 7.85
24	WP90406		Cage Nut 5/16 - 18   (Replaces: 90406)				$ 8.14
25	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.79
27	W11234001		Motor Assembly 60 Hz.   (Replaces: W10139766)			Immediately	$ 413.21
28	3387561		Clamp, Pipe		Appelez-nous	-
29	WP8066184		Pulley   (Replaces: 3394341)			Immediately	$ 51.02
30	WPW10131172		Belt, Drive   (Replaces: W10131172)			Immediately	$ 44.00
31	WP3390902		Clip, Door Hinge   (Replaces: 3390902)				$ 11.11
32	W11676491		Bracket, Motor   (Replaces: W10135695)				$ 125.84
33	W11089212		Washer   (Replaces: 3392186)				$ 9.67
34	WPW10366705		Screw   (Replaces: 3393909)				$ 7.50
35	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
36	W11222083		Cord, Power   (Replaces: W10440461)				$ 120.59
37	WP693995		Screw   (Replaces: 3387057)			Immediately	$ 7.19
38	8564011		Bracket, Switch				$ 18.17
40	W11247665		Switch, Assembly   (Replaces: W10155571)				$ 26.40
41	WPW10237959		Door Switch Assembly   (Replaces: 3406109)			Immediately	$ 55.64
42	777849		Screw   (Replaces: W10002600)				$ 7.01
43	WP3406797		Panel, Toe (includes, Item. 17)   (Replaces: 697215)				$ 238.33
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	WP488627		Screw   (Replaces: 342055)				$ 7.57
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
47	280083		Door, Rear   (Replaces: W10323061)				$ 287.02
48	WP694091		Screw   (Replaces: 694091)				$ 7.19
49	W11663440		Door, Front   (Replaces: W10322546)				$ 259.37
50	8539892		Wire, Jumper		Appelez-nous	-
51	W10242810		Front Panel   (Replaces: W10192882)				$ 361.07
52	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
53	W10850756		Screw Ground   (Replaces: 8533974)				$ 7.76
54	279570		Catch, Door Assembly   (Replaces: 3392538)			Immediately	$ 8.89
55	279731		4``-90° Elbow		Appelez-nous	-
56	WP3390735		Seal, Door   (Replaces: 3390735)				$ 130.60
57	W11676916		Burner Assembly 60 Hz. (refer To Pages 8 & 9 For Further Breakdown)   (Replaces: W10400668)				$ 251.18
58	W11676916		Valve Gas 60 Hz. (complete)   (Replaces: W10299939)				$ 251.18
59	WP345670		Lock-top   (Replaces: 345670)			Immediately	$ 7.70
61	WP3405160		Belt, Poly V   (Replaces: 3405160)			Immediately	$ 35.23
62	W11113654		Sound Pad, Motor   (Replaces: W10212660)				$ 22.18
63	W10191265		Plug, Hinge Screw				$ 44.28
64	W10181903		Burner, Bracket   (Replaces: 8529757)		Appelez-nous	-
65	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.19
66	WP3393657		Belt Restrainer   (Replaces: 3393657)			Immediately	$ 132.46
NI	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 76.65
NI	49621		Foot - Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
